Chauvin Arnoux Tachometer Best Accuracy ±6 Counts LCD Display 100000rpm P01174810

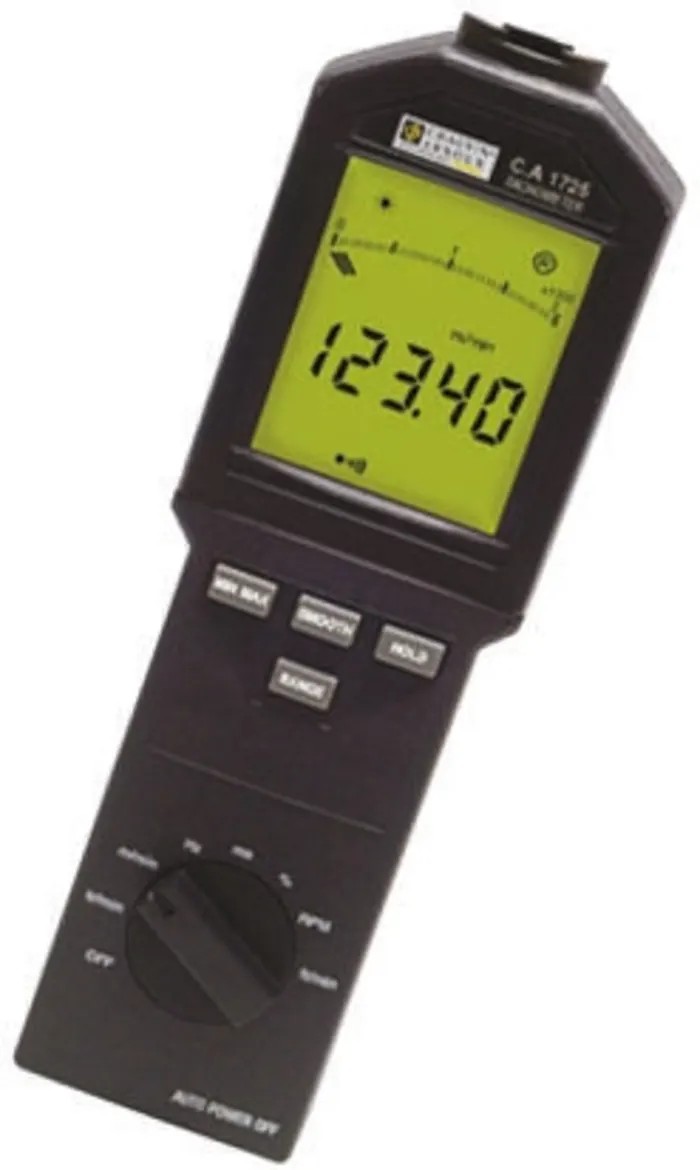

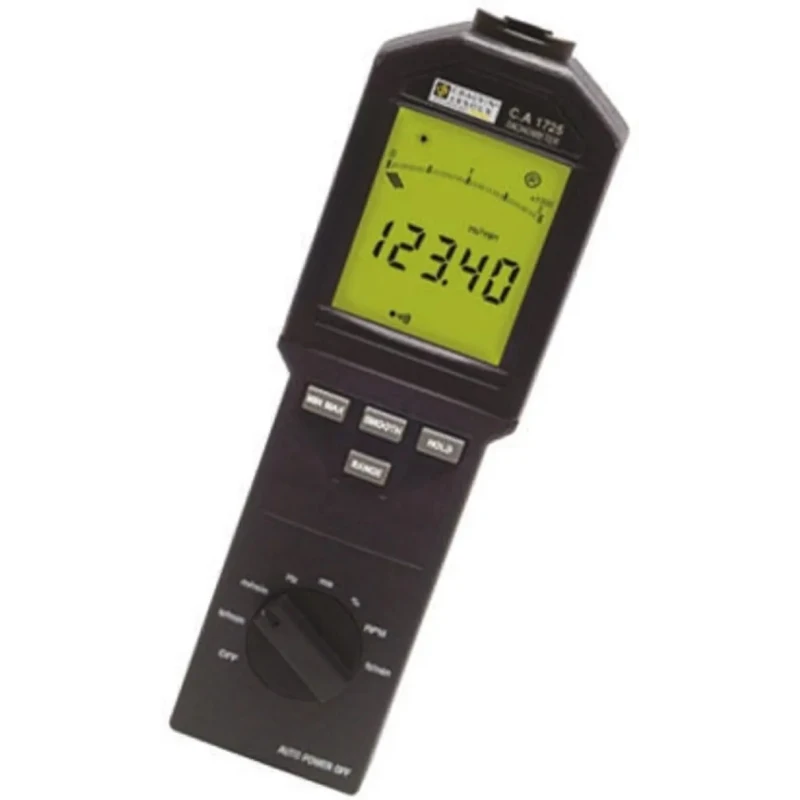

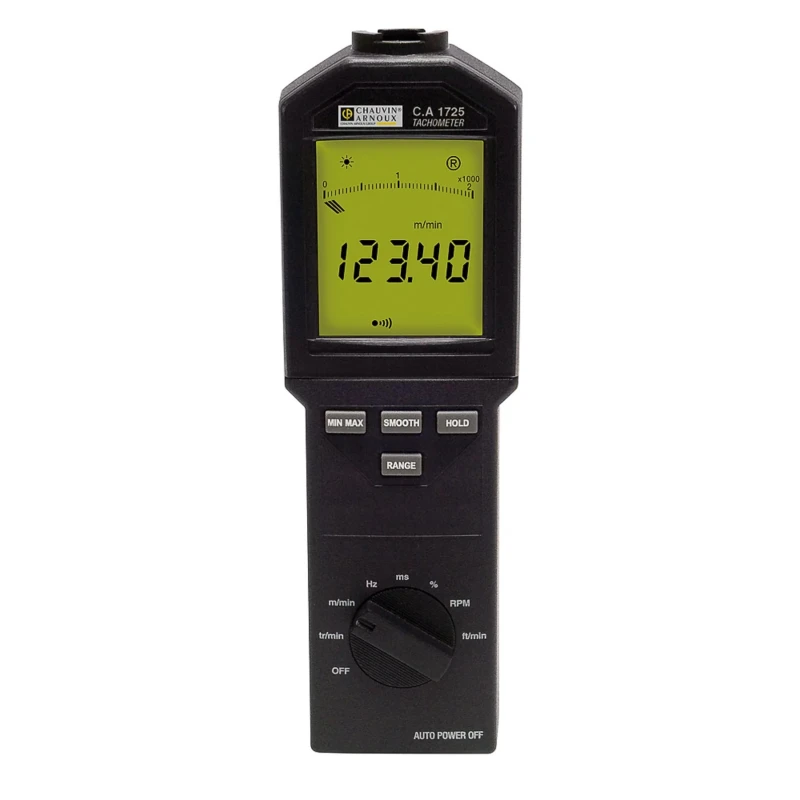

Chauvin Arnoux P01174810 Tachometer is an industrial precision instrument designed to measure rotational and linear speeds with high accuracy ±6 Counts, suitable for laboratory, industrial, and maintenance applications. It features a clear LCD display capable of measuring speeds up to 100000rpm.

This tachometer offers extensive measurement versatility with seven selectable units including rpm, meters per minute, Hertz, milliseconds, duty cycle percentages, and feet per minute. The instrument includes MIN, MAX, and HOLD measurement functions to enhance data gathering flexibility.

For enhanced stability of readings, it is equipped with the SMOOTH function that computes a rolling average of the last ten measurements. Advanced functions such as a counter and two-level alarm are available on the CA1727 model variants, allowing detection of speed thresholds.

Users can save measurement data and perform detailed analysis by connecting the tachometer via USB to a PC using the supplied TACHOGRAPH software (available only on CA1727 model).

The device operates reliably within temperatures ranging from 0°C to 55°C and features compact industrial-grade dimensions (72mm length, 216mm height, 47mm width) and a lightweight design weighing 250 grams, facilitating portability and on-site use.

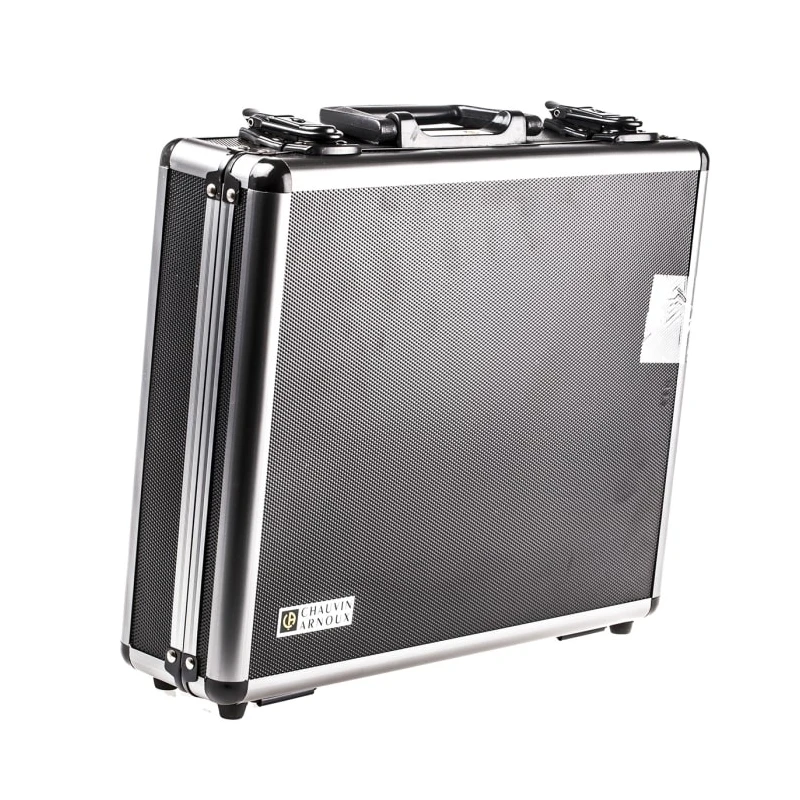

Included package components: carrying case, one FRB F connector, one 9 V battery, set of fifteen reflective films (0.1 meter length each), an operating manual, TACHOGRAPH software CD-ROM (CA1727 only), and a quick start guide.

Manufactured in France, this Chauvin Arnoux tachometer is ideal for industrial, laboratory, manufacturing, HVAC, and quality control applications requiring precise rotational speed and frequency measurements.

Explore EnvMart's Tachometer category for more high-precision measuring instruments from leading brands. This tachometer supports multiple measurement units including rpm, m/min, Hz, ms, duty cycle percentage, and ft/min.

Features MIN, MAX, and HOLD functions for flexible measurement recording. The SMOOTH function calculates a rolling average of the last 10 readings to provide stable results. Includes counter and two-level alarm functions available on model CA1727.

Data saving and analysis is possible via USB interface and TACHOGRAPH software on CA1727 models. The device operates reliably between 0°C and 55°C. Dimensions are compact with a length of 72mm, height of 216mm, and width of 47mm for easy handling.

The Tachometer weighs 250 grams, making it lightweight and portable. Powered by a 9 V battery for convenient field use.
