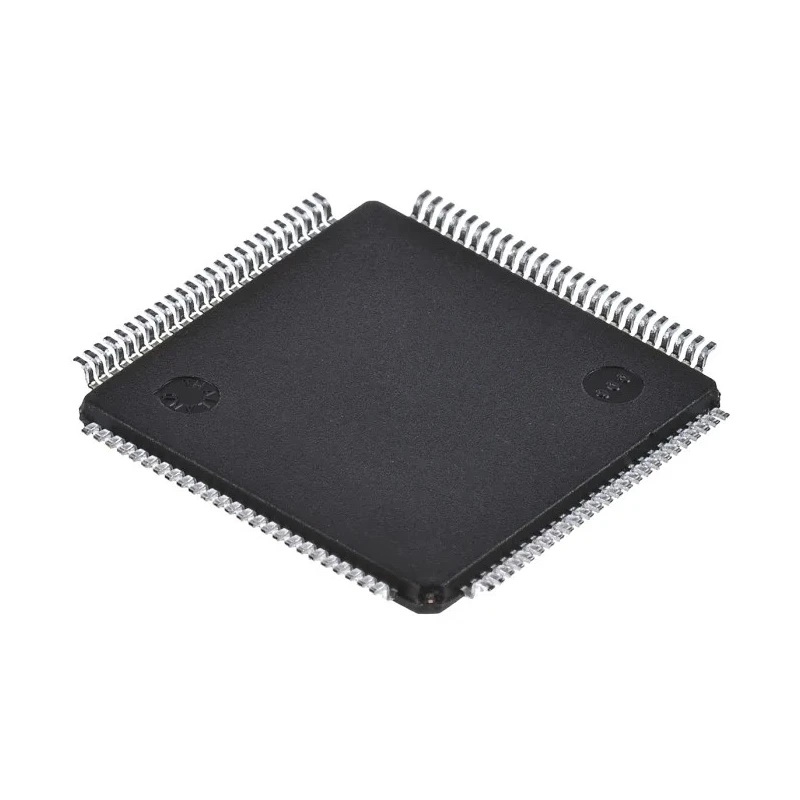

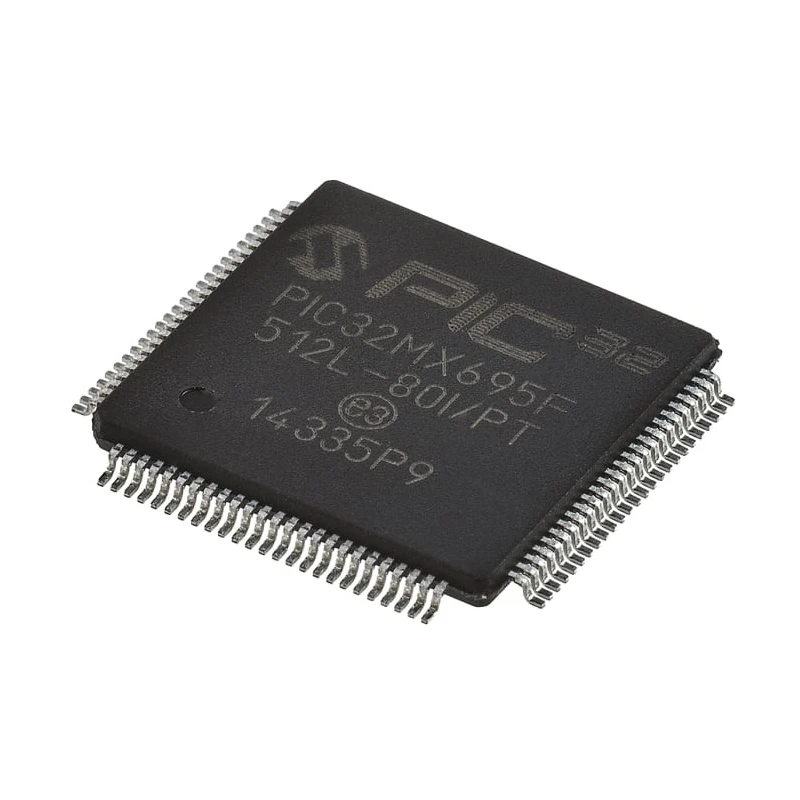

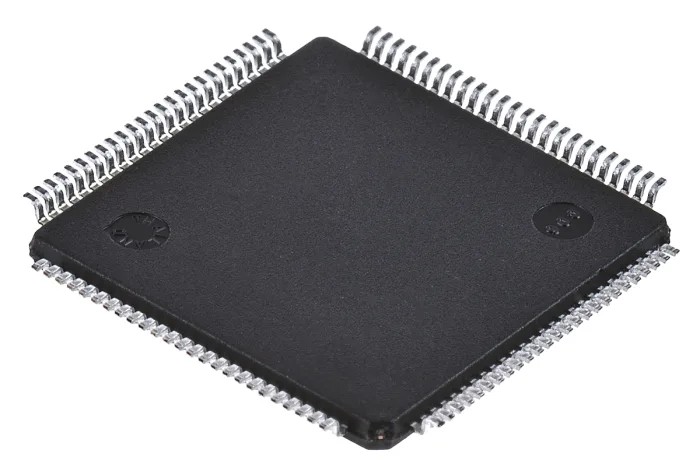

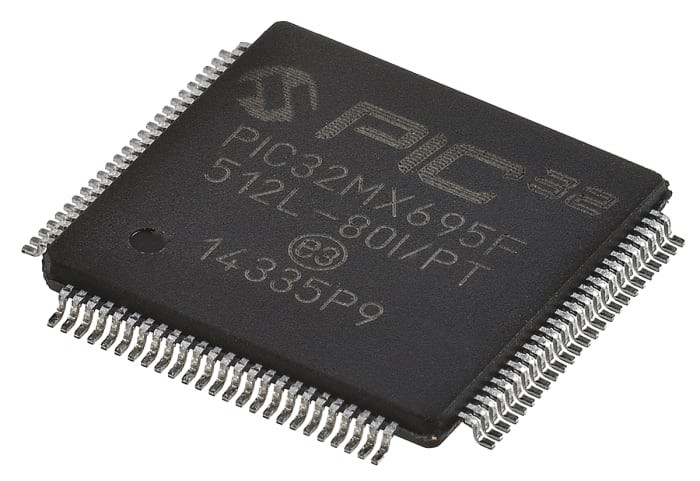

Microchip 32 bit PIC PIC32MX Microcontroller 80 MHz 12 kB RAM 512 kB FLASH 100-Pin TQFP PIC32MX695F512L-80I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 12mm |
| Model | PIC32MX695F512L-80I/PT |
| Width | 12mm |
| Mount Type | Surface |
| Series | PIC32MX |
| Maximum Operating Temperature | +85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB 2 |
| Ram size | 128kB |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 704-7696Brand: MicrochipManufacturers Part No.: PIC32MX695F512L-80I/PTDistrelec Article No.: 17387439 |
| Pin Count | 100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 12, 512kB |
| Maximum Clock Frequency | 80MHz |
| Number of Programmable I/Os | 83 |
| Analogue Comparators | 2 |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 10 Bit |
| Program Memory Type | FLASH |
| High-performance 32-bit microcontrollers designed for | High Impact Graphics/User Interfaces, Ethernet/USB/CAN Connectivity, Multitasking Embedded Control, High Performance Audio |
Key Features
- Equipped with a 32-bit MIPS32 M4K core optimized for high performance.
- Offers a maximum clock frequency of 80 MHz and low power consumption.
- Includes 16 channels of 10-bit ADCs and multiple communication interfaces.
- Supports USB 2.0 full-speed OTG, Ethernet MAC, CAN 2.0B, UART, SPI, I2C, and parallel master port.
- Operates within a wide temperature range from -40°C to +85°C.
- Surface mount TQFP package with 100 pins for compact board design.
- Suitable for industrial, automotive, and embedded control applications.
- Features advanced low-power management and safety clocks.
Product Description
Microchip PIC32MX695F512L-80I/PT is a high-performance 32-bit PIC microcontroller designed for industrial and embedded applications. Featuring a 32-bit MIPS M4K core operating at up to 80 MHz, it delivers efficient multitasking and processing capabilities.
This device includes 12 kB RAM and 512 kB FLASH memory, housed in a compact 100-Pin Thin Quad Flat Package (TQFP) suitable for surface mount technology.
The microcontroller features a broad set of peripherals including 16 channels of 10-bit ADCs, 2 analog comparators, USB 2.0 full-speed OTG controller, 10/100 Ethernet media access controller (MAC), CAN 2.0B module, six UART modules supporting 20 Mbps, multiple SPI (3 or 4) and I2C (4 or 5) modules with SMBus support, a parallel master port, and multiple timers and input/output compare modules.
Designed with industrial ruggedness, it supports operating temperatures from -40°C up to +85°C, and operates at a supply voltage range of 2.3 V to 3.6 V. It incorporates power-saving features such as fail-safe clock monitor, low-power modes, programmable PLLs, oscillator clock sources, and watchdog timer.
Applicable for embedded control, user interface graphics, network connectivity via Ethernet/USB/CAN, and high-performance audio processing, this microcontroller is ideal for complex, multitasking environments.
32-bit MIPS32 M4K core providing high computational performance. 512 kB Flash program memory and 12 kB RAM for substantial code and data storage. Comprehensive suite of peripherals including USB, Ethernet, CAN, UART, SPI, and I2C communications.
Robust industrial operating temperature range and low power management features. Compact 100-Pin TQFP surface mount package for space-efficient PCB layouts. Advanced real-time clock and calendar module for time-critical applications.
Microchip products are widely trusted in embedded design and industrial applications. Explore more Microcontrollers and electronic components at EnvMart to meet diverse project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC32MX695F512L-80I/PT is 80 MHz.
This microcontroller features 12 kB of RAM and 512 kB of FLASH memory.
It supports multiple communication interfaces including USB 2.0, Ethernet MAC, CAN 2.0B, UART, SPI, I2C, and a parallel master port.
The operating temperature range for this model is from -40°C to +85°C.
It comes in a 100-Pin Thin Quad Flat Package (TQFP).
This model includes 16 channels of 10-bit ADCs.
The minimum supply voltage is 2.3 V, and the maximum supply voltage is 3.6 V.
There are 83 programmable I/Os available on this model.
It is suitable for high-impact graphics, user interfaces, Ethernet/USB/CAN connectivity, multitasking embedded control, and high-performance audio.
The microcontroller includes features such as fail-safe clock monitor, low-power modes, programmable PLLs, oscillator clock sources, and a watchdog timer.
The dimensions are 1.05 mm in height, 12 mm in length, and 12 mm in width.
The instruction set architecture of the PIC32MX695F512L-80I/PT is RISC.
