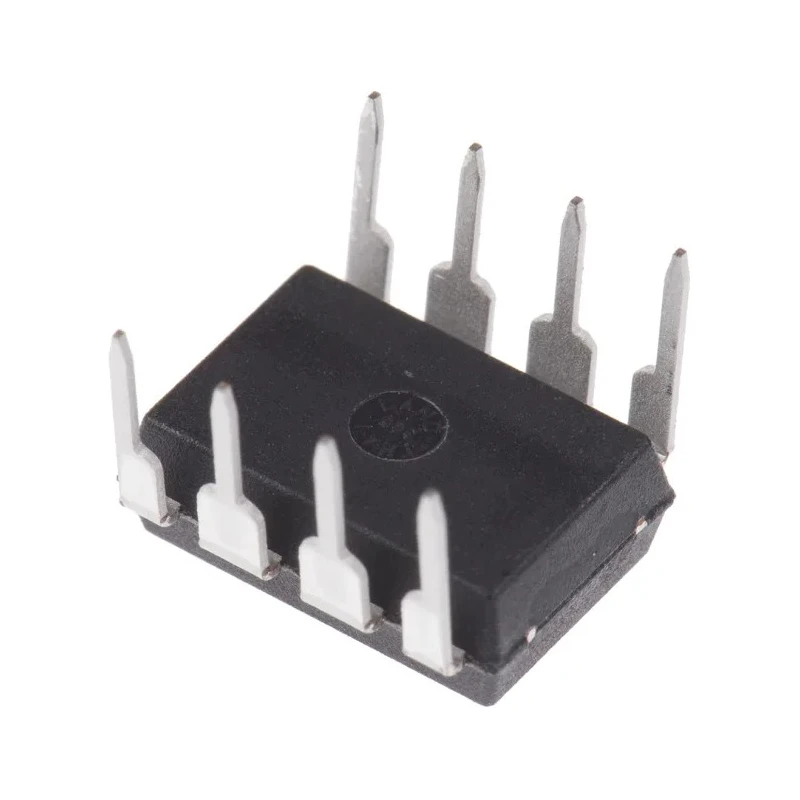

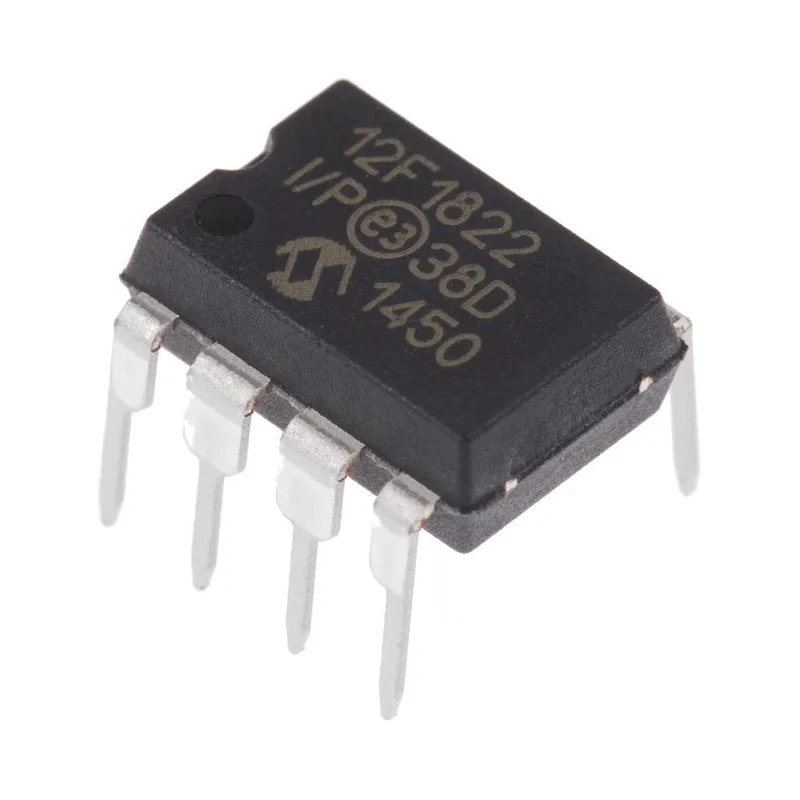

Microchip PIC12F1822-I/P 8 bit PIC Microcontroller 32 MHz 256bit FLASH 8-Pin PDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 10.16mm |
| Model | PIC12F1822-I/P |
| Width | 0.28in |
| Mount Type | Through Hole |
| Series | PIC12F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 128bit |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 703-7888Brand: MicrochipManufacturers Part No.: PIC12F1822-I/P |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 256bit |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 6 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 8bit |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 4 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Utilizes a PIC device core with 49 RISC instructions.
- Operates with a maximum supply voltage of 5.5V and minimum supply of 1.8V.
- Provides 6 programmable I/O pins and 128bit RAM size.
- Equipped with four 10-bit ADC channels and two analogue comparators.
- Includes 3 timers, ECCP modules, and MSSP supporting SPI and I2C communication.
- Supports in-circuit serial programming and has extreme low power technology.
- Operates reliably between -40°C to 85°C.
- Compact size with length 10.16mm, height 4.95mm, width 0.28 inch.
Product Description
Microchip PIC12F1822-I/P is a high-performance 8 bit PIC microcontroller designed for embedded applications requiring compact size and efficient operation. It features a 32 MHz maximum clock frequency and 256bit FLASH program memory in an 8-Pin PDIP through-hole package, making it suitable for easy integration and prototyping.
This MCU is based on Microchip's enhanced mid-range core which supports 49 RISC instructions and a deep hardware stack of 16 levels, providing effective instruction efficiency and program control. The device incorporates 128bit RAM for quick data access and supports up to 6 programmable input/output pins for flexible interfacing.
It provides four 10-bit analog to digital converters (ADC), 2 analogue comparators, and capacitive sensing module (mTouch™ for touch applications). The device integrates multiple timers, capture/compare PWM modules (ECCP), and a master synchronous serial port (MSSP) supporting both SPI and I2C protocols for versatile communication.
Designed to operate at voltages from 1.8V to 5.5V, the PIC12F1822-I/P maintains extreme low power consumption through XLP technology, making it ideal for battery-powered and power-sensitive applications. Operating temperature range is -40°C to +85°C, suitable for demanding environments.
The compact 8-pin PDIP package with dimensions approximately 10.16mm x 4.95mm x 0.28 inch is ideal for space-saving electronics projects and embedded system solutions. The microcontroller supports in-circuit serial programming (ICSP) simplifying software development and updates.
Utilizes PIC enhanced mid-range core with 49 instructions and 16-level stack. Maximum clock frequency of 32 MHz with internal RC oscillator. Program memory size 256bit FLASH with RAM size 128bit. Provides 6 programmable I/O pins, 4 x 10-bit ADC inputs, and 2 analogue comparators.
Includes multiple timers, ECCP modules, MSSP for SPI/I2C communication. Supports in-circuit serial programming (ICSP) and extreme low power operation (XLP). Operating voltage from 1.8V minimum to 5.5V maximum. Temperature range from -40°C to 85°C and compact 8-Pin PDIP package.
This microcontroller is widely used in industrial control systems, consumer electronics, automotive subsystems, and embedded system projects requiring low power and high integration. Its features make it suitable for a broad range of applications including sensors, motor control, and human interface devices.
Explore the Microchip Microcontrollers category in EnvMart for more embedded system components and development tools.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this model is 32 MHz.
It operates with a supply voltage ranging from 1.8V to 5.5V.
This microcontroller provides 6 programmable I/O pins for flexible interfacing.
The program memory size is 256 bits of FLASH.
It supports SPI and I2C communication protocols through its master synchronous serial port (MSSP).
It operates reliably between -40°C to +85°C.
The dimensions of this microcontroller are approximately 10.16mm in length, 4.95mm in height, and 0.28 inches in width.
The PIC12F1822-I/P includes four 10-bit ADC channels.
It has a RAM size of 128 bits.
The microcontroller comes in an 8-Pin PDIP (Plastic Dual In-line Package) package type.
This model includes 3 timers for various timing functions.
It utilizes a PIC device core based on RISC architecture with 49 instructions.
