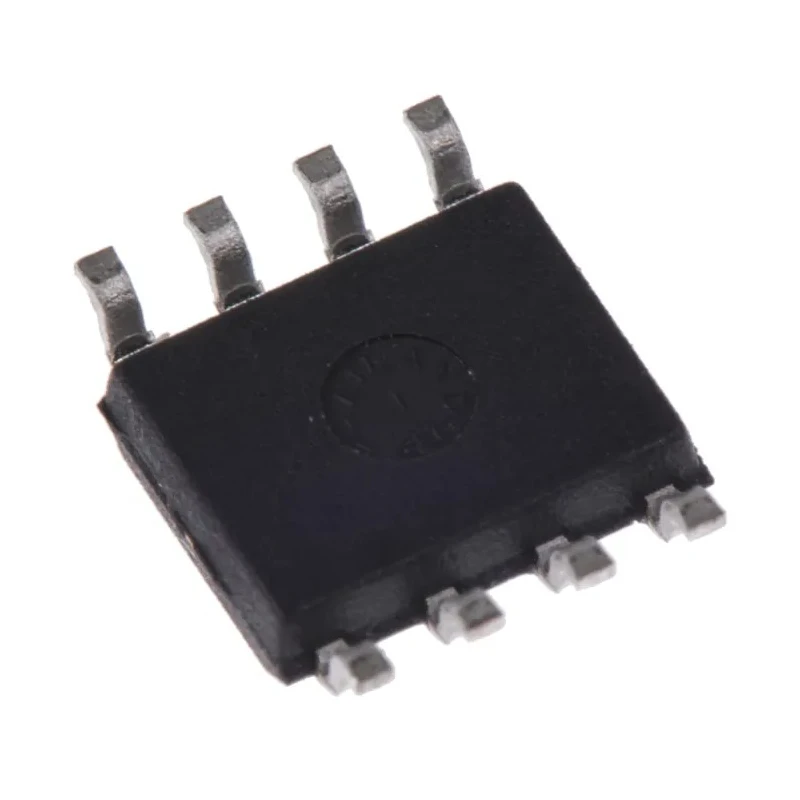

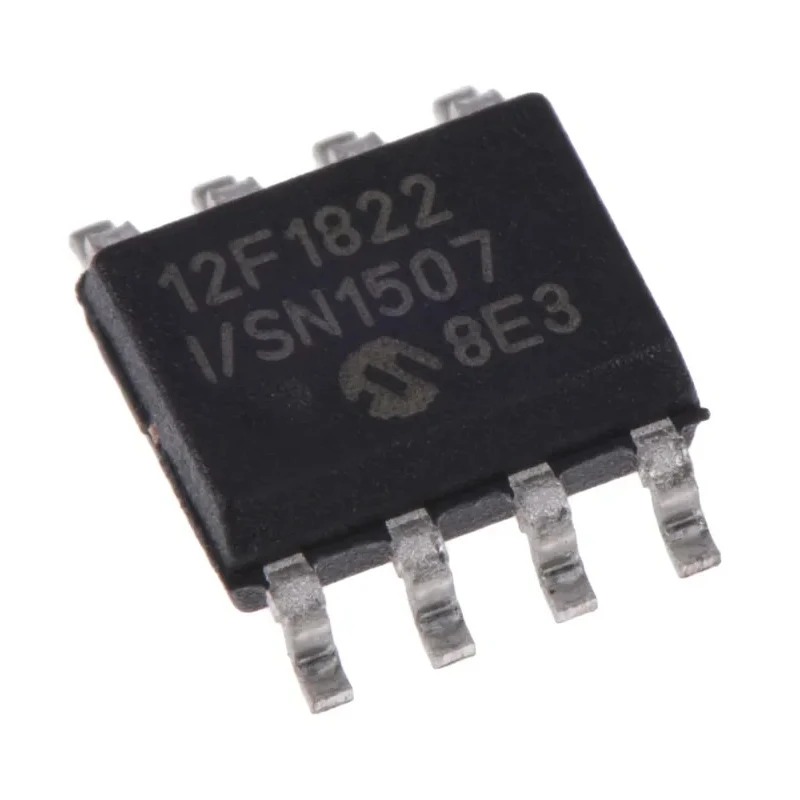

Microchip 8 Bit PIC12 Microcontroller 32 MHz 256B FLASH 8-Pin SOIC PIC12F1822-I/SN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 4.9mm |
| Model | PIC12F1822-I/SN |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | PIC12 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 128bit |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 703-7885Brand: MicrochipManufacturers Part No.: PIC12F1822-I/SNDistrelec Article No.: 30121016 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 256B |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 6 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 8bit |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 4 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Equipped with 256 bytes of program memory and 128 bits of RAM for reliable processing.
- Operates at a maximum frequency of 32 MHz with RISC architecture.
- Features 6 programmable I/O pins and 4 channels of 10-bit ADC.
- Supports low voltage operation from 1.8 V to a maximum of 5.5 V.
- Includes multiple timers and analogue comparators for advanced functionality.
- Compact 8-pin SOIC surface-mount package with dimensions 4.9 mm x 3.9 mm x 1.5 mm.
- Wide operating temperature range from -40 °C to 85 °C for industrial use.
- Incorporates Extreme Low Power (XLP) technology for energy-efficient performance.
Product Description
Microchip PIC12F1822-I/SN is an 8 Bit PIC12 microcontroller designed for a variety of electronic and embedded applications. It operates at a maximum clock speed of 32 MHz and includes 256 bytes of flash program memory with 128 bits of RAM. The 8-pin SOIC surface-mount package offers a compact footprint measuring 4.9 mm in length, 3.9 mm in width, and 1.5 mm in height, making it suitable for space-constrained designs.
This microcontroller features 6 programmable input/output pins and four 10-bit analogue-to-digital converter channels, enabling precise sensor interfacing. The device supports low voltage operation down to 1.8 V, with a maximum supply voltage of 5.5 V, and functions reliably across a temperature range of -40 °C to 85 °C, ideal for industrial and automotive environments without automotive certification.
The internal architecture is based on Microchip's RISC instruction set with 49 instructions and a 16-level hardware stack, optimized for efficient code execution and low power consumption using the Extreme Low Power (XLP) technology. It includes two 8-bit timers, one 16-bit timer, analogue comparators, master synchronous serial port with SPI and I2C support, and In Circuit Serial Programming (ICSP) capabilities for easy firmware updates.
Applications include embedded controls, sensor interfacing, and small-scale automation where low power and compact size are critical. Its configurable internal oscillator provides flexibility between 31 kHz and 32 MHz clock outputs.
256 bytes program memory and 128 bits RAM for efficient processing. 6 programmable I/O pins support versatile interfacing. Four-channel 10-bit ADC for analog sensor inputs. Wide voltage range (1.8 V to 5.5 V) supports various power environments.
Operating temperature range from -40 °C to 85 °C ensures durability. Compact SOIC 8-pin surface-mount package suitable for small devices. Integrated timers and communication interfaces enhance control and connectivity.
Explore a broad range of Microchip microcontrollers and related semiconductor components in the Electronics & Electricals Microcontrollers category at EnvMart for industrial, laboratory, and commercial electronics development.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This microcontroller operates at a maximum clock frequency of 32 MHz.
It features a program memory size of 256 bytes.
This microcontroller supports a supply voltage range from 1.8 V to a maximum of 5.5 V.
The PIC12F1822-I/SN includes 6 programmable I/O pins for versatile interfacing.
It comes in a compact 8-pin SOIC package with dimensions of 4.9 mm x 3.9 mm x 1.5 mm.
This model operates reliably within a temperature range of -40 °C to 85 °C.
It features four channels of 10-bit analogue-to-digital converters (ADCs).
This microcontroller includes two 8-bit timers and one 16-bit timer for various timing applications.
It is based on Microchip's RISC instruction set architecture, optimized for efficient code execution.
It has 256 bytes of flash program memory and 128 bits of RAM for processing tasks.
Yes, it supports low voltage operation down to 1.8 V, making it suitable for various power environments.
The country of origin for this microcontroller is India.
