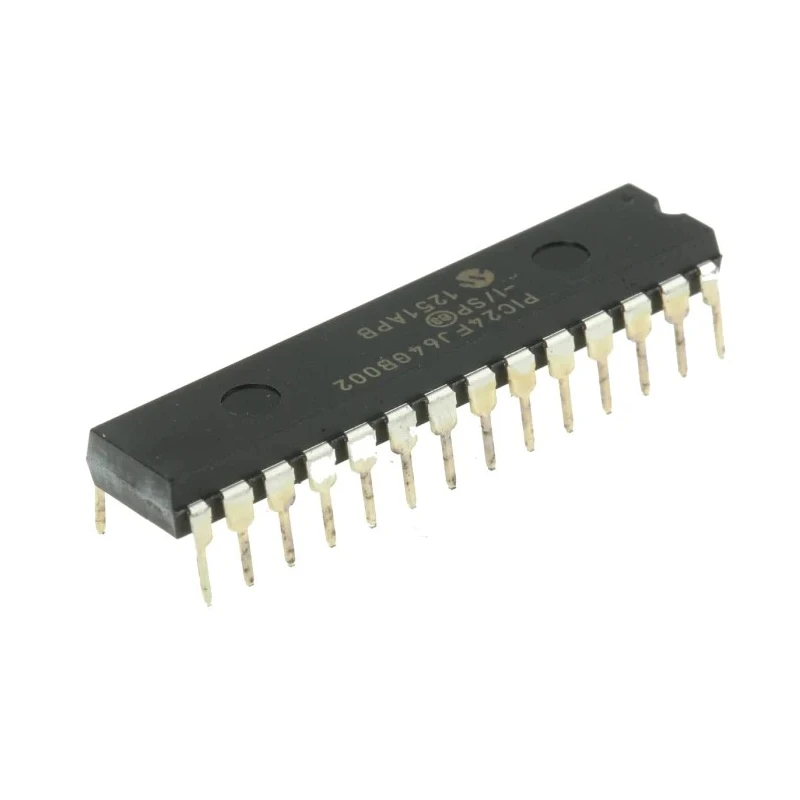

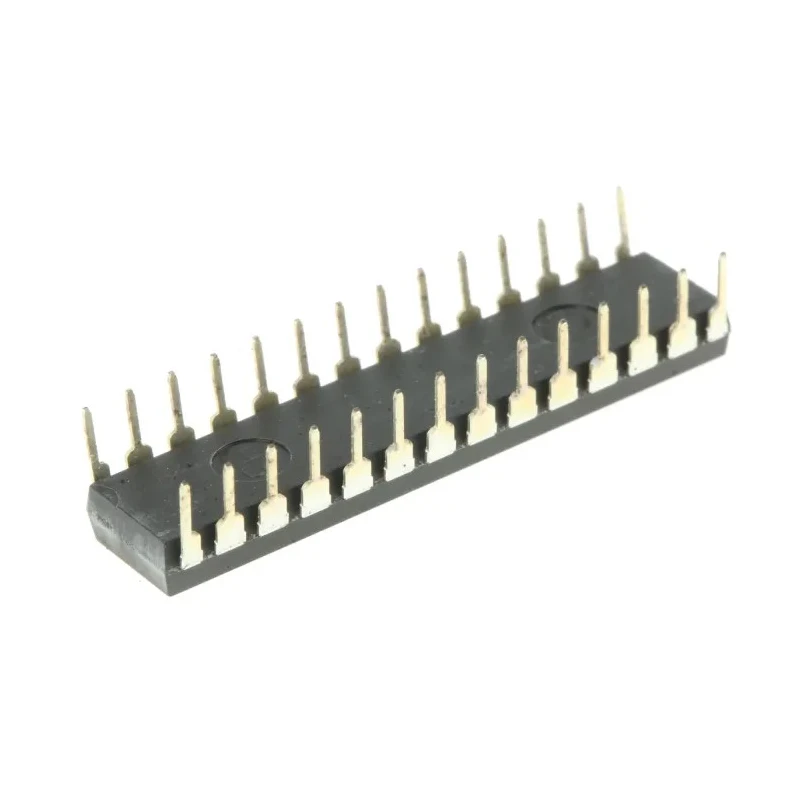

Microchip PIC24FJ64GB002-I/SP 16-bit PIC PIC24FJ Microcontroller 32 MHz 64kB FLASH 28-Pin SPDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.81mm |
| Length | 35.56mm |
| Model | PIC24FJ64GB002-I/SP |
| Width | 0.295in |
| Mount Type | Through Hole |
| Series | PIC24FJ |
| Maximum Operating Temperature | 85°C |
| Package Type | SPDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 703-7602Brand: MicrochipManufacturers Part No.: PIC24FJ64GB002-I/SP |
| Pin Count | 28 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 52 |
| Analogue Comparators | 3 |
| Maximum Expanded Memory Size | 12MB |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 9 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates with a maximum supply voltage of 3.6 volts and minimum voltage of 2 volts.
- Equipped with 8 kB RAM and 64 kB program memory for robust embedded applications.
- Offers a 16-bit data bus width and utilizes RISC instruction set architecture for efficient performance.
- Includes 52 programmable I/O pins and 5 timers for versatile control options.
- Features 9 analog-to-digital converters with 10-bit resolution.
- Designed to operate reliably from -40 to 85 degrees Celsius ambient temperature.
- Flash-based program memory enabling reprogrammability and reliable data retention.
- Compliant with RoHS standards ensuring environmental safety and quality.
Product Description
Microchip PIC24FJ64GB002-I/SP is a 16-bit PIC microcontroller designed for efficient embedded system applications. It runs at a maximum clock frequency of 32 MHz, delivering high performance while maintaining low power consumption. The device has 64 kB of FLASH memory and 8 kB of RAM, enabling complex program execution and data handling.
This microcontroller features a RISC architecture that simplifies instruction execution and enhances processing speed. It includes a versatile set of peripherals such as 52 programmable I/O pins and 5 dedicated timers, making it suitable for a wide range of control and timing applications.
The device is built to handle a broad operating temperature range from -40°C to 85°C and operates in supply voltages ranging from 2 V to 3.6 V, allowing its use in various industrial and commercial environments. Furthermore, it provides 9 analog comparators with 10-bit ADCs, suitable for precise analog signal processing.
Constructed with a through-hole SPDIP package of 28 pins, it measures 35.56 mm in length and 3.81 mm in height, ideal for prototyping and circuit board integration. The microcontroller complies with RoHS standards, ensuring environmentally safe manufacturing.
This product is widely used in industrial automation, consumer electronics, automotive control systems, and instrumentation. Its flash-based program memory supports reprogrammable applications allowing easy updates and development iterations.
Operates with maximum clock frequency of 32 MHz. 64 kB flash memory and 8 kB RAM for program and data storage. 52 programmable I/O pins and 5 timers for extensive peripheral control. Supports analog signal processing with 9 ADCs of 10-bit resolution.
Wide operating temperature range (-40 to 85°C) for harsh environments. Complies with RoHS environmental standards. 28-pin SPDIP through-hole package designed for easy circuit integration. Find more Microcontrollers and semiconductor components at EnvMart for your industrial, manufacturing, or research and development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Microchip PIC24FJ64GB002-I/SP operates at a maximum clock frequency of 32 MHz.
It features 64 kB of FLASH program memory for storing applications and data.
This model is designed to operate reliably in ambient temperatures ranging from -40°C to 85°C.
It includes 52 programmable I/O pins for versatile control options in embedded applications.
The device is housed in a 28-pin SPDIP (Single In-line Dual Package) through-hole package.
This microcontroller is equipped with 8 kB of RAM for data handling.
It operates with a minimum supply voltage of 2 V and a maximum supply voltage of 3.6 V.
The PIC24FJ64GB002-I/SP features 5 dedicated timers for timing applications.
It includes 9 analog-to-digital converters (ADCs) with a resolution of 10 bits.
It employs a RISC (Reduced Instruction Set Computing) architecture for efficient performance.
Yes, it complies with RoHS standards, ensuring environmental safety in its manufacturing.
