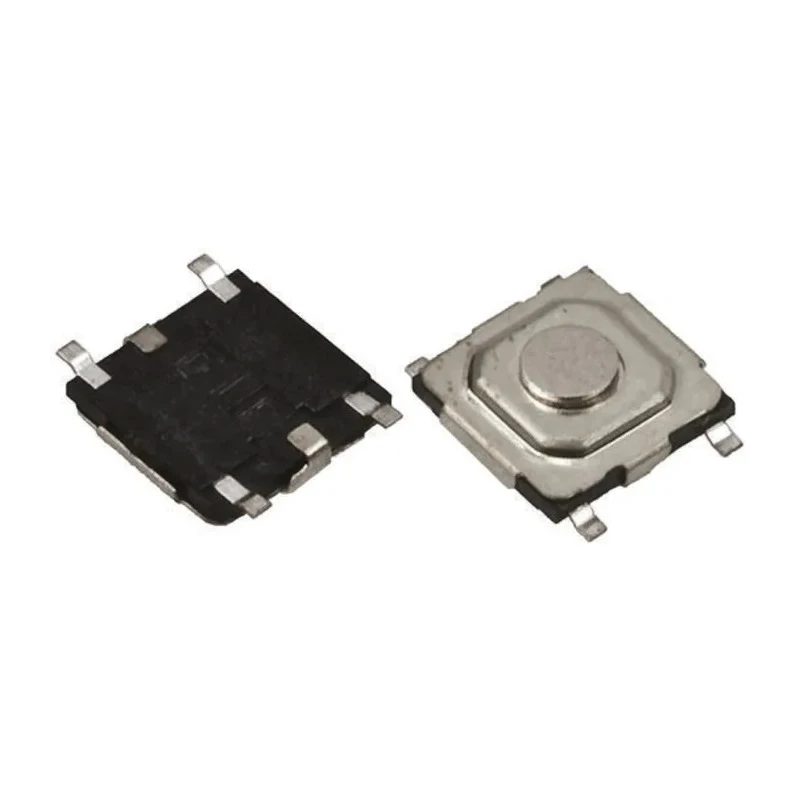

APEM Tactile Switch SPST Momentary 50mA 12 V dc Through Hole TM533V
Specifications
| Country of Origin | China |
|---|---|
| Brand | APEM |
| Height | 1.5mm |
| Length | 6.3mm |
| Model | TM533V |
| Width | 5.2mm |
| Series | TM5 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 692-6939Brand: APEMManufacturers Part No.: TM533V |
| Switch Operation | Momentary |
| Contact DC Voltage | 12V dc |
| Switch Contact Current | 50mA |
| Operating Force | 1.6N |
| Mechanical Life | 200000Operations |
| Vibration Test | MIL-STD-202F METHOD 201A. (TM533) |
| Product DetailsAPEM Surface Mount Tactile SwitchesVibration Test | MIL-STD-202F METHOD 201A. (TM533)Insert moulding in the contact with special treatment prevents flux build-up during soldering and permits auto-dippingTactileRead more |
| APEM Surface Mount Tactile SwitchesVibration Test | MIL-STD-202F METHOD 201A. (TM533)Insert moulding in the contact with special treatment prevents flux build-up during soldering and permits auto-dippingTactile |
Key Features
- The switch features a through-hole terminal type for easy mounting.
- Compact dimensions measure 6.3mm length, 5.2mm width, and 1.5mm height.
- Operating force is 1.6N providing tactile feedback for user interfaces.
- Designed for a mechanical life of 200,000 operations ensuring durability.
- Suitable for operating temperatures ranging from -25°C to 70°C.
- Complies with RoHS standards for environmental safety.
- Series TM5 model is surface mount compatible with special flux-preventing insert moulding.
Product Description
APEM TM533V tactile switch is a precision SPST momentary switch designed for reliable low current applications up to 50mA at 12 V dc. This switch operates with a through-hole terminal construction suited for PCB mounting in electronic devices.
The compact form factor includes length 6.3mm, width 5.2mm, and a height of just 1.5mm. Operating force of 1.6 Newtons provides tactile feedback ideal for keypad and keyboard switches.
Constructed to withstand harsh use, it offers a mechanical life of 200,000 cycles assuring long-term reliability in industrial and commercial applications. The operating temperature range from -25°C up to 70°C widens its applicability across various environmental conditions.
APEM TM533V complies with RoHS environmental standards and features advanced insert moulding in the contact area to prevent flux buildup during soldering, enabling automated assembly processes and enhanced durability.
Vibration tested according to MIL-STD-202F Method 201A, this switch is suited for demanding industrial control panels, instrumentation, consumer electronics, and embedded systems requiring dependable tactile input.
The switch supports momentary operation for momentary user inputs. Through-hole terminal type for secure PCB mounting. Compact size fits space-constrained designs. High mechanical endurance of 200,000 operations. Wide temperature operating range from -25°C to 70°C.
RoHS compliant and vibration tested for reliability. Surface mount compatible with special contact treatment. This tactile switch is ideal for electronics manufacturing, industrial automation systems, consumer devices, and other applications where tactile user feedback is needed.
Explore related Tactile Switch offerings and quality components on EnvMart to complete your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The APEM TM533V tactile switch operates at a contact DC voltage of 12V and a maximum contact current of 50mA.
This tactile switch has compact dimensions measuring 6.3mm in length, 5.2mm in width, and 1.5mm in height.
The switch is designed for a mechanical life of 200,000 operations, ensuring long-term reliability.
The operating temperature range for the APEM TM533V is from -25°C to 70°C.
This model features a single pole single throw (SPST) momentary switch configuration.
It is designed with a through-hole terminal type for easy and secure PCB mounting.
The operating force required for the TM533V is 1.6 Newtons, providing tactile feedback for user interfaces.
Yes, it complies with RoHS standards for environmental safety.
The switch has been vibration tested according to MIL-STD-202F Method 201A, ensuring reliability in demanding conditions.
Yes, it features advanced insert moulding in the contact area to prevent flux buildup during soldering, making it suitable for automated assembly.
This tactile switch is ideal for use in industrial control panels, instrumentation, consumer electronics, and embedded systems requiring tactile input.
The TM533V is part of the TM5 series of tactile switches.
