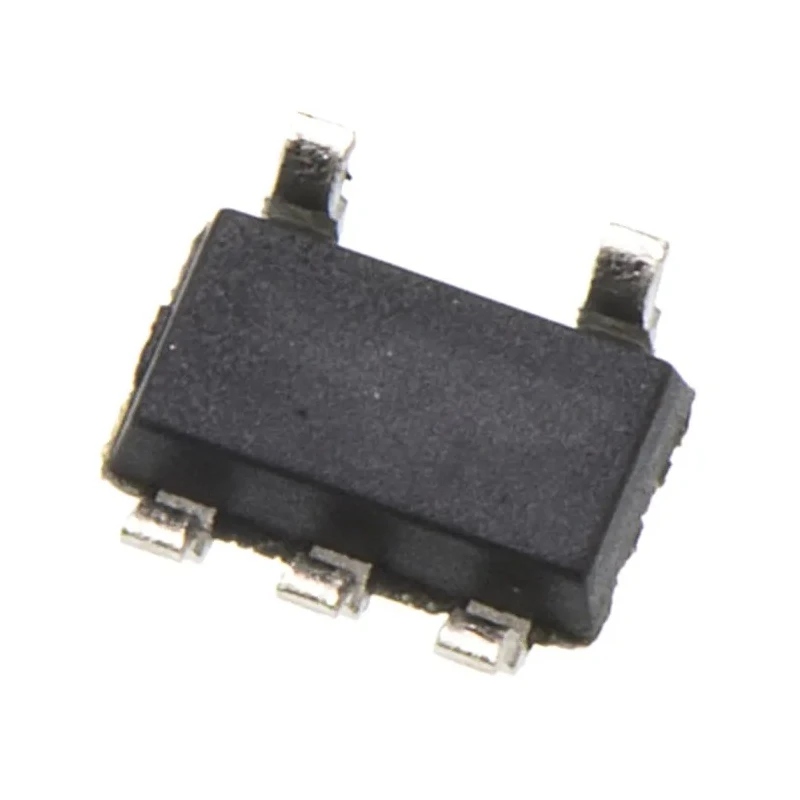

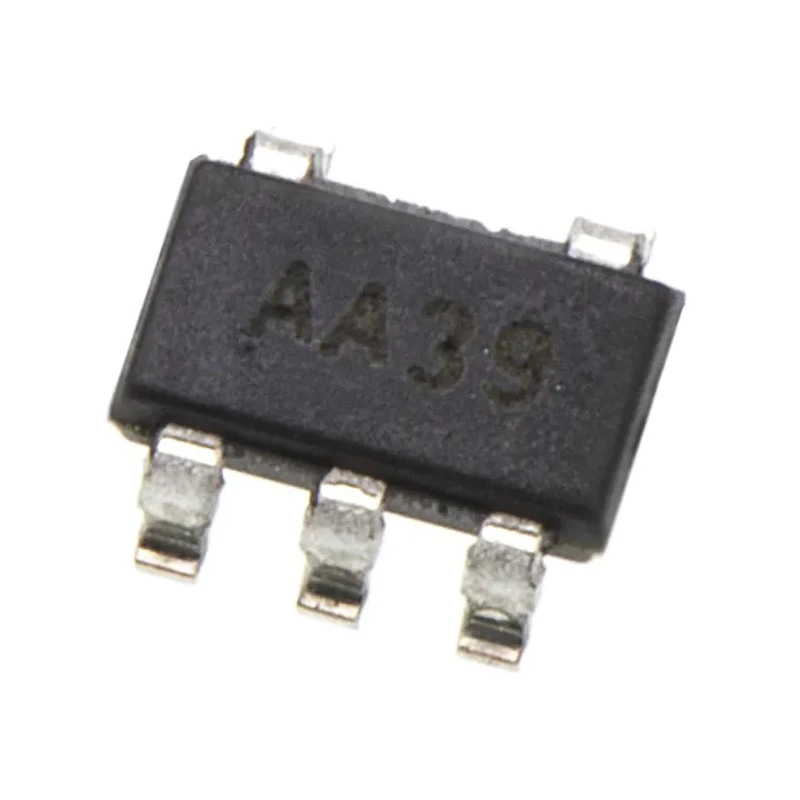

Microchip Operational Amplifier 1 MHz, 5-Pin SOT-23, 3-6V MCP6001T-I/OT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | MCP6001T-I/OT |
| Width | 1.8mm |
| Mount Type | Surface |
| Series | MCP6001 |
| Output Current | 23mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 698-9041Brand: MicrochipManufacturers Part No.: MCP6001T-I/OT |
| Pin Count | 5 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 19 pA |
| Vos - Input Offset Voltage | 4.5 mV |
| Slew Rate | 0.6V/μs |
| Input Offset Current | 1 pA |
Key Features
- This device provides low input bias current of 19 pA for precision signal amplification.
- It features a gain bandwidth product (GBP) of 1 MHz suitable for moderate speed applications.
- Maximum output current is rated at 23 mA enabling driving of various loads.
- Input offset voltage is low at 4.5 mV, ensuring accuracy in signal processing.
- The amplifier operates reliably over wide temperature range from -40°C to 85°C.
- Slew rate is 0.6 V/μs allowing reasonable response to fast input signals.
- The small form factor with dimensions 3.1 mm length, 1.8 mm width, and 1.3 mm height fits space-constrained designs.
- RoHS compliant ensuring adherence to environmental standards.
Product Description
Microchip MCP6001T-I/OT is a high-performance operational amplifier designed for precision analog signal processing in industrial, electronic, and instrumentation applications. Housed in the compact SOT-23 5-pin package, this amplifier operates efficiently with supply voltages ranging from 3 to 6 volts, making it suitable for battery-powered and portable devices.
This single-channel operational amplifier delivers a gain bandwidth product of 1 MHz and a slew rate of 0.6 V/μs, providing excellent performance for moderate frequency analog signals. Its ultra-low input bias current of 19 pA and low input offset voltage of 4.5 mV improve accuracy and reduce signal distortion in sensitive circuits.
Designed to operate reliably over a wide temperature range from -40°C to 85°C, the MCP6001T-I/OT is suitable for harsh industrial environments and outdoor applications. The device delivers a maximum output current of 23 mA, capable of driving various loads efficiently.
The small footprint (3.1 mm length, 1.8 mm width, and 1.3 mm height) and surface mount package enable easy integration into compact printed circuit boards (PCBs), supporting automated manufacturing processes. Compliance with RoHS standards ensures environmental safety and regulatory adherence.
Low input bias current enhances precision in signal amplification. 1 MHz gain bandwidth product suited for moderate-speed circuits. High output current capability allows for diverse load driving. Stable operation across extended temperature range.
Compact SOT-23 5-pin package for space-saving designs. Surface mount type facilitates automated PCB assembly. RoHS compliant ensuring environmental regulatory compliance. Low input offset prevents signal error and drift.
Single channel configuration for focused amplification needs. Ideal for industrial, instrumentation, and electronic applications requiring precision analog amplification. Explore more Operational Amplifiers and semiconductor components at EnvMart for reliable and high-quality electronic design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product (GBP) of this model is 1 MHz, making it suitable for moderate speed applications.
It has a maximum output current rating of 23 mA, allowing it to drive various loads efficiently.
The input bias current is low at 19 pA, which enhances precision in signal amplification.
This operational amplifier operates reliably over a wide temperature range from -40°C to 85°C.
The dimensions of the SOT-23 package are 3.1 mm in length, 1.8 mm in width, and 1.3 mm in height.
The slew rate for this model is 0.6 V/μs, allowing reasonable response to fast input signals.
Yes, it is RoHS compliant, ensuring adherence to environmental standards.
The minimum supply voltage is 3V, and the maximum supply voltage is 6V.
This operational amplifier has a single-channel configuration, designed for focused amplification needs.
It is suitable for industrial, instrumentation, and electronic applications requiring precision analog amplification.
The input offset voltage is low at 4.5 mV, which helps ensure accuracy in signal processing.
This model uses a surface mount type, facilitating automated PCB assembly.
