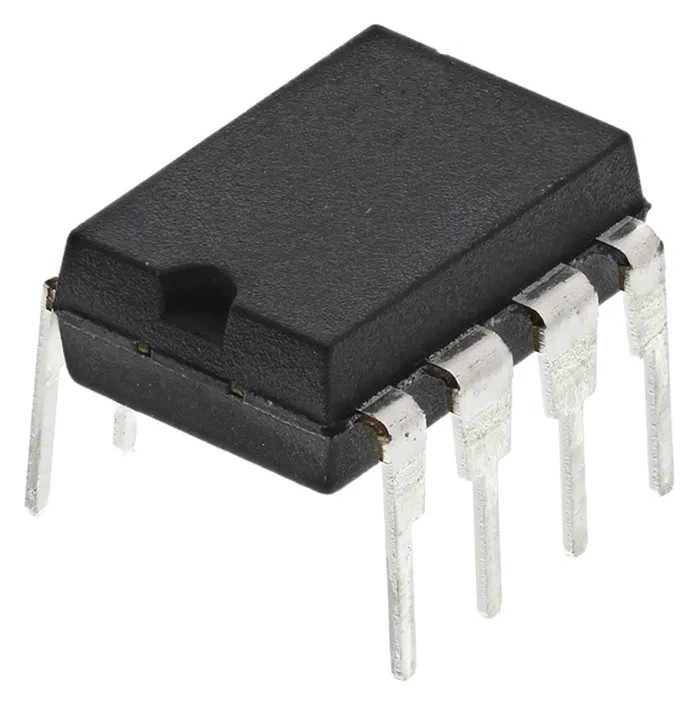

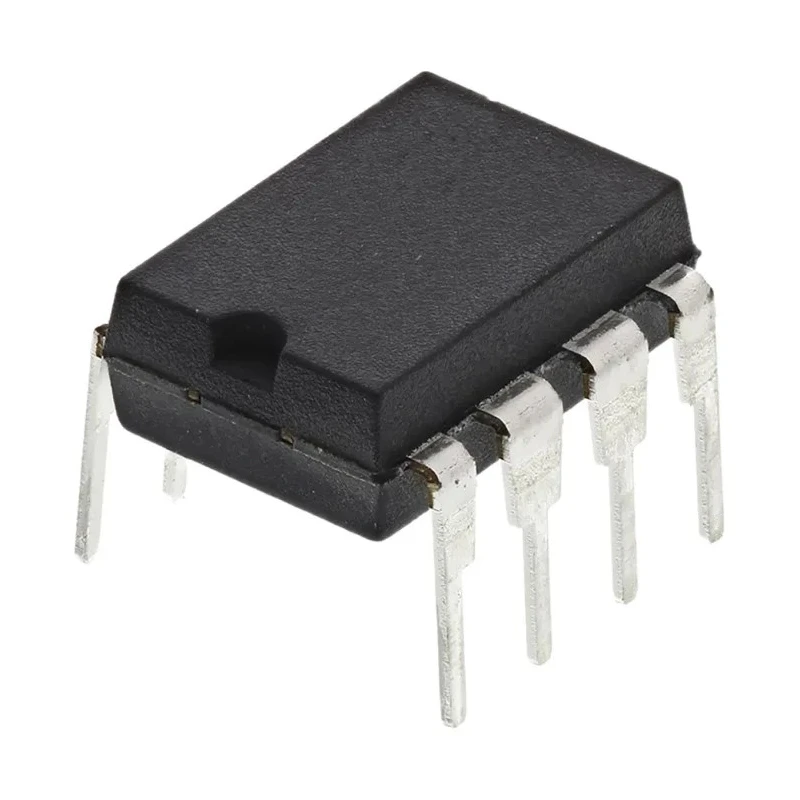

Microchip 128 kB Serial EEPROM 50 ns Maximum Random Access Time 10 MHz Clock Frequency 8-Pin PDIP 25AA128-I/P

Microchip 25AA128-I/P is a high-performance 128 kB Serial EEPROM with a maximum random access time of 50 ns. It utilizes a Serial-SPI interface in an 8-pin PDIP through-hole package, designed for robust and efficient data storage solutions.

This EEPROM supports a maximum clock frequency of 10 MHz and operates under a supply voltage range from 1.8V to 5.5V, offering flexibility for various electronic device designs. Its organization as 16k x 8-bit memory lends it to numerous embedded and industrial applications requiring non-volatile memory.

Operating reliably within a temperature range of -40°C to 85°C, this device is also qualified to meet the AEC-Q100 automotive standard, increasing its suitability for vehicle electronics.

The compact PDIP package measures 9.4 mm in length, 6.35 mm in width, and 3.3 mm in height, optimizing PCB layout and assembly processes. It has a low power supply current of 5 mA and promises an outstanding data retention period of up to 200 years, ensuring long-term data preservation.

Applications for the 25AA128-I/P include industrial control systems, automotive electronic modules, consumer goods, and computing equipment where dependable EEPROM storage is critical.

Provides 128 kB memory organized as 16k x 8 bit for versatile data storage. Operates at supply voltages ranging from 1.8V to 5.5V for flexible integration. Maximum clock frequency of 10 MHz ensures high-speed serial communication.

Designed for through-hole mounting in an 8-pin PDIP package for easy PCB assembly. Stable operation across a wide temperature range from -40°C to 85°C. Data retention guaranteed for 200 years, ensuring long-term reliability.

Consumes a supply current of 5 mA, suitable for low power applications. Meets automotive standard AEC-Q100, making it suitable for automotive electronic systems. Compact physical dimensions: 9.4 mm length, 6.35 mm width, and 3.3 mm height.

Ideal for industrial and consumer electronics requiring reliable serial EEPROM memory solutions. Explore EnvMart's comprehensive range of semiconductor EEPROMs and Microchip products to enhance your electronic system's memory performance and reliability.
