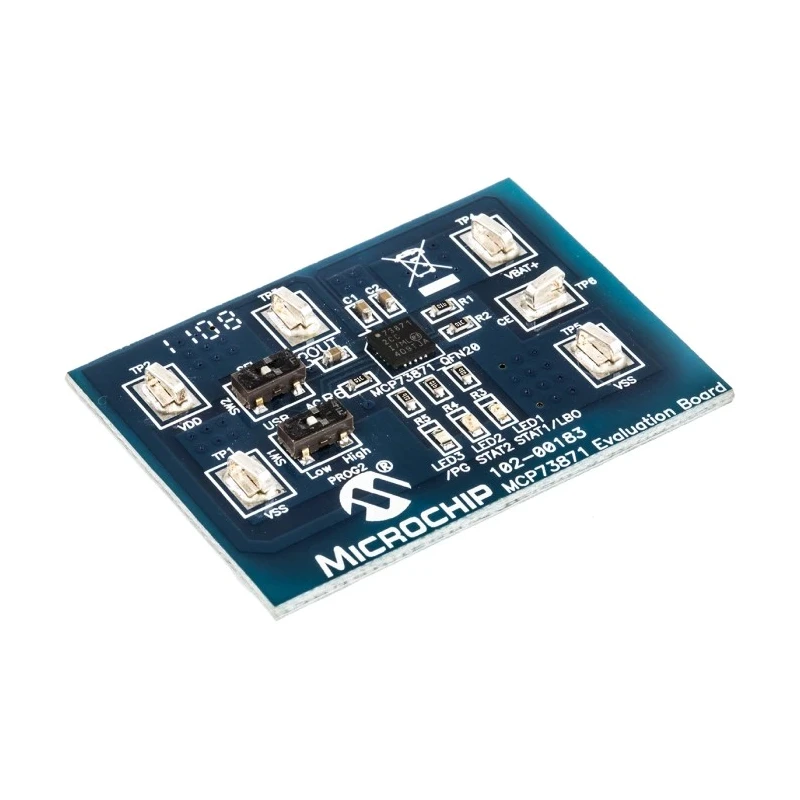

Microchip Power Management Development Kit Evaluation Board MCP73871EV
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | MCP73871EV |
| Interfaces | USB-High (500mA), and USB-Low (100mA) |
| Standards/Approvals | ISO |
| Kit Classification | Evaluation Board |
| Featured Device | MCP73871 |
| Kit Name | Evaluation Board |
Key Features
- Integrated system load sharing allows battery support when input power is disconnected.
- LED indicators display charge status, low battery, and power good signals.
- Input current limit controlled by DIP switches for AC-DC adapter, USB-High, and USB-Low modes.
- Features versatile device options for applications including smartphones, PDAs, and portable media players.
- Suitable for handheld medical devices, Bluetooth headsets, ultra-mobile PCs, and portable communicators.
- Conforms to ISO standards for reliable and compliant design.
- Provides a reference design for Microchip’s MCP73871 linear charger device.
- Supports various USB current limits of 100mA, 500mA, and typical 1650mA.
Product Description
Microchip MCP73871EV Evaluation Board is a power management development kit designed to demonstrate Microchip's stand-alone linear Li-Ion battery charger featuring integrated system power path and load sharing management control. This evaluation board enables the system load to be supported by the Li-Ion battery when the input power source is disconnected, ensuring uninterrupted device operation.
The board includes LED indicators which provide clear visual feedback for charge status, low battery alerts, and power good signals, enhancing user interface and diagnostic capabilities. It also incorporates DIP switch-configurable input current limits for various power inputs such as AC-DC adapters (typical 1650mA), USB-High (500mA), and USB-Low (100mA), offering flexibility to developers to test under different power conditions.
This evaluation board serves as a reference design showcasing the MCP73871 device's capabilities, targeted for a range of applications including smartphones, PDAs, portable media players, MP3 players, digital cameras, handheld medical devices, Bluetooth headsets, ultra-mobile PCs, and portable communicators. The design complies with ISO standards, ensuring quality and reliability for professional development environments.
Engineered for industrial, laboratory, and consumer electronics development use cases, the MCP73871EV evaluation board is ideal for power, motor, and robotics development applications. The compact form factor facilitates integration into various test setups, accelerating product development timelines.
Integrated system load sharing for uninterrupted power supply. LED indicators for charge and power status feedback. Configurable input current limits via DIP switches. Versatile device options for multiple portable applications.
ISO-standard compliant design for reliability. Reference design for MCP73871 linear Li-Ion charger device. Suitable for power, motor, and robotics development tools. Supports USB current modes: 100mA, 500mA, 1650mA. Explore more power management and Evaluation Boards at EnvMart for comprehensive development solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is designed to demonstrate Microchip's stand-alone linear Li-Ion battery charger featuring integrated system power path and load sharing management control.
The design conforms to ISO standards, ensuring quality and reliability for professional development environments.
The primary featured device of this evaluation board is the MCP73871 linear charger.
The country of origin for the MCP73871EV Evaluation Board is India.
The integrated system load sharing allows the battery to support the system load when the input power source is disconnected, ensuring uninterrupted device operation.
The kit classification for this product is an Evaluation Board.
It supports USB-High (500mA) and USB-Low (100mA) interfaces for power input.
It is engineered for industrial, laboratory, and consumer electronics development applications, particularly in power, motor, and robotics development.
