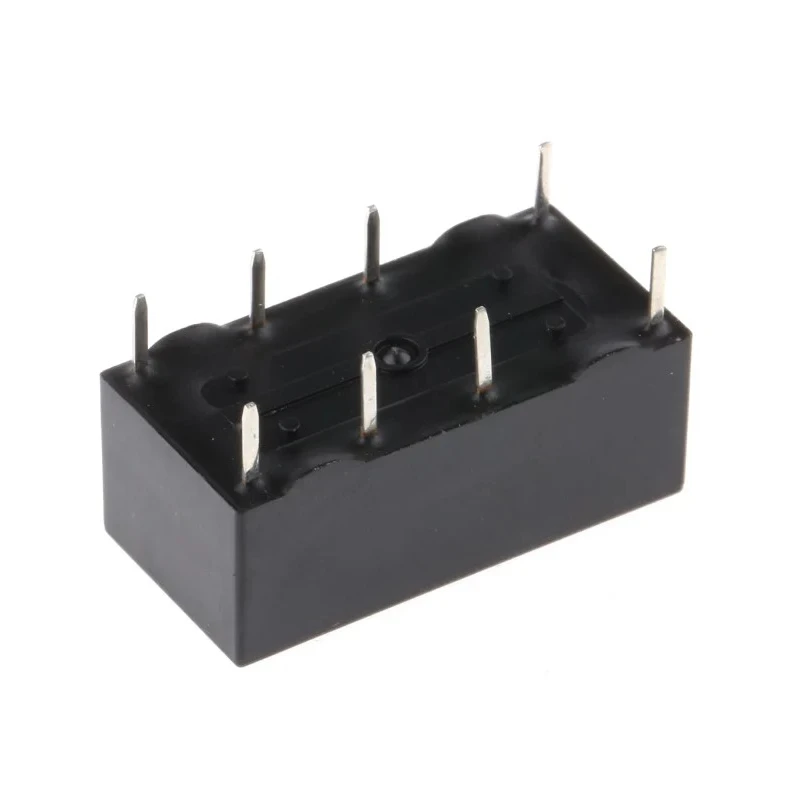

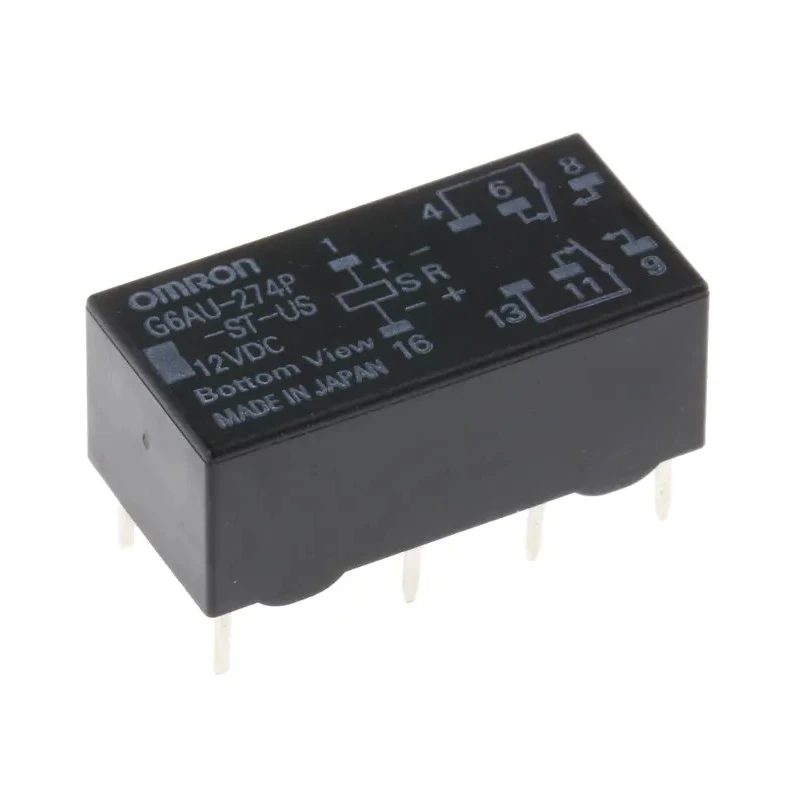

Omron PCB Signal Relay, 12V dc Coil, 2A Switching Current, DPDT Contact Configuration, Gold Plated G6AU-274P-ST-US 12DC
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 8.4mm |
| Length | 20.2mm |
| Model | G6AU-274P-ST-US 12DC |
| Width | 10.1mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | G6A |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1440Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 100mW |
| Switching Power | 60W |
Key Features
- Equipped with gold plated contacts for enhanced conductivity and durability.
- Suitable for PCB mount with solder terminal type ensuring easy installation.
- Operates effectively within a temperature range from -40°C to 70°C.
- Supports switching voltages up to 250V AC and 220V DC, with 60W switching power.
- Compact dimensions of 20.2mm length, 10.1mm width, and 8.4mm height.
- Coil power consumption is low at 100mW contributing to energy efficiency.
- Fully sealed design reduces magnetic leakage and ensures impulse withstand voltage of 1500V.
Product Description
Omron G6AU-274P-ST-US 12DC PCB Signal Relay is a high-quality signal relay designed for electronic and automation applications where reliable switching is required. It features a 12V dc coil and DPDT contact configuration facilitating double-pole double-throw switching functions.
This relay is fully sealed and incorporates gold plated contacts that guarantee low contact resistance and long operational life. It is suitable for PCB mounting with solder terminals for convenience in assembly line productions.
The relay operates efficiently under a wide temperature range from -40°C to 70°C, making it ideal for both industrial and commercial settings. With switching capabilities at voltages of up to 250V AC and 220V DC, and a switching power of 60W, it accommodates moderate power loads.
The compact size (20.2mm length, 10.1mm width, 8.4mm height) makes it suitable for space-sensitive PCB layouts. Its coil resistance of 1440Ω and low power consumption of 100mW allow for energy-efficient performance.
This Signal Relay is common in telecommunications, industrial control, signal conditioning, and automation applications requiring precise and stable switching mechanisms. The fully sealed construction also stabilizes performance by minimizing magnetic leakage and withstands impulses up to 1500V, conforming to RoHS standards.
Equipped with gold plated contacts for enhanced conductivity and durability. Suitable for PCB mount with solder terminal type ensuring easy installation. Operates effectively within a temperature range from -40°C to 70°C.
Supports switching voltages up to 250V AC and 220V DC, with 60W switching power. Compact dimensions of 20.2mm length, 10.1mm width, and 8.4mm height. Coil power consumption is low at 100mW contributing to energy efficiency.
Fully sealed design reduces magnetic leakage and ensures impulse withstand voltage of 1500V.
Omron products deliver reliability and innovation across electronics and automation sectors. Explore EnvMart for more precision relays and signal conditioning components tailored for diverse industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile switching functions.
It supports switching voltages up to 250V AC and 220V DC, accommodating various electrical applications.
The coil voltage is 12V DC, and it has a low power consumption of 100mW, contributing to energy efficiency.
The relay has compact dimensions of 20.2mm in length, 10.1mm in width, and 8.4mm in height, making it suitable for space-sensitive applications.
It operates effectively within a temperature range from -40°C to 70°C, suitable for various industrial and commercial environments.
The maximum switching power for this relay is 60W, allowing it to handle moderate power loads.
This unit is designed for PCB mounting with solder terminals, ensuring easy installation in electronic assemblies.
The contacts are made of gold plated material, which enhances conductivity and reduces contact resistance.
The contact resistance is 50mΩ, which contributes to its efficient performance in switching applications.
It conforms to RoHS standards, ensuring compliance with environmental regulations.
The coil resistance is 1440Ω, which is important for determining the relay's operation with the specified coil voltage.
This signal relay is commonly used in telecommunications, industrial control, signal conditioning, and automation applications.
