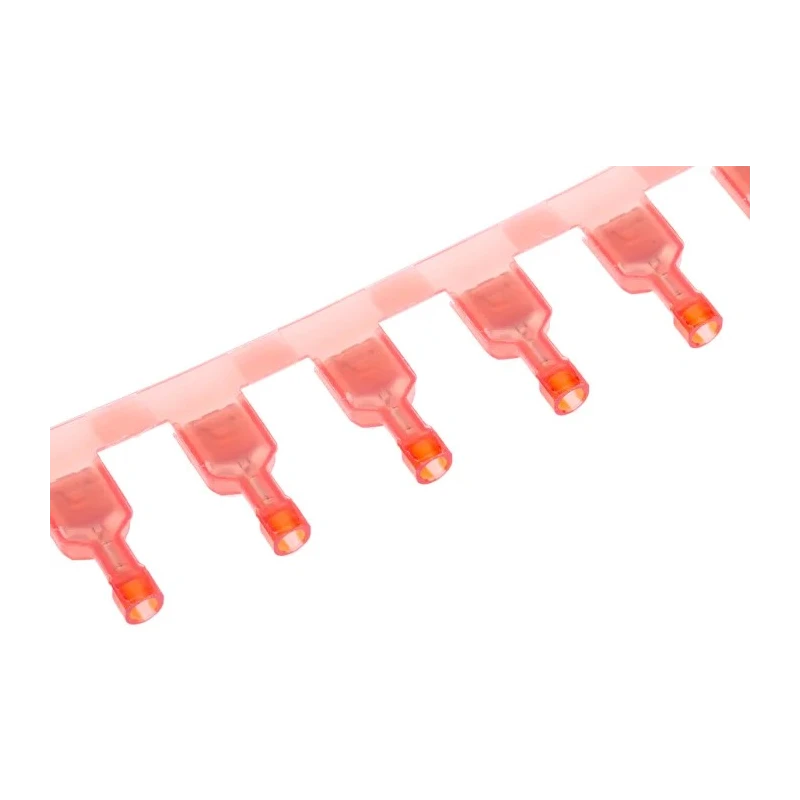

TE Connectivity Ultra-Fast Plus .250 Red Insulated Female Spade Connector Crimp 6.35 x 0.81 mm Tab Size 22 AWG to 2-520405-2

TE Connectivity 2-520405-2 Ultra-Fast Plus .250 Red Insulated Female Spade Connector is a crimp termination connector specifically engineered for reliable electrical connections in industrial and electronic applications. It is designed to accommodate wire sizes ranging from 22 AWG to 18 AWG (0.3 mm² to 0.8 mm²) with a tab size of 6.35 x 0.81 mm, suitable for use in 600V rated circuits.

The connector's contact is made from brass with a tin plating to ensure optimum conductivity and corrosion resistance. The insulation is constructed from high-grade nylon material which provides excellent strain relief and maintains the shape of the crimped insulation. The straight orientation and compact overall length of 0.855 inches make it ideal for use in tight or blind mating applications.

This Ultra-Fast Plus .250 series terminal features an inner housing design with a two-stage roll configuration and a cantilever mounted dimple on the receptacle terminal. These features enable positive entry and lead-in of mating tab contacts even in difficult assembly situations, enhancing connection reliability and durability.

The insulated housing fully encloses the contact elements, preventing accidental shorts and shocks, thus enhancing operational safety. This female Spade Connector is suitable for a wide range of industrial, automotive, and electronic use cases where secure and high-quality wire termination is necessary.

Features insulated housing to prevent shock and electrical short circuits. Made from premium grade nylon insulation and brass contact material with tin plating. Supports wire sizes from 0.3 mm² to 0.8 mm² (22 AWG to 18 AWG).

Straight orientation with a tab width of 6.35 mm and thickness of 0.81 mm. Overall length of 0.855 inches suitable for 600V applications. Designed with a cantilever mounted dimple and two-stage roll configuration for positive mating contact.

Made in the United States ensuring quality and durability.

This connector forms part of TE Connectivity’s widely trusted Ultra-Fast Plus .250 series, known for superior electrical insulation and mechanical stability in demanding environments. It is a preferred choice in industrial automation, electrical panel wiring, and automotive signal applications.
