RS PRO Red Insulated Female Spade Connector, Crimp, 0.8 x 4.75 mm Tab Size, 22–18 AWG, Nylon, Brass, 21mm Length, 178-8301

Free Delivery in India | Lowest Global Shipping Charges

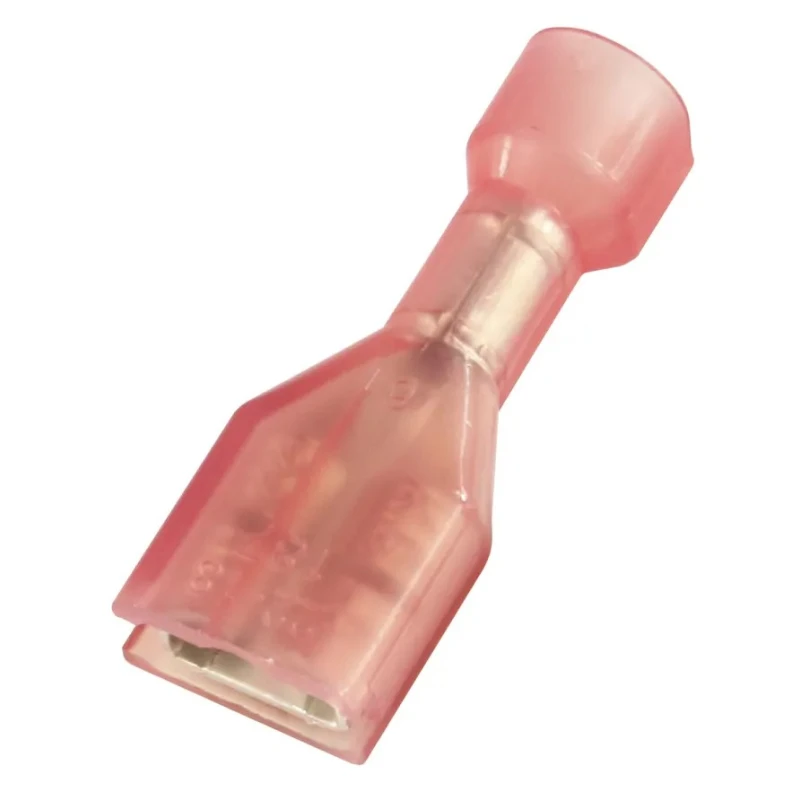

RS PRO Red Insulated Female Spade Connector, Crimp, 0.8 x 4.75 mm Tab Size, 22 - 18 AWG, Nylon, Brass, 21mm Length, 178-8301

Name: RS PRO Red Insulated Female Spade Connector, Crimp, 0.8 x 4.75 mm Tab Size, 22 - 18 AWG, Nylon, Brass, 21mm Length, 178-8301
Brand: RS PRO
SKU: 81936
Price: 0.09 USD
Availability: InStock



Category Spade Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Colour	Red
Orientation	Straight
Model	178-8301
Gender	Female
Insulation	Insulated
Overall Length	21mm
Contact Material	Brass
Series	RS PRO
Termination Type	Crimp
Insulation Material	Nylon
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	0.75mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	18AWG
Tab Width	4.75mm
Tab Thickness	0.8mm
Tab Size	0.8 x 4.75 mm

Key Features

Red insulated female spade connector designed for secure crimp terminations.
Supports wire sizes ranging from 22 AWG to 18 AWG (0.5 to 0.75 mm²).
Features fully insulated nylon material for enhanced safety and durability.
Tab size of 0.8 x 4.75 mm allows compatibility with standard terminal blocks.
Brass contact material with tin plating provides corrosion resistance and reliable conductivity.
Straight orientation for streamlined installation in electronic circuits.
Connector overall length is 21 mm for compact applications.
Colour-coded red insulation simplifies identification and circuit arrangement.

Product Description

RS PRO 178-8301 Red Insulated Female Spade Connector is a high-quality crimp terminal designed for quick and reliable connections in electrical and electronic equipment. Suitable for wire sizes 22 AWG to 18 AWG (0.5 to 0.75 mm²), it makes wiring tasks both safe and efficient.

This female spade connector features a fully insulated nylon body for electrical protection, and a tab size of 0.8 x 4.75 mm, making it compatible with many standard spade-type terminal blocks. The design supports straight orientation for easy insertion into connectors and circuit assemblies.

The crimp termination ensures a firm and lasting connection when attached to wires, minimizing risk of accidental disconnection. The red insulation colour helps users quickly identify circuit paths and prevents wiring errors during installation or maintenance.

Internally, the connector uses brass as the contact material, which is tin-plated for corrosion resistance and superior electrical performance. The overall length of 21 mm keeps this connector compact, allowing integration into densely packed electrical panels and assemblies.

RS PRO connectors are widely preferred by professionals for use in industrial equipment, control systems, automotive panels, electronic assemblies, and manufacturing applications. The robust build ensures longevity under demanding installation conditions.

Red insulated female spade connector designed for secure crimp terminations. Supports wire sizes ranging from 22 AWG to 18 AWG (0.5 to 0.75 mm²). Features fully insulated nylon material for enhanced safety and durability.

Tab size of 0.8 x 4.75 mm allows compatibility with standard terminal blocks. Brass contact material with tin plating provides corrosion resistance and reliable conductivity. Straight orientation for streamlined installation in electronic circuits.

Connector overall length is 21 mm for compact applications. Colour-coded red insulation simplifies identification and circuit arrangement.

This connector is ideal for industrial, laboratory, commercial, and electronics manufacturing environments. For more options and related products, browse the RS PRO Spade Connector catalog at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model supports wire sizes ranging from 22 AWG to 18 AWG, which corresponds to 0.5 mm² to 0.75 mm².

The tab size is 0.8 x 4.75 mm, allowing compatibility with standard terminal blocks.

It features a brass contact material with tin plating for corrosion resistance, and the insulation is made from nylon.

The overall length of this spade connector is 21 mm, making it suitable for compact applications.

This connector uses a crimp termination type, ensuring a firm and lasting connection when attached to wires.

The connector features a straight orientation, which facilitates easy insertion into connectors and circuit assemblies.

The insulation is color-coded red, which simplifies identification and circuit arrangement during installation.

This spade connector is manufactured in Taiwan.

This model is a female spade connector, designed for secure connections.

It is suitable for use in industrial equipment, control systems, automotive panels, electronic assemblies, and manufacturing applications.

The tin plating on the brass contact material provides corrosion resistance and enhances electrical performance.

The connector's straight orientation and compact size facilitate streamlined installation in electronic circuits and densely packed electrical panels.
