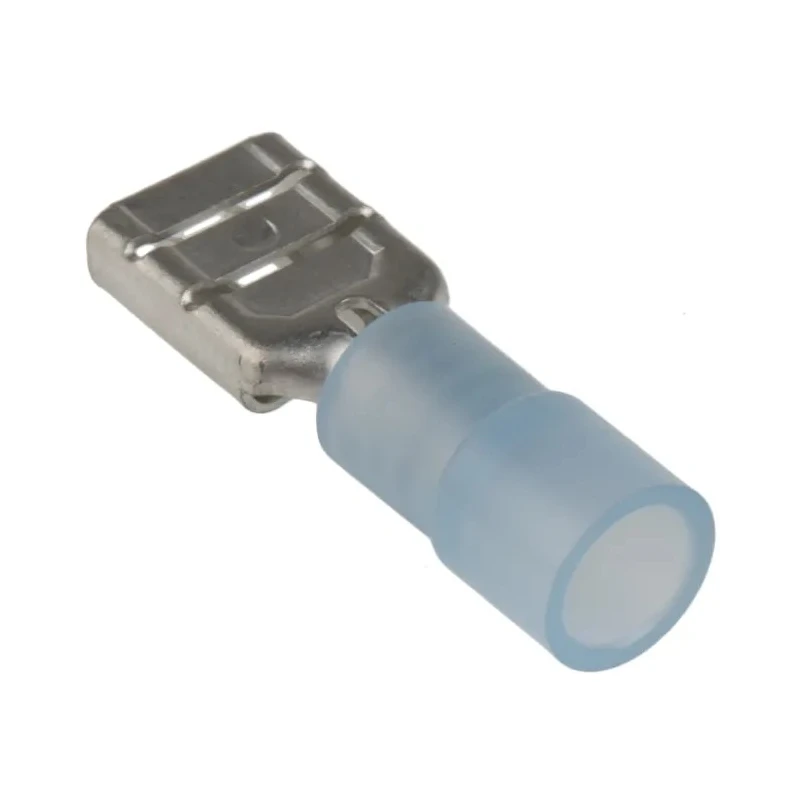

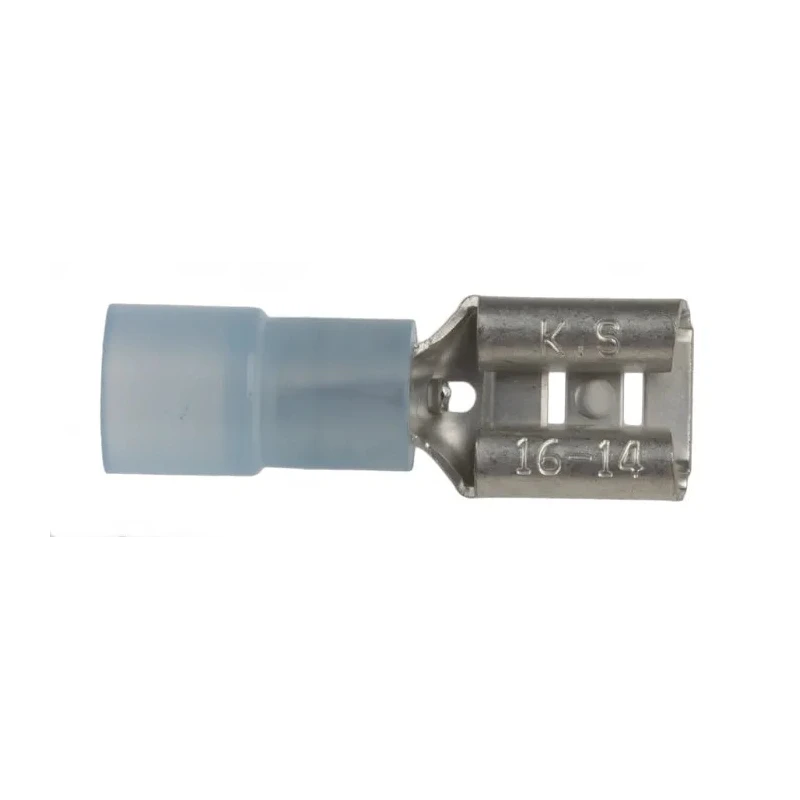

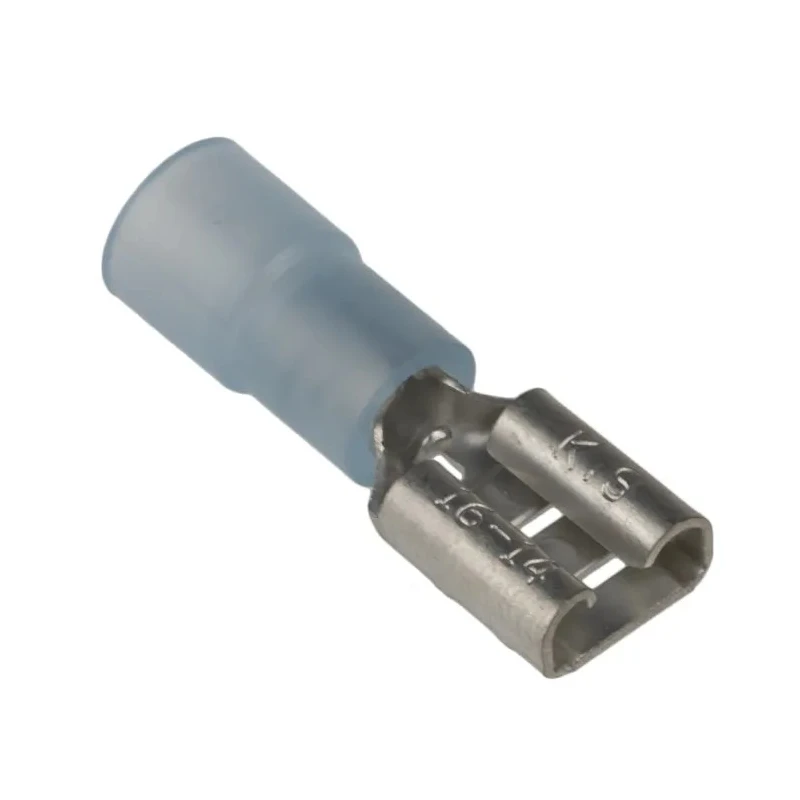

RS PRO Blue Insulated Female Spade Connector, Crimp, 0.8 x 6.35 mm Tab, 16 to 14 AWG, 178-8325
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Blue |
| Orientation | Straight |
| Model | 178-8325 |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 21.5mm |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1.5mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.8mm |
| Tab Size | 0.8 x 6.35 mm |
Key Features
- Blue nylon insulation provides electrical safety and effective wire termination.
- Accommodates wires from 1.5 mm² to 2.5 mm² and 16 AWG to 14 AWG for versatile application.
- Female spade, straight orientation suitable for secure connections in panels and industrial control wiring.
- Crimp termination ensures fast, reliable, and tool-assisted connections for production lines and maintenance.
- Features brass contact material with tin plating for high conductivity and corrosion resistance.
- Tab measures 0.8 mm thickness and 6.35 mm width, fitting standard male tabs and terminals.
- Overall length of 21.5 mm allows for compact installation within electronic and electrical systems.
Product Description
The RS PRO 178-8325 Blue Insulated Female Spade Connector is engineered for professional applications requiring secure and reliable wire-to-wire or wire-to-terminal connections. Designed for use with a broad range of electronic, electrical, and industrial wiring systems, this connector offers a convenient solution for quick assembly and maintenance in control panels, power distribution boards, and automotive harnesses.
Featuring robust nylon insulation in blue for clear phase identification and electrical safety, this connector supports crimp termination, making it suitable for high-volume installations and repairs. The crimp mechanism creates a strong mechanical and electrical bond between the copper conductor and the terminal, reducing resistance and minimizing the risk of disconnection under vibration or mechanical stress.
With a tab size of 0.8 x 6.35 mm, this female spade connector is compatible with standard male spade connectors and complies with common interface dimensions found in switchgear and relay panels. The connector supports a wire range of 1.5 mm² to 2.5 mm² and accommodates 16 AWG to 14 AWG conductors, ensuring flexibility for multiple wiring standards and requirements.
The internal contact is manufactured from high-quality brass, plated with tin, enabling excellent electrical conductivity and added protection against oxidation and harsh environments. The straight orientation allows for direct, easy alignment into mating connectors and ensures quick installation even in confined spaces.
An overall length of 21.5 mm makes this component suitable for compact or crowded enclosures where maximizing available space is essential. Typical applications include industrial automation, HVAC systems, control wiring, panel building, automotive electronics, and general industrial and commercial electrical installations.
Whether you are assembling new panels, retrofitting older systems, or performing routine maintenance, the RS PRO 178-8325 female Spade Connector provides a reliable, industry-standard connection. Its durable insulation, precise dimensions, and crimp-compatible design serve modern industrial and electrical needs efficiently.
For more wiring and connector solutions, explore the full selection of spade terminals and crimp connectors in the RS PRO category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accommodates wire sizes from 1.5 mm² to 2.5 mm² and 16 AWG to 14 AWG.
The tab measures 0.8 mm in thickness and 6.35 mm in width, fitting standard male tabs and terminals.
The overall length of this connector is 21.5 mm, making it suitable for compact installations.
It uses a crimp termination method, ensuring fast and reliable connections for production lines and maintenance.
The internal contact is made of brass and is plated with tin for enhanced conductivity and corrosion resistance.
The connector features blue nylon insulation, which provides electrical safety and helps with phase identification.
This model has a straight orientation, allowing for direct alignment into mating connectors.
The RS PRO 178-8325 connector is manufactured in Taiwan.
It is suitable for use in industrial automation, HVAC systems, control wiring, panel building, and automotive electronics.
This connector is a female spade type, designed for secure connections with male spade connectors.
The blue color of the nylon insulation aids in clear phase identification and enhances electrical safety.
Yes, its compact overall length of 21.5 mm makes it suitable for installations in confined or crowded enclosures.
