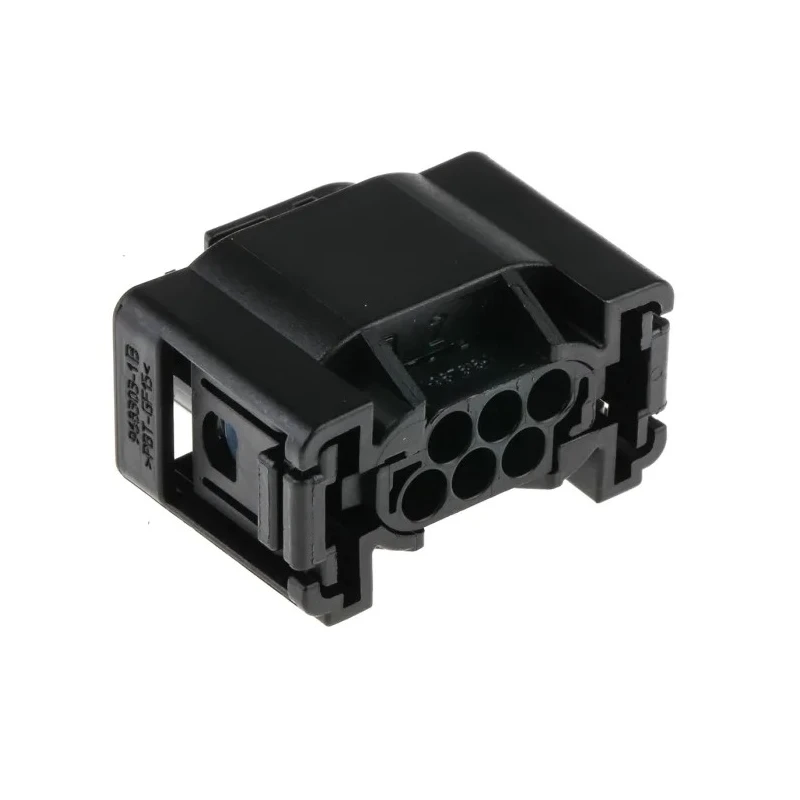

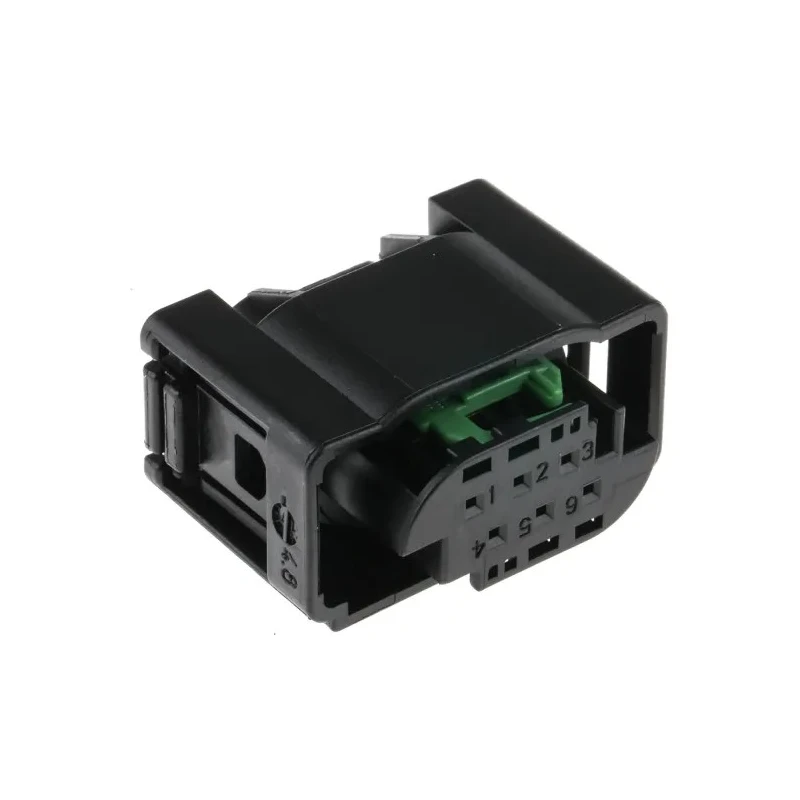

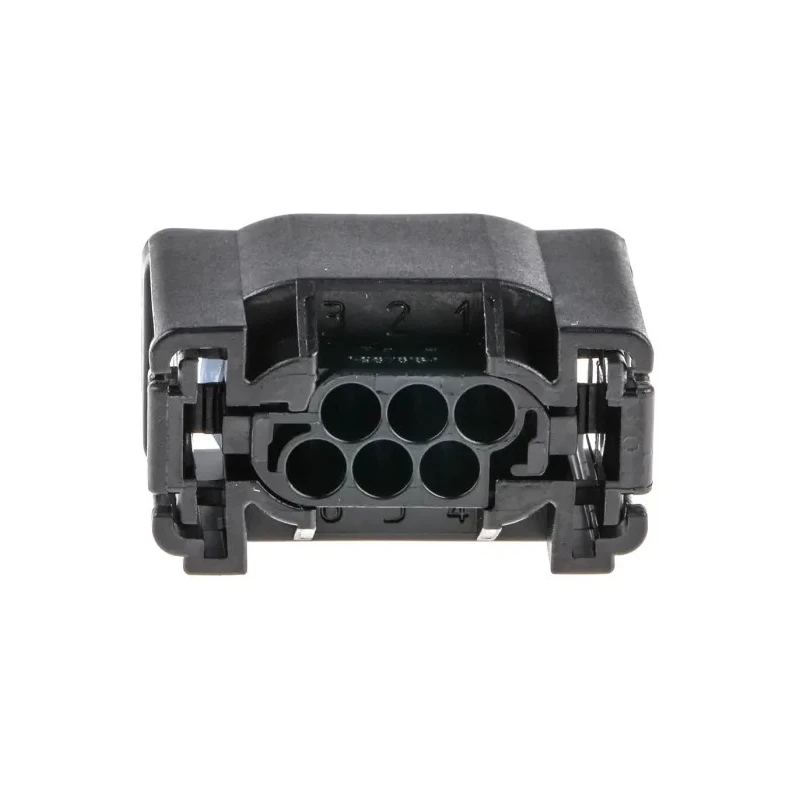

TE Connectivity Micro Quadlok System Automotive Connector Female Black Cable 6 Way Crimp Termination 1-967616-1

TE Connectivity 1-967616-1 Micro Quadlok System Automotive Connector Female Black Cable 6 Way Crimp Termination is a high-density connector designed specifically for demanding automotive applications. Built with fibreglass reinforced polybutylene terephthalate housing, it provides strong mechanical robustness and thermal resilience across a broad temperature range from -40°C up to 120°C.

This Automotive Connector features a 2.54mm pitch and a compact design with dimensions measuring 30.4mm width, 24mm depth, and 17mm height, enabling space-efficient cable harness constructions. The connector offers crimp termination with female gender contacts arranged in 2 rows, totaling 6 contacts, suitable for reliable cable connections.

It is rated IPx9K, providing significant waterproof protection against pressurized water jets and environmental factors, making it well-suited for external vehicle installations or harsh environments. Polarization and keying mechanisms are integrated to prevent incorrect mating, enhancing assembly accuracy and product longevity.

The stainless steel locking lances on the contacts offer an integral primary terminal locking force, firmly securing every contact inside the housing. The TE Connectivity MQS series connectors are commonly used in automotive powertrain systems, safety and security mechanisms, driver information devices, and body and chassis subsystems, supporting robust electrical connectivity under challenging operating conditions.

The connector offers a 2.54mm pitch for precise contact spacing. Designed for crimp termination with female contacts ensuring secure connections. Constructed from fibreglass reinforced polybutylene terephthalate for enhanced durability.

Rated for wide operating temperatures from -40°C to 120°C suitable for harsh automotive environments. Features IPx9K rating for high-performance waterproof protection. Includes polarization and keying to prevent mismating during assembly.

Compact dimensions (30.4mm width x 24mm depth x 17mm height) for space-efficient installations. Meets CSA LR7189, UL 94 V-1, and UL E28476 standards ensuring product safety and reliability. High primary terminal locking force with stainless steel locking lances to secure contacts firmly.

Suitable for powertrain, safety, driver information, and body systems in automotive use. Explore the TE Connectivity Micro Quadlok System range and other Automotive Connectors at EnvMart for dependable industrial and automotive electrical solutions.
