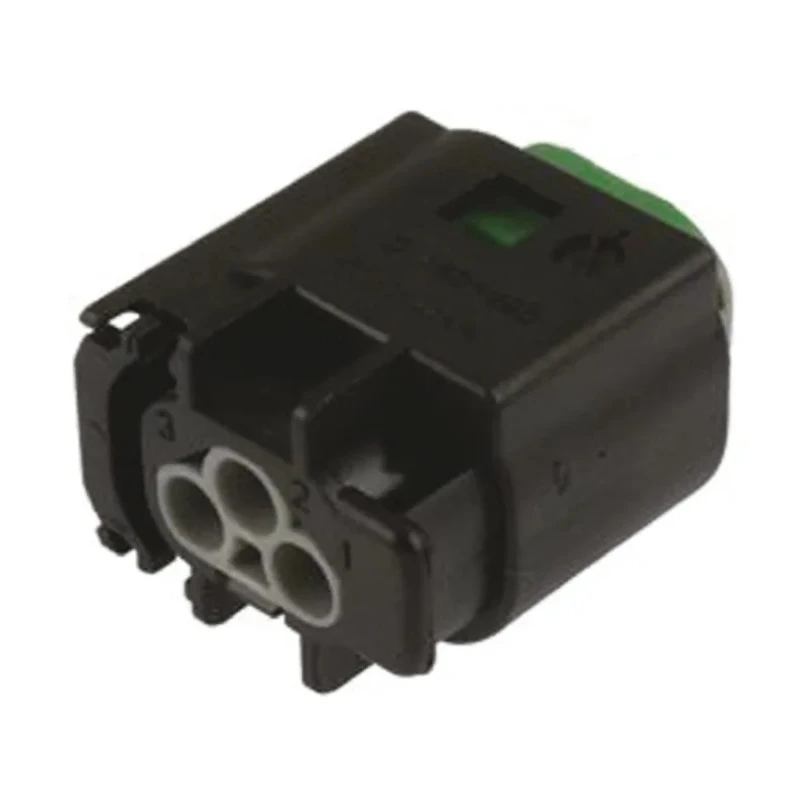

TE Connectivity Micro Quadlok System Automotive Connector Female Grey Cable 3 Way Crimp Termination 2-967642-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Grey |
| Current | 7.5A |
| Height | 15.3mm |
| Depth | 24.2mm |
| Width | 20mm |
| Gender | Female |
| Mount Type | Cable |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | Micro Quadlok System |
| Termination Type | Crimp |
| Maximum Operating Temperature | 120°C |
| Sub Type | Automotive Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 712-2270Brand: TE ConnectivityManufacturers Part No.: 2-967642-1 |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 3 |
Key Features
- High density 3-contact design with 2.54mm pitch.
- Female, grey cable mount housing suitable for crimp termination.
- Operates reliably between -40°C and 120°C temperature range.
- Robust construction with fibreglass reinforced polybutylene terephthalate housing.
- Gold over nickel plated brass contacts ensure excellent conductivity and corrosion resistance.
- Integral primary terminal locking force secures contacts firmly.
- Micro Quadlok System offers polarization and keying features to prevent mismating.
- Sealed versions available for waterproof protection with optional wire seals.
Product Description
TE Connectivity 2-967642-1 Micro Quadlok System Automotive Connector Female Grey Cable 3 Way Crimp Termination is designed specifically for demanding automotive electrical applications. This 3-contact connector offers a secure and high-density interconnection with 2.54mm pitch that meets stringent powertrain, safety, driver information, and chassis system requirements.
The housing is made from fibreglass reinforced polybutylene terephthalate, providing strength and durability in harsh automotive environments. The female connector features gold over nickel plated brass contacts which combine excellent electrical conductivity with corrosion resistance. The integral primary terminal locking mechanism ensures reliable contact retention under vibration and thermal cycling.
This Micro Quadlok System connector operates effectively within a broad temperature range of -40 to 120°C, making it suitable for under-hood and vehicle body applications. Polarization and keying features prevent incorrect mating, enhancing system reliability. Sealed variants are available to provide waterproof connections with additional wire seals purchasable separately.
Typical applications include automotive powertrain controls, safety and security devices, convenience and driver information modules, and body and chassis electrical systems.
The connector is designed for cable mount with crimp termination, offering ease of assembly and maintenance. Accessories such as covers, levers, and retainer housings are also offered to complete the system solution.
High density 3-contact 2.54mm pitch design enhances space efficiency. Female grey cable mount housing with robust locking lances. Durable fibreglass reinforced polybutylene terephthalate material. Gold over nickel plating on brass contacts for longevity.
Wide operating temperature range from -40°C to 120°C. Polarization and keying prevent mismating and improve safety. Sealed options for waterproof applications with optional wire seals. Suitable for automotive powertrain, safety, chassis, and convenience systems.
EnvMart provides this high-quality TE Connectivity Micro Quadlok System connector as part of our broad Automotive Connector category, ideal for industrial, automotive, commercial, and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this connector is 7.5A.
This model operates effectively within a temperature range of -40°C to 120°C.
The housing is made from fibreglass reinforced polybutylene terephthalate, and the contacts are brass with gold over nickel plating.
This connector features 3 contacts.
It uses crimp termination for secure connections.
The dimensions are 15.3mm in height, 20mm in width, and 24.2mm in depth.
Yes, it includes polarization and keying features to prevent mismating.
Yes, sealed versions are available for waterproof protection with optional wire seals.
It is suitable for automotive powertrain controls, safety and security devices, and body and chassis electrical systems.
This connector is female.
The Micro Quadlok System offers high-density interconnection with a 2.54mm pitch, enhancing space efficiency and reliability.
The country of origin for this connector is India.
