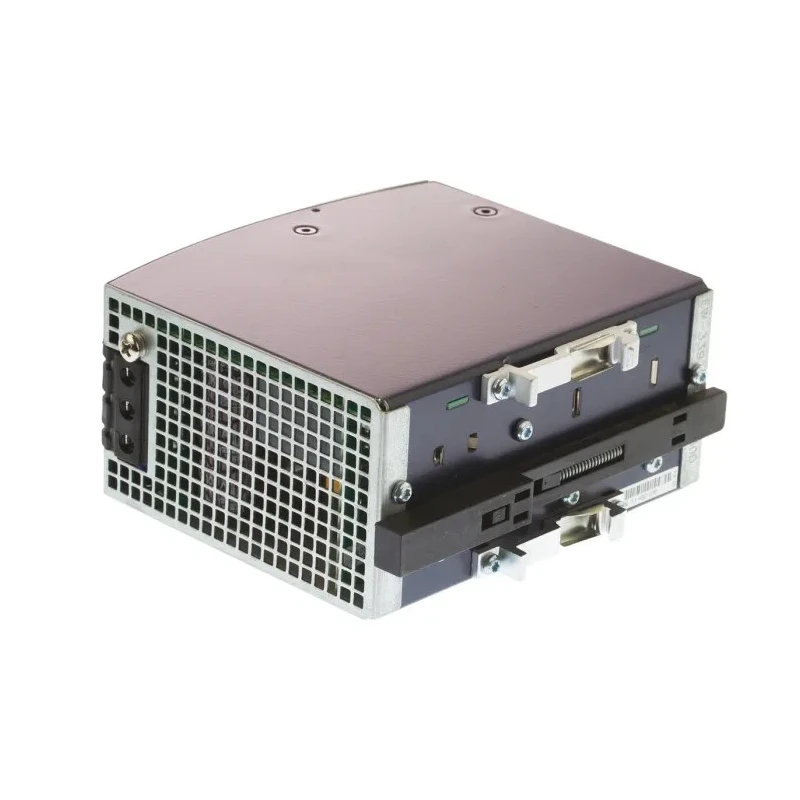

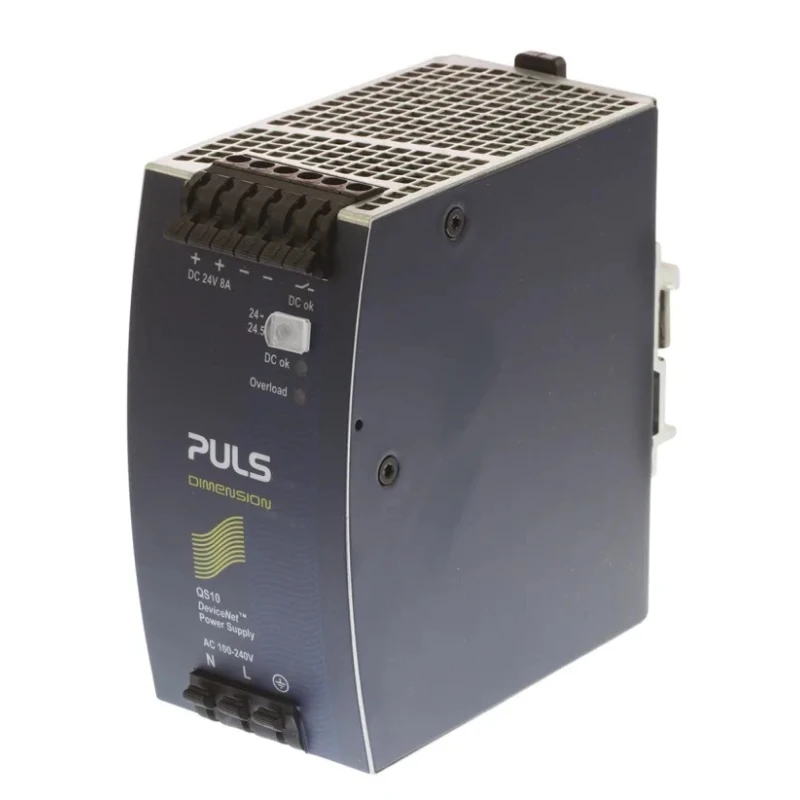

PULS DIMENSION Switched Mode DIN Rail Power Supply 240V AC Input 24.5V DC, 8A Output, 192W QS10.DNET
Specifications
| Country of Origin | China |
|---|---|
| Brand | PULS |
| Power | 192W |
| Height | 124mm |
| Model | QS10.DNET |
| Depth | 117mm |
| IP Rating | IP20 |
| Width | 60mm |
| Series | DIMENSION |
| Output Current | 8A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 240V ac |
| Electrical Phase | 1 |
| Maximum Output Voltage | 24.5V dc |
| Minimum Input Voltage | 100V ac |
Key Features
- Compact DIN rail design suitable for industrial and automation applications.
- Wide input voltage range from 100V AC to 240V AC for versatile usage.
- High efficiency with low electromagnetic emissions.
- IP20 protection rating for safe indoor operation.
- Operating temperature range from -25°C to 70°C ensures performance in harsh environments.
- Equipped with DC-ok relay contact and LED indicators for easy diagnostics.
- Quick-connect spring-clamp terminals allow fast and secure wiring.
- Supports parallel and serial operation for scalability.
Product Description
PULS QS10.DNET is a switched mode DIN rail power supply in the DIMENSION series, providing a stable 24.5V DC output at 8A current with a maximum power rating of 192W. It accepts a single-phase AC input voltage range from 100V to 240V, suitable for various electrical environments.
This compact power supply features a robust design with dimensions of 124mm height, 60mm width, and 117mm depth, designed for efficient space utilization inside control panels.
The device offers IP20 ingress protection, making it apt for indoor industrial use including automation, manufacturing equipment, and control cabinets. It operates reliably between -25°C to 70°C ambient temperatures, assuring performance in demanding conditions.
Built-in active power factor correction and minimal inrush current reduce disturbances and improve energy efficiency. The power supply is equipped with diagnostic features like a green DC-ok LED indicator, red overload LED, and a dry contact for remote status monitoring.
Quick-connect spring clamp terminals facilitate fast installation while supporting parallel and serial configurations to meet higher power demands. The model QS10.DNET also provides transient surge immunity and complies with international standards, making it ideal for industrial, laboratory, HVAC, manufacturing, and water treatment applications.
Manufactured in China, the PULS DIMENSION QS10.DNET power supply combines advanced technology and practical features to ensure secure, stable, and efficient power delivery in DIN rail-mounted applications.
Compact DIN rail power supply design with 192W output power. Wide input voltage range of 100-240V AC supports global applications. High efficiency and low EMI ensure reliable operation. Temperature range from -25°C to 70°C for harsh conditions.
IP20 rated for secure installation in electrical enclosures. LED indicators and relay contact for operational diagnostics. Convenient spring-clamp terminals for easy wiring. Supports parallel and serial operation for power scalability.
Compliance with global standards and surge protection. Explore more power supplies and DIN rail mounted devices in the Electronics & Electricals category at EnvMart.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The QS10.DNET provides a stable output voltage of 24.5V DC with a maximum output current of 8A.
It accepts a single-phase AC input voltage range from 100V to 240V.
The dimensions of this model are 124mm in height, 60mm in width, and 117mm in depth.
The maximum power rating of this power supply is 192W.
It operates reliably within a temperature range of -25°C to 70°C.
The QS10.DNET has an IP20 ingress protection rating, suitable for indoor use.
Yes, it supports both parallel and serial operation for scalability in power demands.
It includes a green DC-ok LED indicator, a red overload LED, and a dry contact for remote status monitoring.
It is equipped with quick-connect spring-clamp terminals for fast and secure wiring.
It is suitable for various applications including industrial, laboratory, HVAC, manufacturing, and water treatment.
This power supply is manufactured in China.
The QS10.DNET operates on a single electrical phase.
