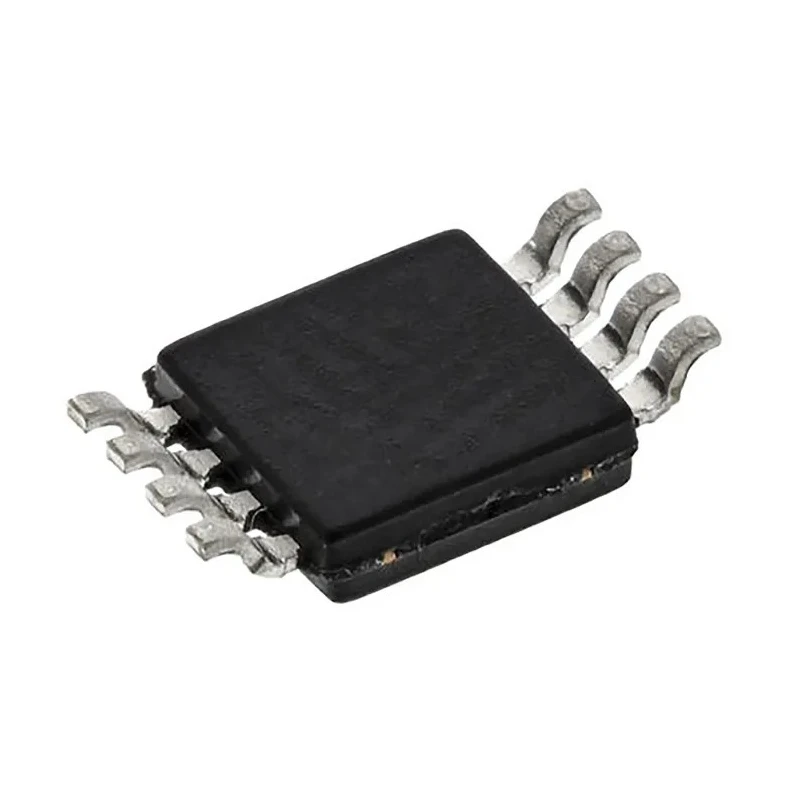

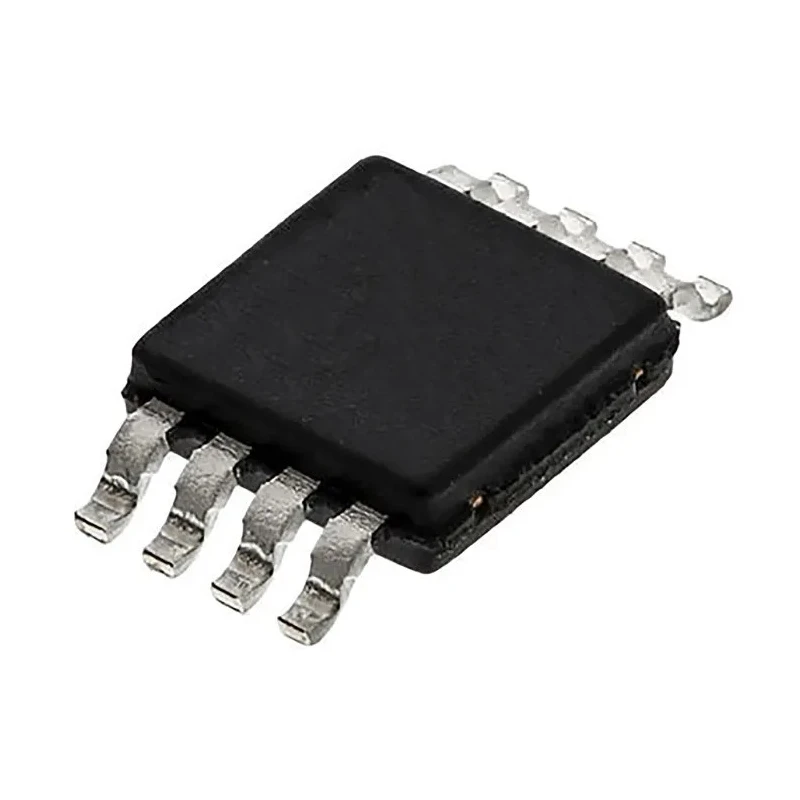

Microchip 12 bit 2-Channel Digital to Analogue Converter DAC MCP4822-E/MS
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Microchip |
| Height | 1.7mm |
| Length | 4.9mm |
| Model | MCP4822-E/MS |
| Width | 3.9mm |
| Mount Type | Surface |
| Settling Time | 4.5μs |
| Output type | Analogue Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Interface Type | Microwire, SPI |
| Architecture | Resistor String |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 5V |
Key Features
- 12 bit resolution ensures precise analogue output voltage.
- Dual channel design allows simultaneous output on two lines.
- Uses resistor string architecture for DAC conversion.
- Surface mount MSOP package with 8 pins for compact PCB designs.
- Supports supply voltages from 5V to 5.5V with internal voltage reference.
- Operating temperature range from -40°C to 125°C ensures reliability in harsh environments.
- Fast settling time of 4.5 microseconds for rapid signal changes.
- Microwire and SPI interface type for flexible MCU communication.
Product Description
Microchip MCP4822-E/MS is a high-precision 12 bit 2-channel Digital to Analogue Converter (DAC) designed for surface mount applications. This DAC features a resistor string architecture delivering accurate and stable analogue output voltages over a supply voltage range of 5 to 5.5 volts, utilizing an internal voltage reference for ease of use. Its compact 8-pin MSOP package is optimized for efficient PCB layout in space-constrained environments.
The device supports both Microwire and SPI protocols, enabling robust communication with microcontrollers and processors in embedded electronics, industrial control systems, instrumentation, and signal processing units. It offers a fast settling time of 4.5 microseconds, suitable for applications requiring swift voltage transitions.
With an operating temperature range from -40 degrees Celsius to 125 degrees Celsius, the MCP4822-E/MS is well-suited for demanding and variable industrial and commercial conditions. Note that this product does not carry automotive standard approvals.
12 bit resolution ensures precise output control. Dual output channels for versatile analogue signal generation. Resistor string architecture offers simple and reliable DAC functionality. Surface mount MSOP package minimizes board space usage.
Internal voltage reference simplifies design requirements. Wide operating temperature supports industrial environments. Fast settling time allows for dynamic signal applications. Supports industry-standard Microwire and SPI communication protocols.
Compact physical dimensions facilitate integration into small electronics. Ideal for laboratory instrumentation, industrial automation, and embedded systems.
Explore our Electronics & Electricals category for more Microchip semiconductors and Digital to Analogue Converter solutions, optimized for diverse industrial, laboratory, and manufacturing applications.
