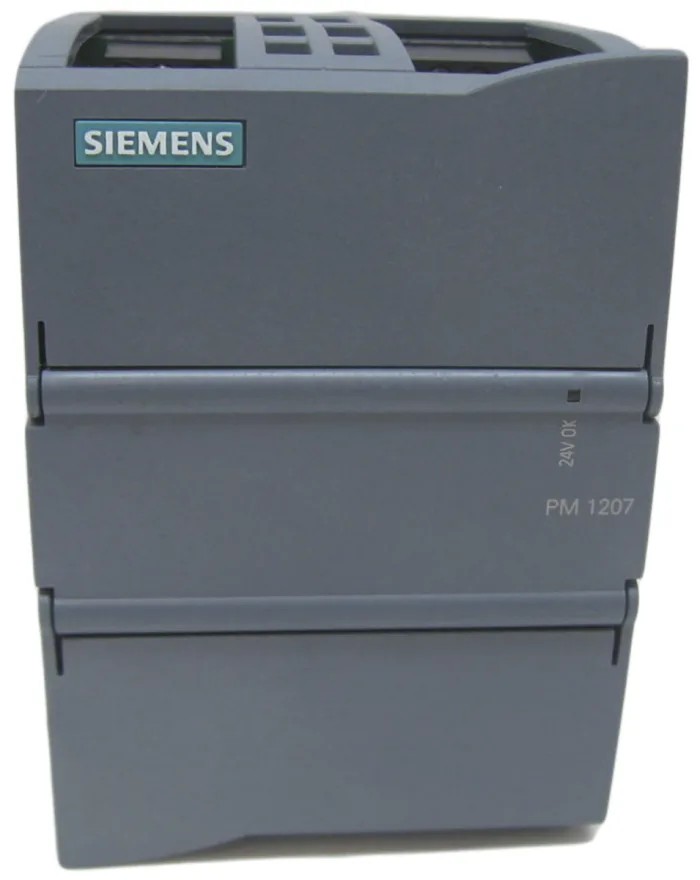

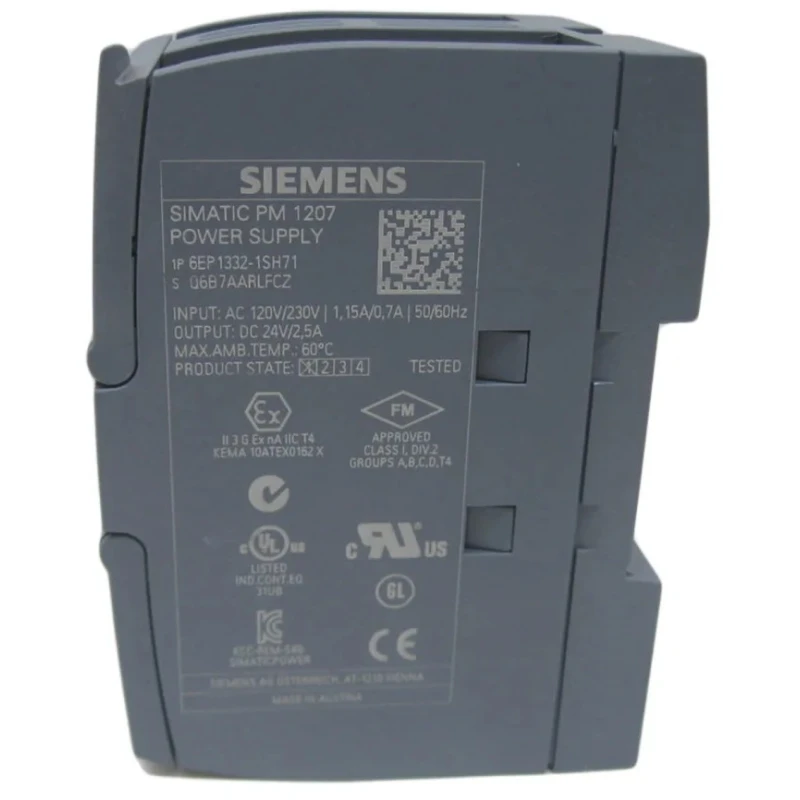

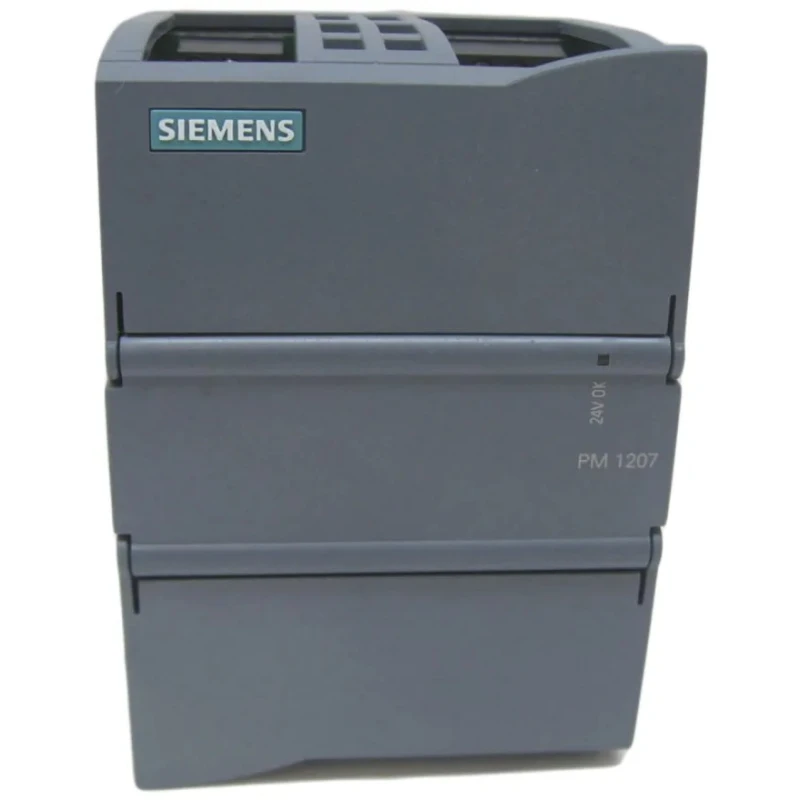

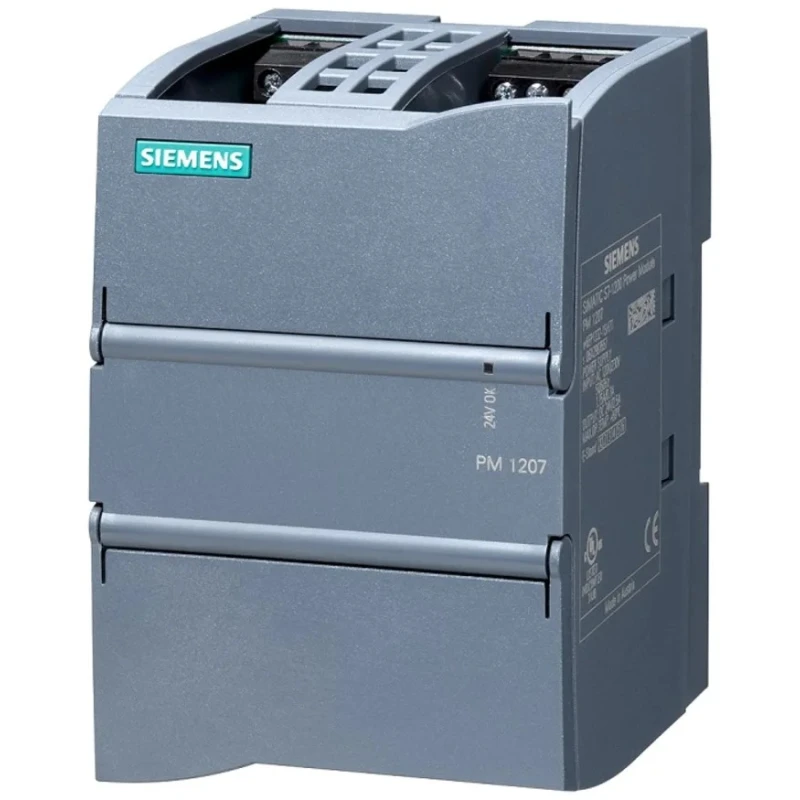

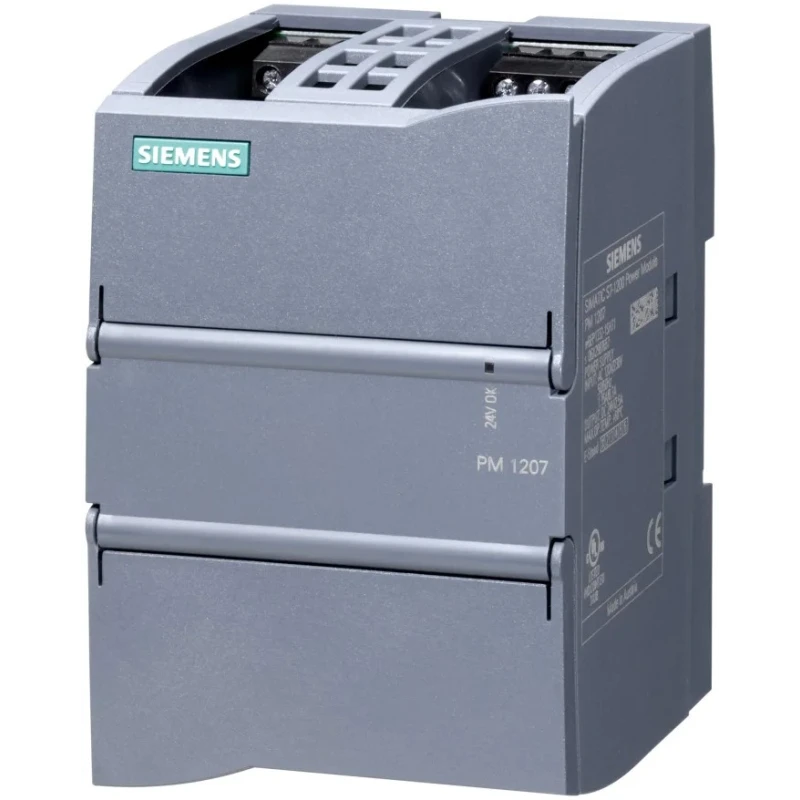

Siemens SIMATIC S7-1200 Switched Mode DIN Rail Power Supply 132V AC Input 24V DC 2.5A Output 60W 6EP1332-1SH71
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | Siemens |
| Power | 60W |
| Efficiency | 83% |
| Height | 100mm |
| Model | 6EP1332-1SH71 |
| Depth | 75mm |
| IP Rating | IP20 |
| Width | 70mm |
| Series | SIMATIC S7-1200 |
| Output Current | 2.5A |
| Maximum Operating Temperature | 60°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | 0°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 132V ac |
| Electrical Phase | 1 |
| Hazardous Area Certification | ATEX |
| Maximum Output Voltage | 24V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- This unit supports 132V AC maximum input voltage with a wide input range of 85V AC minimum.
- Compact dimensions of 100mm height, 70mm width, and 75mm depth suit limited space installations.
- IP20 rated for protection against dust and objects greater than 12mm.
- Operating temperature range is from 0°C up to 60°C, suitable for industrial environments.
- Integrated overload and short-circuit protection via circuit breaker enhances reliability.
- Screw-type terminals enable secure and simple installation on DIN rails.
- Maximum output voltage is stabilized at 24V DC with a single output.
- Efficiency rated at 83% ensures effective energy conversion.
Product Description
Siemens 6EP1332-1SH71 SIMATIC S7-1200 switched mode DIN rail power supply is designed for reliable energy distribution in industrial and hazardous area applications. It converts AC input voltage in the range of 85V to 132V into stabilized 24V DC output at 2.5A delivering 60W power suitable for controlling and automation equipment.
The unit features a compact form factor measuring 100mm (H) x 70mm (W) x 75mm (D), ideal for space-limited control cabinets. Its robust thermoplastic housing provides impact resistance and excellent electrical insulation ensuring user safety.
Designed for demanding industrial environments, this power supply has an ingress protection rating of IP20, shielding the internal components from dust and larger objects. It operates efficiently at 83% conversion rate, optimizing energy use and minimizing heat generation.
Included protections such as integrated circuit breakers guard against overloads and short circuits, enhancing operational reliability. The screw-type terminals provide secure and easy wiring installation compatible with standard DIN rail mounts.
The device is ATEX certified for safe use in hazardous zones such as chemical and gas processing plants. It is built to operate continuously within ambient temperatures ranging from 0°C to 60°C, ensuring resilience in varied industrial conditions.
This power supply supports a single output channel delivering precise 24V DC at 2.5A. Its wide AC input voltage range provides stability during voltage fluctuations. Compact dimensions are optimized for efficient panel integration.
IP20 rating protects against dust ingress and user contact with live parts. ATEX certification confirms suitability for hazardous environments. Thermoplastic casing offers insulation and mechanical durability. Integrated overload and short circuit protection ensures operational safety.
Easy installation via screw terminals on DIN rail backbone. Manufactured in Romania with high-quality standards.
Commonly used in industrial automation, manufacturing plants, chemical plants, and HVAC control systems, the Siemens SIMATIC S7-1200 power supply is a reliable component for stable DC power delivery. For additional AC/DC power supply needs, look into Siemens PLC Power Supply SIPLUS PM 1207 series and other compatible Siemens products.
Browse the Electronics & Electricals category on EnvMart for more power supplies and automation products.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 132V AC.
It provides a stabilized output voltage of 24V DC with a current of 2.5A.
The efficiency of this power supply is rated at 83%.
This unit has compact dimensions of 100mm in height, 70mm in width, and 75mm in depth.
It operates within a temperature range of 0°C to 60°C.
It includes integrated overload and short-circuit protection via a circuit breaker.
Installation is done using screw-type terminals, which allow for secure wiring on DIN rails.
The power supply has an IP20 rating, providing protection against dust and objects larger than 12mm.
It is manufactured in Romania.
It is commonly used in industrial automation, manufacturing plants, chemical plants, and HVAC control systems.
The model number is 6EP1332-1SH71.
This power supply is ATEX certified for safe use in hazardous zones such as chemical and gas processing plants.
