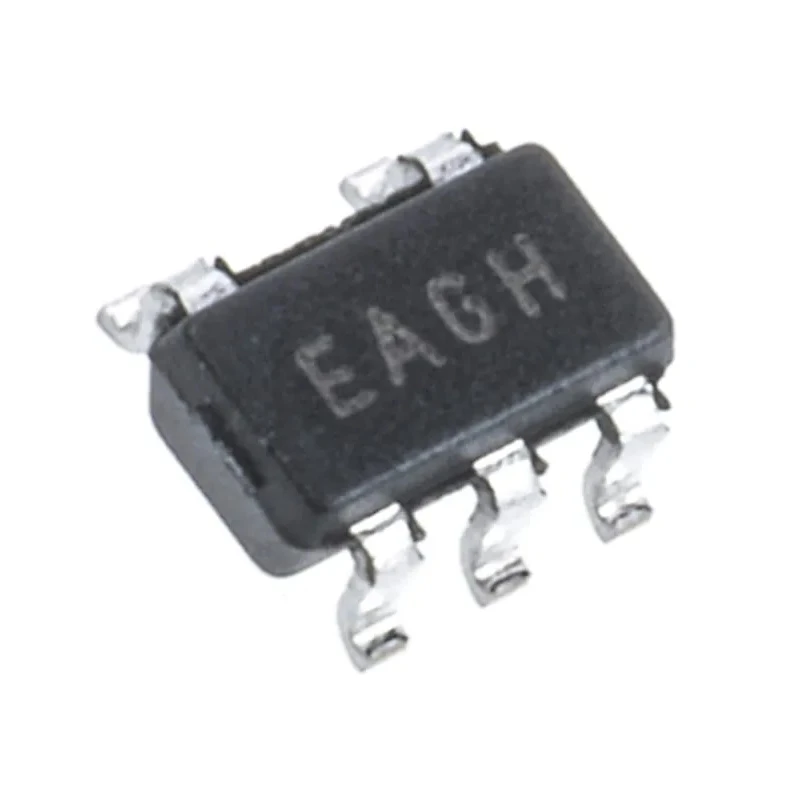

Microchip Operational Amplifier 10 kHz 5-Pin SOT-23 3V-5.5V MCP6031T-E/OT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | MCP6031T-E/OT |
| Width | 1.8mm |
| Mount Type | Surface |
| Series | MCP6031 |
| Output Current | 23mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 10kHz |
| Input Bias Current | 100 pA |
| Slew Rate | 4000V/μs |
| Input Offset Current | 1 pA |
| Microchip, Operational Amplifier, 10 kHz, 5-Pin 5.5V SOT-23Brand | Microchip |
Key Features
- Single channel operational amplifier designed for precision applications.
- Operates with a supply voltage range from 3V to 5.5V.
- Gain Bandwidth Product rated at 10 kHz suitable for low frequency amplification.
- Low input bias current of 100 pA enhances signal accuracy.
- Wide operating temperature range from -40°C to 125°C supports automotive environments.
- Compact SOT-23 package with 1.3mm height, 3.1mm length, and 1.8mm width.
- Complies with RoHS standards ensuring environmental safety.
- Automotive qualified to AEC-Q100 standard for reliability.
Product Description
Microchip MCP6031T-E/OT is a single-channel operational amplifier designed for precision, low power applications requiring moderate bandwidth. Operating within a supply voltage range of 3V to 5.5V, this device is ideal for industrial, automotive, and laboratory electronics where reliable signal amplification is crucial.
The device is packaged in a compact 5-pin SOT-23 surface mount package with dimensions 3.1mm length, 1.8mm width, and 1.3mm height. It supports a wide operating temperature from -40°C to 125°C, assuring performance in harsh automotive and industrial environments. The amplifier’s gain bandwidth product (GBP) is 10 kHz, suitable for low frequency analog signal processing.
With an input bias current of only 100 pA and an input offset current of 1 pA, the MCP6031T-E/OT ensures minimal signal distortion and high accuracy in measurement applications. Its slew rate of 4000 V/μs allows it to respond quickly to rapid input changes. The device outputs up to 23 mA, making it capable of driving modest external loads.
This amplifier conforms to the AEC-Q100 automotive qualification standard and RoHS environmental compliance, making it suitable for embedded automotive control systems and environmentally conscious product designs.
Applications include signal conditioning, sensor amplification, data acquisition systems, automotive electronics, and general-purpose amplification in consumer and industrial devices.
Single channel operational amplifier designed for precision applications. Operates with a supply voltage range from 3V to 5.5V. Gain Bandwidth Product rated at 10 kHz suitable for low frequency amplification. Low input bias current of 100 pA enhances signal accuracy.
Wide operating temperature range from -40°C to 125°C supports automotive environments. Compact SOT-23 package with 1.3mm height, 3.1mm length, and 1.8mm width. Complies with RoHS standards ensuring environmental safety. Automotive qualified to AEC-Q100 standard for reliability.
Slew rate of 4000 V/μs provides quick response to input changes. Output current capability of 23 mA enables driving moderate load.
EnvMart provides this Microchip MCP6031T-E/OT Operational Amplifier as part of its comprehensive electronic components portfolio supporting industrial, laboratory, automotive, and commercial electronics manufacturing sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This operational amplifier operates with a supply voltage range from 3V to 5.5V.
The gain bandwidth product (GBP) of the MCP6031T-E/OT is rated at 10 kHz, suitable for low frequency amplification.
It has a low input bias current of 100 pA, which enhances signal accuracy.
The SOT-23 package has a length of 3.1mm, a width of 1.8mm, and a height of 1.3mm.
The maximum operating temperature for this model is 125°C.
It can output up to 23 mA, making it capable of driving moderate external loads.
The slew rate is 4000 V/μs, allowing it to respond quickly to rapid input changes.
It is automotive qualified to the AEC-Q100 standard for reliability.
The minimum operating temperature is -40°C, supporting performance in harsh environments.
This operational amplifier is suitable for applications such as signal conditioning, sensor amplification, and data acquisition systems.
Yes, it complies with RoHS standards, ensuring environmental safety.
The MCP6031T-E/OT is a single-channel operational amplifier.
