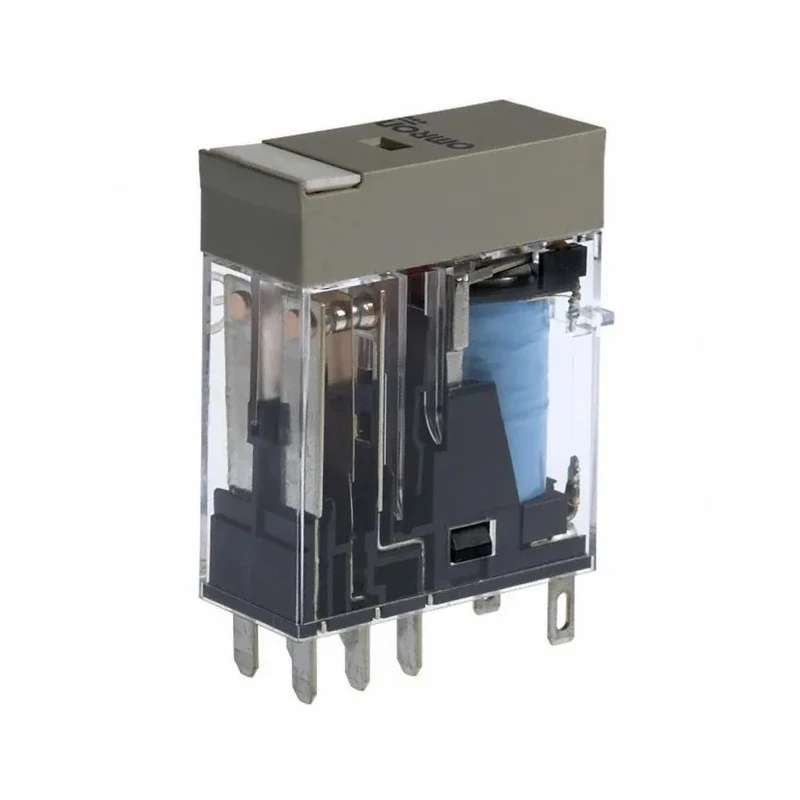

Omron PCB Relay, 12V Coil, 5A Switching Current, DPDT Contact Configuration G2R-2-S 12VDC (S)
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Omron |
| Height | 35.5mm |
| Length | 29mm |
| Model | G2R-2-S 12VDC (S) |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Tin Indium |
| Series | G2R |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Plug-In |
| Contact Resistance | 50mΩ |
| Standards/Approvals | UL, CSA |
| Coil Resistance | 278Ω |
| Coil Voltage | 12V |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V |
| Coil Power | 0.53W |
| Switching Power | 600mW |
Key Features
- Operates at a nominal coil voltage of 12 volts DC.
- Features a dual-pole double-throw (DPDT) contact configuration for independent circuit switching.
- Supports switching currents up to 5 amperes for moderate load applications.
- Designed for PCB mounting with plug-in terminals for easy installation and replacement.
- Coil resistance is 278 ohms with coil power consumption of 0.53 watts to minimize drive energy.
- Compact dimensions measuring 35.5mm height, 29mm length, and 13mm width.
- Certified to UL and CSA standards ensuring recognized safety compliance.
- Operates reliably in ambient temperatures from -40°C to 70°C.
Product Description
Omron G2R-2-S 12VDC (S) PCB Relay is an electromechanical switching device designed for control and signal applications in industrial environments. It operates with a 12V coil voltage and supports 5A switching currents with a DPDT contact configuration for dual-circuit control. The relay is intended for PCB mounting and provides plug-in terminals for ease of replacement and installation.
This compact relay measures 35.5mm in height, 29mm in length, and 13mm in width, making it suitable for space-constrained applications. With a coil resistance of 278 ohms and power consumption of just 0.53W, it requires low drive energy while maintaining reliable operation across a wide temperature range from -40°C to 70°C.
The contact material consists of Silver Tin Indium, which ensures high electrical endurance. The contact resistance is specified at 50mΩ, supporting low voltage signal integrity. Certified to industrial safety standards UL and CSA, this relay guarantees recognized compliance and reliability in various industrial and automation use cases.
Ideal applications include machine control panels needing dual-circuit switching, signal routing in automation systems and PLC interfaces, controlled AC and DC switching in test equipment, and small motor starter control and relay logic networks.
Operates on a 12V DC coil voltage for industrial control applications. Dual-pole double-throw (DPDT) contact arrangement enables independent switching of two circuits. Supports switching currents up to 5 amperes at voltages up to 380V AC and 125V DC.
PCB mounting design with plug-in terminal connectivity simplifies installation and maintenance. Compact size suits confined spaces in control panels and equipment. Low coil power consumption of 0.53 watts reduces drive energy requirements.
Wide operating temperature of -40°C to 70°C ensures use in harsh conditions. Certified UL and CSA for safety and performance compliance. Durable Silver Tin Indium contact material enhances relay longevity. Low contact resistance maintains signal integrity for sensitive control circuits.
Browse more Power Relays and industrial automation components in the Electronics & Electricals category on EnvMart for superior quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a nominal coil voltage of 12 volts DC.
It supports switching currents up to 5 amperes.
This model features a dual-pole double-throw (DPDT) contact configuration for independent circuit switching.
The relay has compact dimensions measuring 35.5mm in height, 29mm in length, and 13mm in width.
The contact material consists of Silver Tin Indium, which enhances electrical endurance.
The coil resistance is specified at 278 ohms.
It operates reliably in ambient temperatures ranging from -40°C to 70°C.
It features plug-in terminals for easy installation and replacement.
This model is certified to UL and CSA standards, ensuring recognized safety compliance.
The coil power consumption is 0.53 watts, which helps minimize drive energy requirements.
It supports switching voltages up to 380V AC and 125V DC.
It is suitable for applications including machine control panels, signal routing in automation systems, and small motor starter control.
