Omron Signal Relay Surface Mount DPDT 12V DC Coil 1A Switching Current G5V-2-H DC12

Free Delivery in India | Lowest Global Shipping Charges

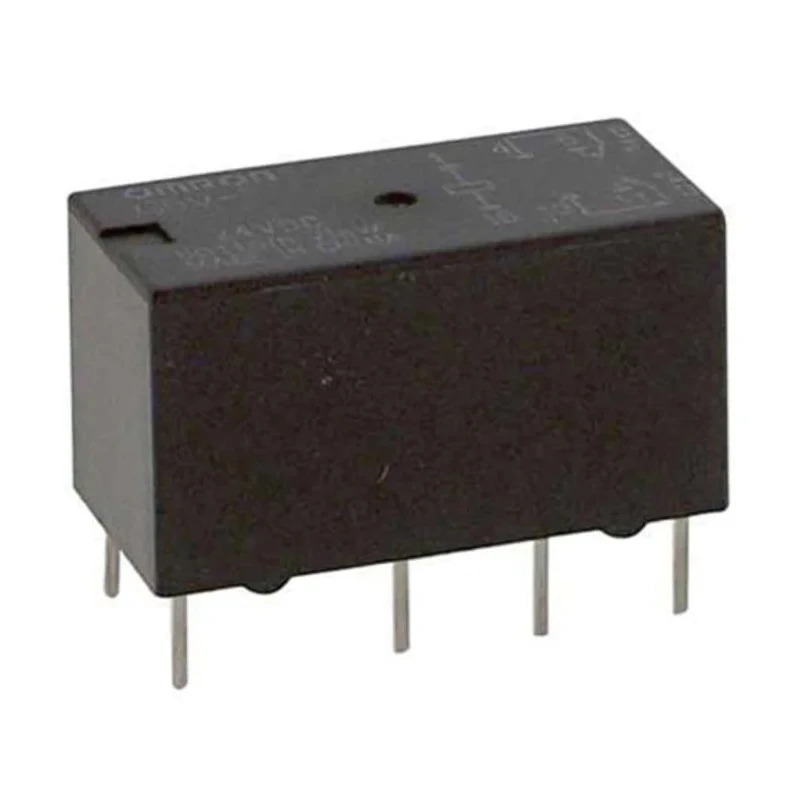

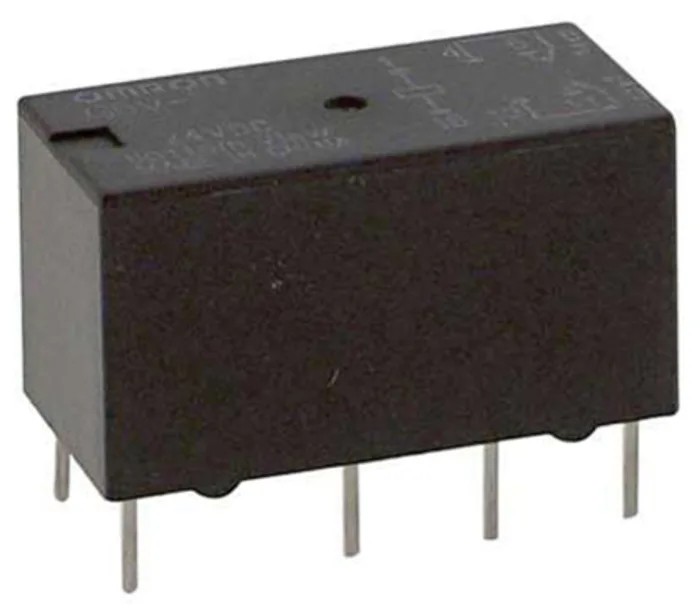

Omron Signal Relay Surface Mount DPDT 12V DC Coil 1A Switching Current G5V-2-H DC12

Name: Omron Signal Relay Surface Mount DPDT 12V DC Coil 1A Switching Current G5V-2-H DC12
Brand: Omron
SKU: 345369
Price: 4.29 USD
Availability: InStock



Category Signal Relay Brand Omron Condition New

Specifications

Country of Origin	India
Brand	Omron
Height	11.5mm
Length	20.5mm
Model	G5V-2-H DC12
Width	10mm
Mount Type	Surface
Contact Material	Gold Plated
Series	G5V
Maximum Operating Temperature	70°C
Contact Configuration	DPDT
Minimum Operating Temperature	-25°C
Switching Current	1A
Terminal type	PCB Terminal
Standards/Approvals	RoHS
Coil Resistance	960Ω
Coil Voltage	12V dc
Switching DC Voltage	125V dc
Switching AC Voltage	125V ac
Coil Power	150mW
TE Connectivity Surface Signal Relay, 12V dc Coil, 2A, DPDTBrand	TE Connectivity

Key Features

Features a coil voltage of 12V DC for reliable operation.
Contact configuration is Double Pole Double Throw (DPDT) for versatile switching.
Designed for surface mount PCB installation with PCB terminals.
Handles switching voltage up to 125V AC and 125V DC.
Coil resistance of 960 ohms and coil power consumption of 150mW.
Gold-plated contacts ensure enhanced conductivity and durability.
Operating temperature range from -25°C to 70°C, suitable for various environments.
Fully sealed construction conforming to FCC Part 68 requirements.

Product Description

Omron G5V-2-H DC12 surface signal relay is a high-quality miniature relay designed for sensitive signal circuits requiring reliable switching. It features a 12V DC coil and double pole double throw (DPDT) contact configuration for versatile signal routing applications. This relay is surface mount compatible with PCB terminal type connections facilitating straightforward PCB integration.

The relay can switch currents up to 1 ampere and voltages up to 125V AC or DC, making it suitable for a broad range of low power industrial, electronics, and automation control applications. With coil resistance of 960 ohms and a coil power rating of only 150mW, it offers efficient energy consumption during operation.

Gold-plated contacts provide excellent electrical conductivity and resist corrosion, contributing to long service life and stable operation. The compact form factor (20.5mm length x 10mm width x 11.5mm height) conserves PCB space in densely packed electronic assemblies.

Operating reliably within a temperature range from -25°C to 70°C, this relay is capable of performing in varied industrial and laboratory environments. It features a fully sealed design that meets FCC Part 68 requirements, ensuring protection against environmental contaminants.

Coil Voltage: 12V DC for precision operation. DPDT contact configuration allows multiple switching options. Surface mount type with PCB terminals for easy PCB integration. Switching Current of 1A suitable for small signal loads.

Switching Voltage up to 125V AC/DC for versatile applications. Gold plated contacts enhance conductivity and durability. Fully sealed relay construction for reliable environmental protection. Complies with RoHS directives and has UL and CSA approvals.

Compact miniature design saves circuit board space.

This Omron signal relay is ideal for use in industrial control systems, automation equipment, communication devices, instrumentation, and other electronic assemblies requiring precise and reliable signal switching. Its robust construction and approved standards ensure compliance and durability in demanding applications.
