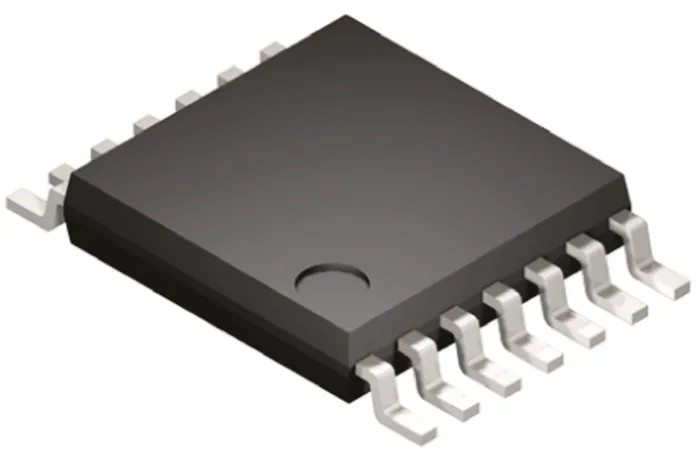

Microchip Operational Amplifier 1 MHz, 4-Channel, 14-Pin TSSOP Package, 1.8-6V MCP6004-E/ST
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 5.1mm |
| Model | MCP6004-E/ST |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | MCP6004 |
| Output Current | 23mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 1.8V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 19 pA |
| Vos - Input Offset Voltage | 4.5 mV |
| Slew Rate | 0.6V/μs |
| Input Offset Current | 1 pA |
Key Features
- Operates at a supply voltage range from 1.8V to 6V.
- Features a low input bias current of 19 pA for precision signal amplification.
- Includes 4 channels with a 14-pin TSSOP package for compact PCB integration.
- Gain bandwidth product is 1 MHz, suitable for general-purpose signal conditioning.
- Wide operating temperature range from -40°C to 125°C for industrial reliability.
- Input offset voltage of 4.5 mV ensures accurate voltage amplification.
- Slew rate of 0.6 V/μs supports moderate signal-speed applications.
- Output current capability up to 23 mA for driving various loads.
Product Description
Microchip MCP6004-E/ST is a high-performance operational amplifier designed for surface mount applications with a 14-pin TSSOP package and four independent channels. It is engineered to provide a stable gain bandwidth of 1 MHz and operates reliably across a broad voltage range from 1.8V up to 6V.
This amplifier is ideal for use in industrial, laboratory, and electronic manufacturing fields where precise signal conditioning and amplification are necessary. Its low input bias current of 19 pA and low input offset voltage of 4.5 mV contribute to high accuracy in measurement and control systems.
The device exhibits a slew rate of 0.6 V/μs, enabling it to handle moderately fast input signal changes while maintaining output fidelity. With an output current capacity of 23 mA, it can drive a variety of loads directly.
The MCP6004 series meets RoHS compliance standards, ensuring it adheres to current environmental regulations. Its compact 14-pin TSSOP package with dimensions of 5.1mm length, 4.5mm width, and 1.05mm height facilitates efficient PCB layout in space-sensitive designs.
Operating temperature range from -40°C to 125°C guarantees dependable performance even in harsh industrial or commercial environments. Operates at supply voltages from 1.8V to 6V. Low input bias current of 19 pA enhances precision.
Four channels available in one package for multi-signal amplification. Gain bandwidth product of 1 MHz for versatile amplification. Wide temperature range suitable for industrial applications. Low input offset voltage for accurate output.
Moderate slew rate for stable signal processing. Output current up to 23 mA for direct load driving. RoHS compliant. Compact dimensions allow tight PCB integration.
This Operational Amplifier is commonly used in electronics manufacturing, laboratory instrumentation, industrial control systems, and other precision applications. Its blend of moderate frequency response and low power operation makes it a solid component choice in analog signal processing.
Explore more Microchip electronic components and amplifiers at EnvMart for trusted quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the MCP6004-E/ST is 1 MHz, making it suitable for general-purpose signal conditioning applications.
This operational amplifier operates at a supply voltage range from 1.8V to 6V.
It features four independent channels, allowing for multi-signal amplification in a single package.
The input bias current of this model is 19 pA, which enhances precision in signal amplification.
It has an output current capability of up to 23 mA, enabling it to drive various loads directly.
The dimensions of the TSSOP package are 5.1 mm in length, 4.5 mm in width, and 1.05 mm in height.
The operating temperature range is from -40°C to 125°C, ensuring reliable performance in harsh environments.
The input offset voltage is 4.5 mV, which contributes to accurate voltage amplification.
The slew rate of this operational amplifier is 0.6 V/μs, suitable for moderate signal-speed applications.
Yes, the MCP6004-E/ST meets RoHS compliance standards, adhering to current environmental regulations.
This model is designed for surface mount applications, facilitating compact PCB integration.
It is commonly used in electronics manufacturing, laboratory instrumentation, and industrial control systems for precision signal conditioning.
