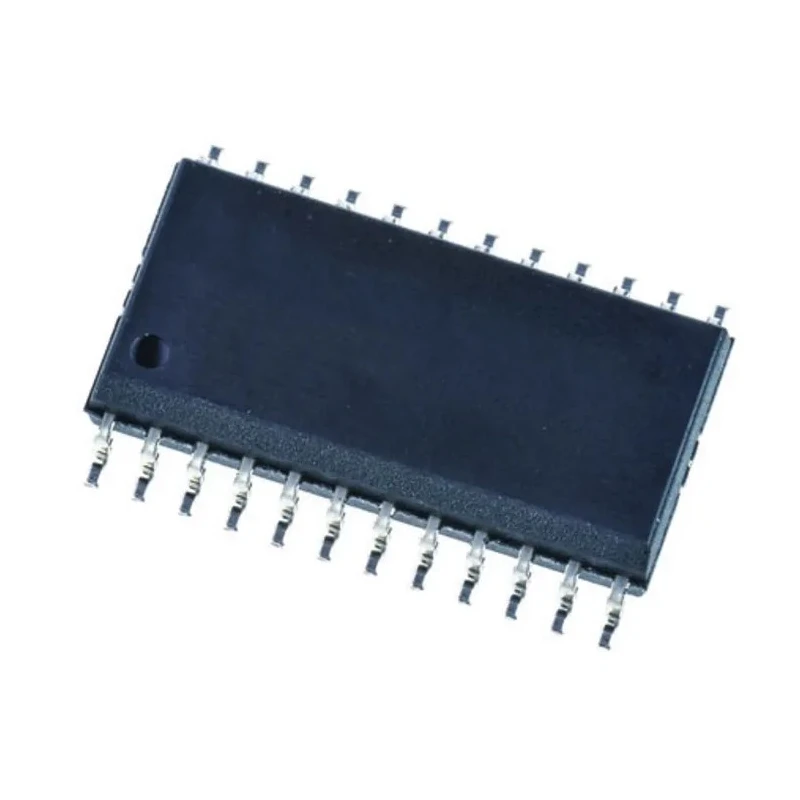

Texas Instruments Decoder, 24-Pin SOIC, Demultiplexer HC Logic Family CD74HC4515M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 2.35mm |
| Length | 15.4mm |
| Model | CD74HC4515M |
| Mount Type | Surface |
| Compatibility | Input CMOS, Output CMOS |
| Number of inputs | 4 |
| Series | CD |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Operating Voltage | 2 to 6 V |
| Pin Count | 24 |
| Maximum Supply Voltage | 6V |
| Logic Family | HC |
| Logic Function | Demultiplexer, Decoder |
| Minimum Supply Voltage | 2V |
Key Features
- Operates with a supply voltage between 2V and 6V.
- Features 4 inputs supporting demultiplexing and decoding functions.
- Constructed with CMOS technology to deliver high speed and low power consumption.
- Operational temperature range between -55°C and 125°C suitable for various industrial applications.
- Surface mount SOIC package with 24 pins for compact and efficient PCB integration.
- Input compatible with CMOS logic signals and output CMOS compatible outputs.
- 15.4 mm length and 2.35 mm height dimensions ensure space-saving design.
- Part of the 74HC4000 series providing pin compatibility with standard LS logic family devices.
Product Description
Texas Instruments CD74HC4515M is a high-speed CMOS decoder and demultiplexer IC in a 24-pin SOIC surface mount package. Belonging to the HC logic family, this device operates efficiently between 2V and 6V supply voltages, providing CMOS compatible input and output logic levels. It features 4 logic inputs capable of demultiplexer and decoder functions, making it ideal for complex digital circuits.
Manufactured using CMOS technology, the CD74HC4515M offers low power consumption while maintaining fast switching speeds comparable to LSTTL devices. Its operating temperature range from -55°C to 125°C allows usage in demanding environments such as industrial automation, electronic instrumentation, and embedded control systems.
The compact SOIC package with a length of 15.4 mm and a height of 2.35 mm supports efficient PCB space utilization. This device is pin-compatible with the standard LS logic family, enabling easy upgrades or replacements in existing designs that require enhanced power efficiency.
The 74HC4000 series to which this product belongs is widely used for implementing decoding and multiplexing logic, facilitating signal routing and data management in digital electronic systems. The surface mount package ensures automated assembly compatibility, boosting production efficiency in electronics manufacturing.
Operates at supply voltage range from 2V to 6V. Provides 4 logic inputs supporting demultiplexer/decoder functions. High-speed CMOS technology for low power consumption and fast switching. Wide operating temperature range from -55°C to 125°C for industrial use.
Compact 24-pin SOIC surface mount package for PCB space saving. Input and output CMOS compatibility for easy interfacing. Pin-compatible with LS logic family devices for design flexibility. Ideal for industrial, laboratory, electronic, and automation applications.
This Texas Instruments CD74HC4515M decoder is suited for applications in instrumentation, industrial control, embedded systems, and digital logic signal processing. Its robust specification and surface mount design allow for high-performance and reliable operation in modern electronic products.
