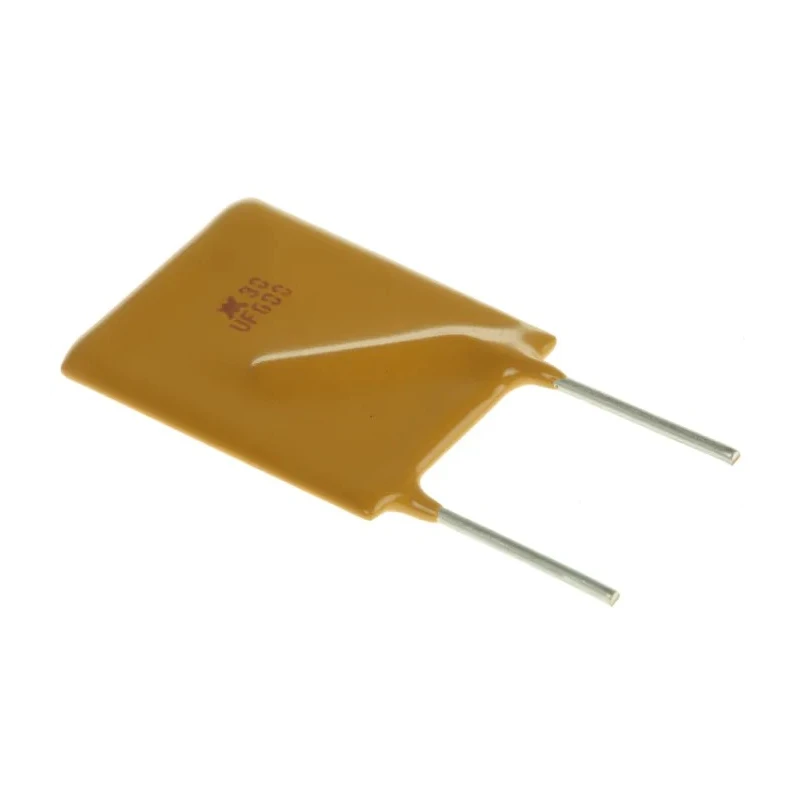

Littelfuse 6 A Resettable Fuse 30V DC Radial Lead RUEF600
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V dc |
| Brand | Littelfuse |
| Height | 24.1mm |
| Length | 16.5mm |
| Model | RUEF600 |
| Width | 3mm |
| Current Rating | 100A |
| Series | RUEF |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Trip Current | 12A |
| Power Dissipation | 3.5W |
| Standards/Approvals | RoHS, UL, CQC, TUV, CSA |
| Time to Trip | 16s |
| Hold Current | 6A |
| Minimum Resistance | 0.005Ω |
| Maximum Resistance | 40mΩ |
| Lead Orientation | Radial |
| RUE polyswitch resettable fuse,6A 30VBrand | TE Connectivity |
Key Features
- Automatically resets thousands of times without replacement.
- Protection against excessive current in electronics and electrical circuits.
- Designed for radial lead orientation to facilitate PCB mounting.
- Supports a trip current of 12A and hold current of 6A.
- Temperature operating range from -40°C to 60°C for versatility.
- Small size with dimensions 16.5mm length, 24.1mm height, and 3mm width.
- Power dissipation up to 3.5W ensuring efficient thermal management.
- Compliance with RoHS, UL, CQC, TUV, and CSA standards.
Product Description
Littelfuse RUEF600 is a 6 A Resettable Fuse designed for DC voltage applications up to 30V. This fuse integrates PolySwitch™ technology, allowing it to protect electrical and electronic circuits against overcurrent conditions by rapidly transitioning from a low resistance state to a high resistance state under fault conditions.
Its radial lead configuration enables easy PCB mounting, and the fuse automatically resets itself thousands of times after fault conditions have been cleared, providing maintenance-free protection without the need for fuse replacement.
The RUEF600 is characterized by a 12A trip current and a 6A hold current, with an operating temperature range from -40°C to 60°C. Its compact size (16.5mm length, 24.1mm height, 3mm width) and power dissipation capacity of 3.5W make it suitable for various embedded systems.
Conforming to RoHS, UL, CQC, TUV, and CSA approvals, this fuse is reliable and safe for use in industrial, security, automotive, medical, instrumentation, and control applications.
Main applications include power supplies, transformers, power switching devices, and audio-visual and telecommunications equipment. Automatically resets thousands of times without replacement. Maintenance free with no fuse holder required.
Small size facilitates compact circuit designs. Complies with multiple international safety standards. Provides rapid response to electrical overloads and short circuits. Suitable for a wide range of electronic and electrical devices.
Radial lead orientation for PCB mounting compatibility. High reliability in automotive and medical equipment applications. Efficient thermal management supporting power dissipation up to 3.5W. Protects circuits by transitioning rapidly to high resistance under fault condition.
Explore more from Littelfuse Resettable Fuses and related electronic components at EnvMart for robust circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for the Littelfuse RUEF600 is 30V DC.
This model has a trip current of 12A and a hold current of 6A.
The operating temperature range for this resettable fuse is from -40°C to 60°C.
The dimensions of this fuse are 16.5mm in length, 24.1mm in height, and 3mm in width.
It protects circuits by rapidly transitioning from a low resistance state to a high resistance state under fault conditions, effectively preventing overcurrent.
This model can dissipate power up to 3.5W, ensuring efficient thermal management.
Yes, it complies with multiple safety standards including RoHS, UL, CQC, TUV, and CSA.
The Littelfuse RUEF600 features a radial lead orientation, which facilitates PCB mounting.
This resettable fuse is suitable for applications in power supplies, transformers, power switching devices, and audio-visual and telecommunications equipment.
The time to trip for the RUEF600 is 16 seconds under fault conditions.
The minimum resistance is 0.005Ω and the maximum resistance is 40mΩ.
The Littelfuse RUEF600 is manufactured in India.
