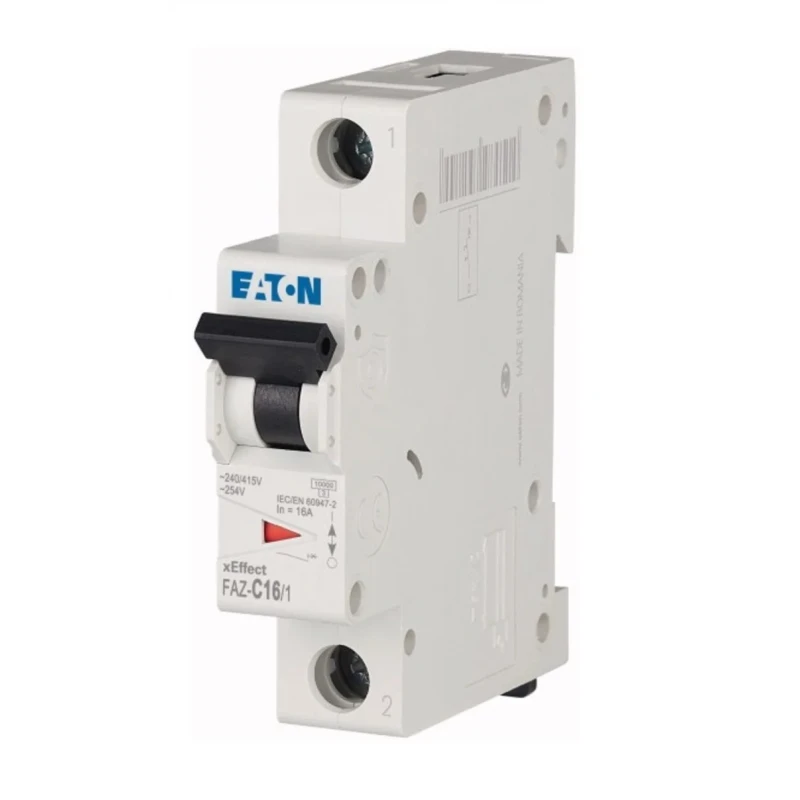

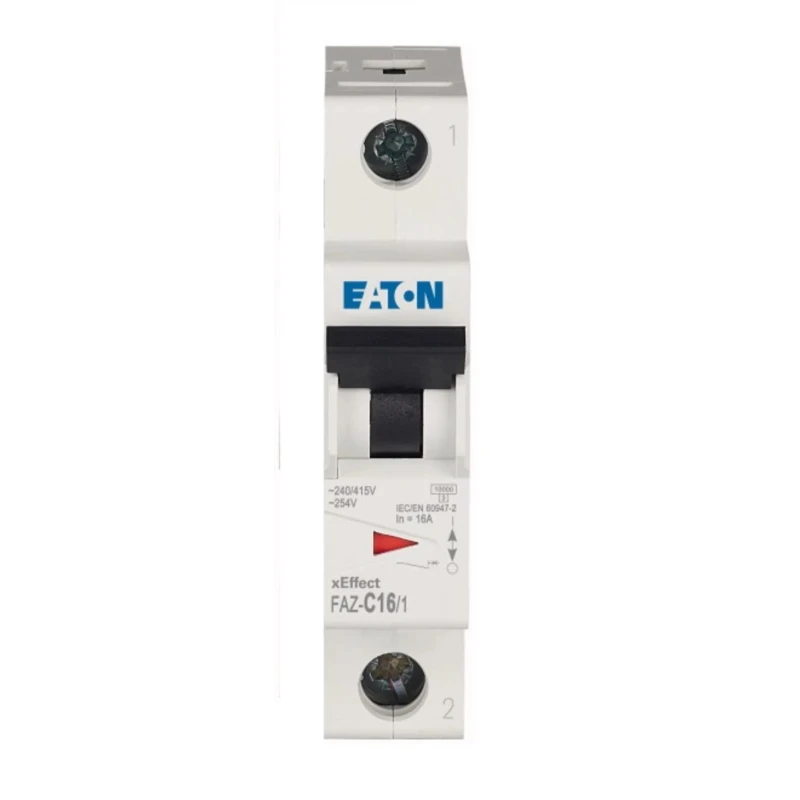

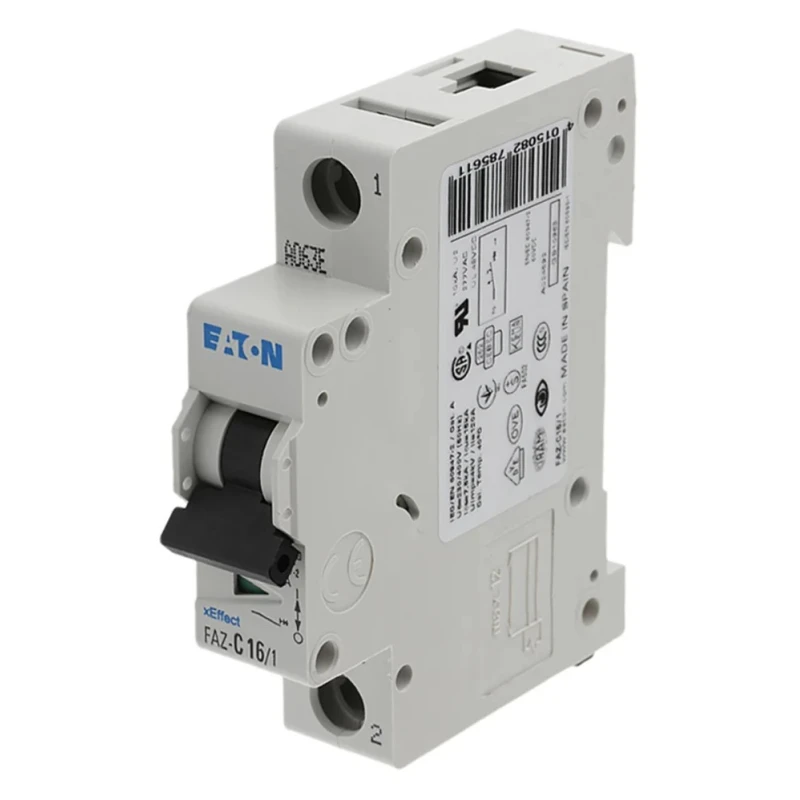

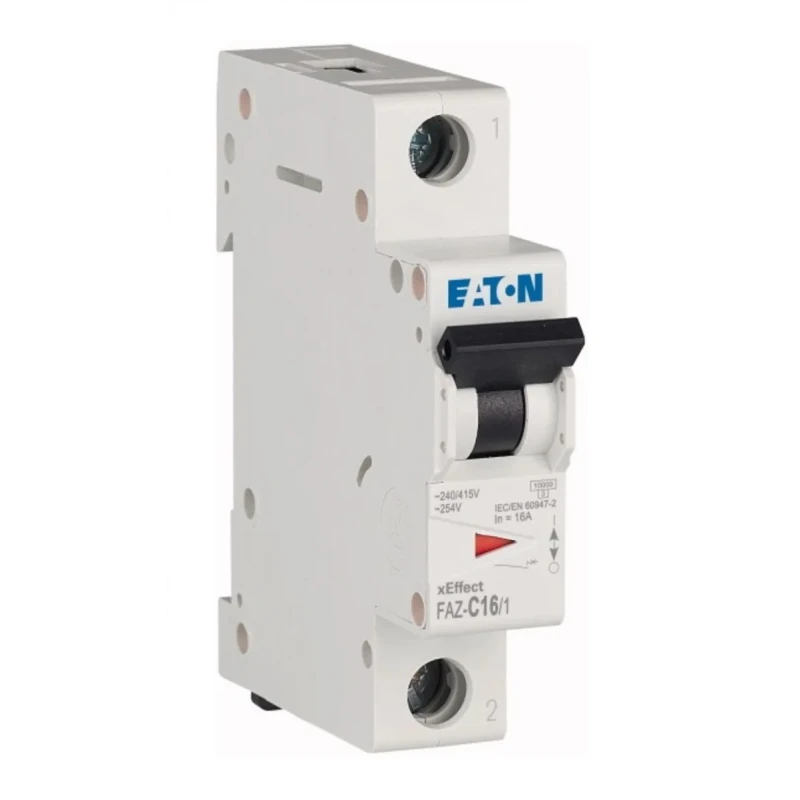

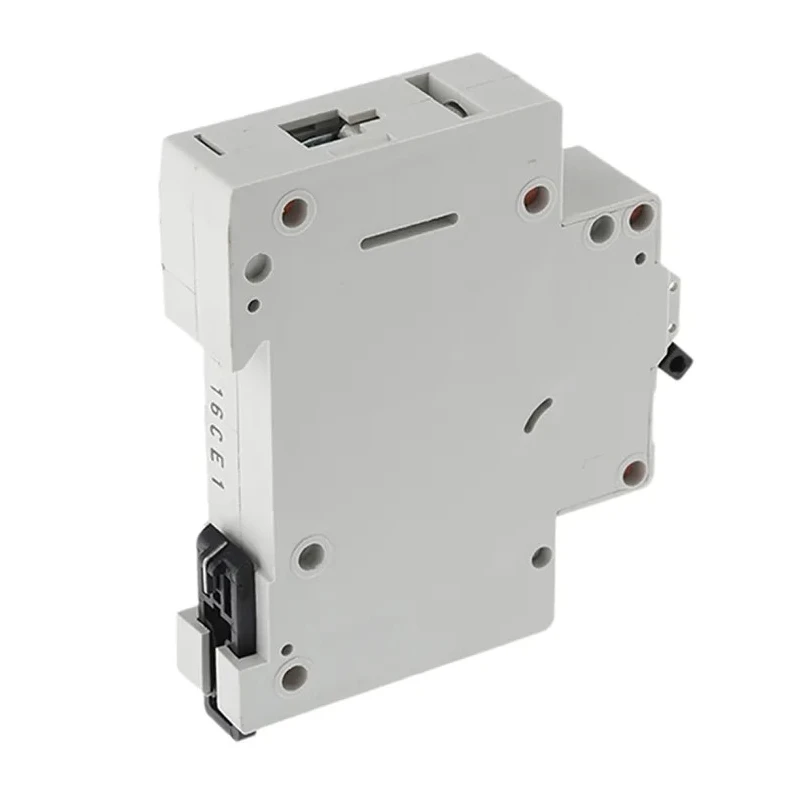

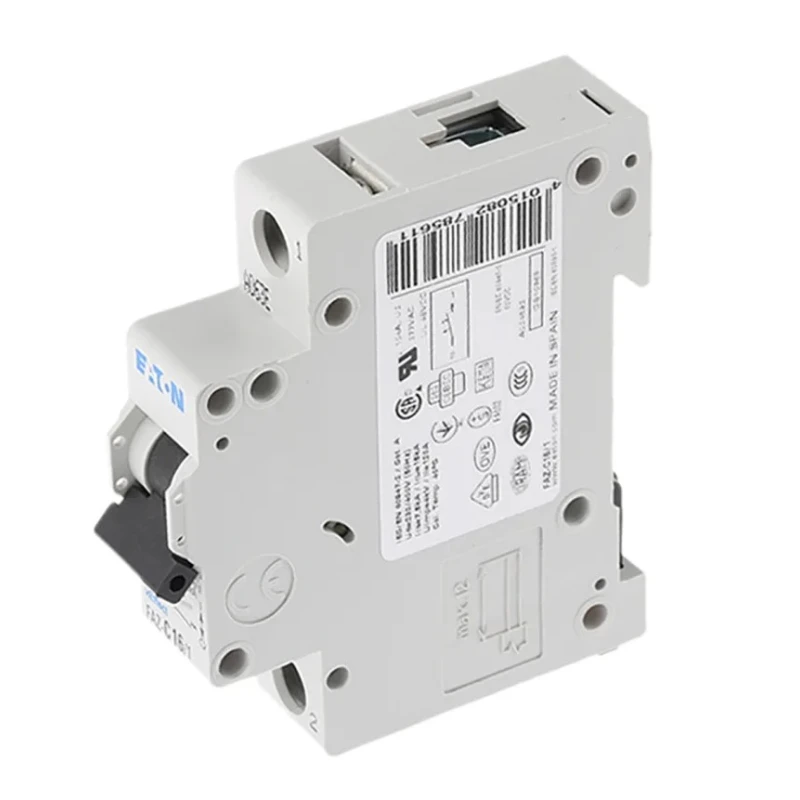

RS PRO xEffect Miniature Circuit Breaker 1-Pole 16A Type C 230V AC 48V DC 10kA Breaking Capacity 278561 FAZ-C16/1

Eaton 278561 FAZ-C16/1 xEffect Miniature Circuit Breaker is engineered for efficient and reliable protection of electrical circuits in commercial, industrial, and residential applications. The device supports a 16A current rating with Type C tripping characteristic, making it suitable for protecting general electrical installations that may experience moderate inrush currents, such as lighting and motor loads.

This 1-pole MCB supports rated voltages of 230V AC and 48V DC, ensuring versatility across AC supply and DC control applications. With a high breaking capacity of 10kA, it provides robust short circuit interruption to safeguard electrical equipment and wiring from damage during fault conditions.

The breaker’s thermal magnetic tripping mechanism delivers instantaneous response to overcurrents, enhancing safety by minimizing electrical energy let-through during faults. Its compact form factor with dimensions of 80mm length, 17.5mm width, and 74mm depth facilitates space-saving DIN rail mounting, ideal for modern electrical panels.

The xEffect series incorporates twin-purpose terminals that offer flexible and secure wiring connections. The front toggle switch indicates the contact position clearly, allowing quick and confident operation for isolating circuits manually. This MCB has an IP20 rating, protecting against solid foreign object ingress and ensuring operator safety.

Designed to meet IEC 60947-2 standards, this Eaton circuit breaker ensures compliance with international safety and performance protocols. Manufactured in Romania, it reflects Eaton's commitment to quality and precise engineering.

Reliable overcurrent protection with 16A rating and Type C tripping. High breaking capacity of 10kA for effective short circuit interruption. Compact DIN rail mount design to optimize cabinet space. Robust thermal magnetic trip mechanism for fast fault response.

Suitable for 230V AC and 48V DC rated voltage applications. Twin-purpose terminals simplify wiring installations. Clear toggle switch for easy circuit status indication. IP20 protective rating enhances operator safety. Meets IEC 60947-2 standards for circuit breakers.

Manufactured in Romania ensuring high quality and reliability.

This Eaton xEffect Miniature Circuit Breaker is ideal for use in industrial control panels, commercial buildings, residential electrical systems, and other environments requiring dependable protection of electrical installations. It helps prevent equipment damage and fire hazards by promptly interrupting excess current flow. Explore the Eaton brand and similar circuit protection products in the Electronics & Electrical category on EnvMart for comprehensive system solutions.
