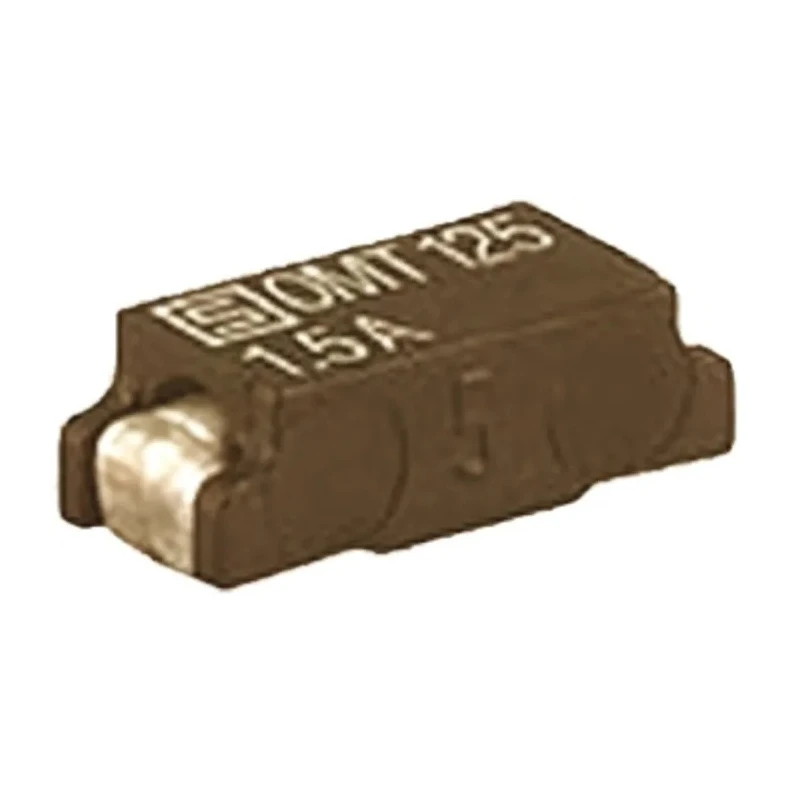

Schurter Non-Resettable Fuse 1.5A, 125 V AC/DC Thermoplastic Body Time Delay OMT 125 Series 3404.0115.22

Schurter 3404.0115.22 is a high-quality non-resettable fuse designed for low voltage applications with a current rating of 1.5A and voltage rating of 125 V AC/DC. Incorporated in the OMT 125 series, this fuse provides reliable time delay protection with a robust thermoplastic body that ensures resistance to environmental factors.

Its miniature surface mount design, with dimensions of 3.1 mm width, 2.6 mm height, and 7.4 mm depth, allows space-saving on printed circuit boards. The fuse comes packaged on reels to facilitate automated manufacturing processes.

The fuse's breaking capacity of 100A provides strong defense against overcurrent events, making it suitable for protecting sensitive components and electronic circuits. Operating temperature limits range from -40°C to 85°C, allowing reliable performance in various industrial and commercial environments.

Terminals are finished with tin plated copper for excellent conductivity and solderability, optimizing surface mount soldering procedures. The fuse meets stringent standards and approvals such as CSA, REACH, RoHS, CE, and UL 248-14, assuring compliance and safety in electrical applications.

This Schurter Non-Resettable Fuse is widely used in electronics such as alarm systems, audio and visual equipment, computer boards, portable telephones, power supplies, and medical apparatus. Its time-delay characteristic protects high-value silicon ICs and enhances system durability.

The fuse features a time delay characteristic for circuit protection. Constructed with a thermoplastic body material ensuring durability. Compact dimensions with width of 3.1 mm, height of 2.6 mm, and depth of 7.4 mm. Designed for surface mount technology with reel packaging for efficient assembly.

Offers a breaking capacity of 100A for robust protection against overcurrent. Maintains operation between temperatures of -40°C maximum to 85°C minimum. Terminal material is tin plated copper for reliable electrical connectivity.

Complies with multiple standards including CSA, REACH, RoHS, CE, and UL 248-14. Ideal for applications in alarm systems, audio/visual equipment, computer boards, and medical apparatus. Explore more Schurter products and other electrical fuses in the Circuit Breakers & Fuse category at EnvMart.
