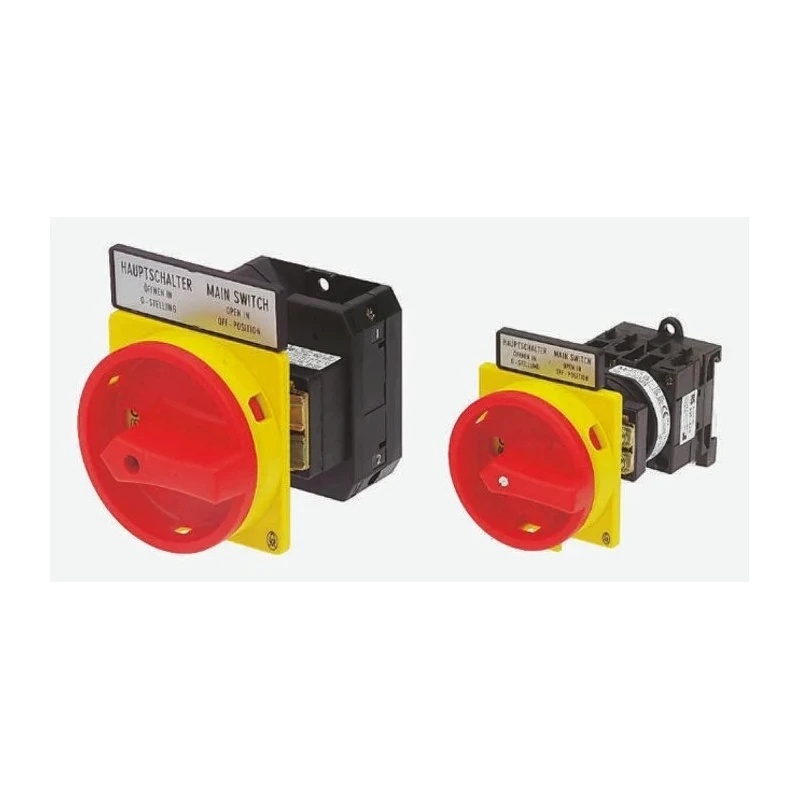

Eaton 3-Pole Panel Mount Isolator Switch IP65 160A 55kW P5-250 Series

Free Delivery in India | Lowest Global Shipping Charges

Eaton 3-Pole Panel Mount Isolator Switch IP65 160A 55kW P5-250 Series

Name: Eaton 3-Pole Panel Mount Isolator Switch IP65 160A 55kW P5-250 Series
Brand: Eaton
SKU: 342845
Price: 41295.39 INR
Availability: InStock



Category Isolator Switch Brand Eaton Condition New

Specifications

Country of Origin	India
Brand	Eaton
Length	88mm
Model	IP65
Depth	91mm
IP Rating	IP65
Width	88mm
Mount Type	Panel Mount
Series	P5-250
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-25°C
Switching Current	160A
Terminal type	Screw
Electrical Phase	3
Handle Colour	Red
Hazardous Area Certification	ATEX
Number of Poles	3
Standards/Approvals	ATEX, UL, IEC, VDE, EN, CSA
Switching DC Voltage	42V dc
Switching AC Voltage	400V ac
Switching Power	55kW

Key Features

Features a compact, durable design with clear position indication.
Padlockable in the OFF position, compatible with up to 3 x 8 mm padlocks.
Easily mounted on DIN rail or base plate for convenient rear panel installation.
Suitable for use with electrical cabinets or enclosures up to 400 mm deep with extended shaft kits.
Supports switching AC voltage of 400V and DC voltage of 42V.
Certified with ATEX, UL, IEC, VDE, EN, and CSA standards for hazardous area use.
Red handle provides clear operation status and easy identification.
Ideal for machine control panels, transformers, switchgear, distribution panels, and consumer units.

Product Description

Eaton 280928 P5-160/V/SVB is a 3-Pole Panel Mount Isolator Switch designed for robust and reliable isolation in industrial and engineering applications. With an IP65 ingress protection rating, it ensures safe operation in harsh environments requiring extra protection.

This isolator switch features a 160A switching current capacity and can handle switching power up to 55kW. It supports a 3-phase electrical configuration with switching AC voltage rated at 400V and switching DC voltage at 42V. The compact and durable P5-250 series device includes a red handle for clear position indication and is padlockable in the OFF position, enhancing operational safety.

The switch is designed for rear panel mounting and can be easily installed on DIN rails or base plates. It is suitable for installation within electrical cabinets or enclosures up to 400mm deep using available extended shaft kits. Premium certifications including ATEX, UL, IEC, VDE, EN, and CSA validate its use in hazardous areas and demanding industrial conditions.

Common applications include use in machine control panels, isolation of circuit breakers, transformers, transmission lines, switchgear panels, distribution panels, and consumer units. Auxiliary contacts and compatible accessories such as extended shaft kits and neutral blocks increase functional flexibility.

Compact and durable design ensures long-term reliability. Clear position indication and padlock compatibility increase safety during maintenance. Rear panel mounting provides installation versatility. Certified for industrial and hazardous environments.

Supports standard electrical voltages and currents for a range of equipment. Wide industrial applicability in power distribution and control systems. Red handle for visible operational status. Compatible with accessories to enhance installation depth and functionality.
