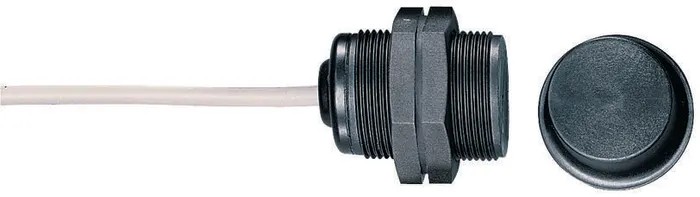

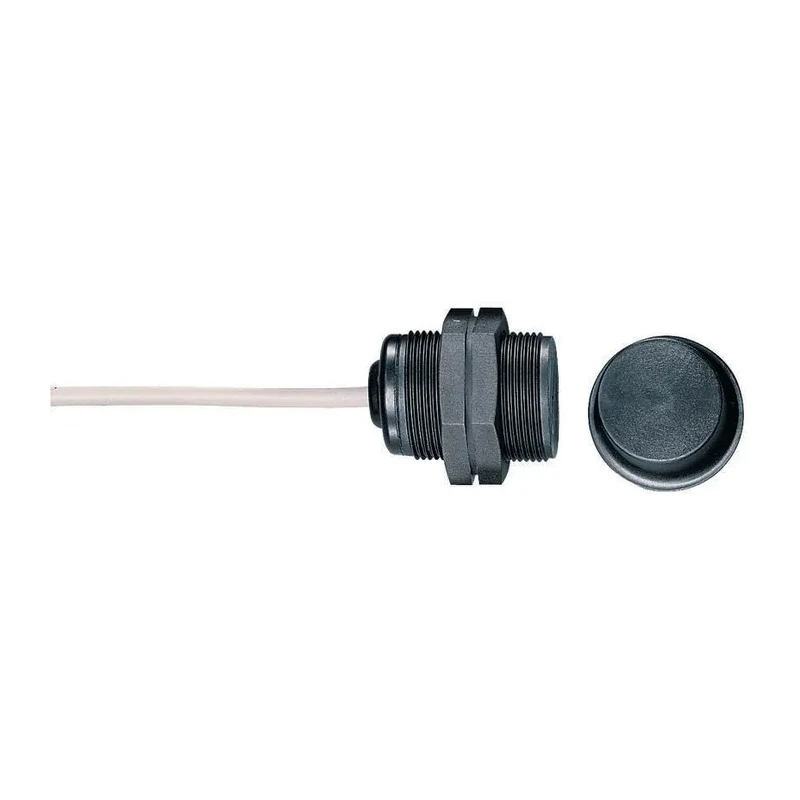

Schmersal BNS303 Series Magnetic Non-Contact Safety Switch, Plastic Housing, 24V DC, 1 NO/2 NC, M12 BNS303
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Schmersal |
| Length | 44mm |
| Model | BNS303 |
| Connection Type | M12 |
| Depth | 30mm |
| IP Rating | IP67 |
| Width | 30mm |
| Housing Material | Plastic |
| Series | BNS303 |
| Actuator Type | Coded |
| Safety Category | 4 |
| Switching Current | 0.01A |
| Terminal type | M12 |
| Sensor Principle | Magnetic |
| Body Style | Cylindrical |
| Standards/Approvals | IEC, TUV, BG, cULus, EAC |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 100V ac |
| Housing Colour | Black |
| Safety Contacts | 1 NO/2 NC |
| Switching Distance | 15 mm |
Key Features
- Non-contact magnetic switching technology ensures minimal mechanical wear.
- Durable plastic glass fibre-reinforced thermoplastic housing for impact and heat resistance.
- IP67 rated ingress protection allows submersion in water up to 1 meter.
- Operating temperature range from -25°C to +70°C for diverse environments.
- Sturdy coding actuator type provides secure and precise actuation.
- Compact cylindrical design with 44mm length and 30mm diameter.
- Suitable for food, beverage, pharmaceutical, chemical, and biotechnology industries.
- Compliance with IEC 60947-5-3, TÜV, BG, cULus, and EAC standards and approvals.
Product Description
Schmersal BNS303 Series Magnetic Non-Contact Safety Switch, model BNS303, features a robust plastic housing and operates on 24V DC with 1 NO and 2 NC safety contacts. Designed for high-reliability safety applications in industrial environments, this switch helps protect personnel by cutting power when safety guards are opened, minimizing hazards.
The switch employs magnetic sensor principles enabling contactless actuation, which reduces mechanical wear and enhances longevity. The coding actuator type ensures safe and precise operation. Its cylindrical body style, measuring 44mm in length and 30mm in diameter, is made from glass fibre-reinforced thermoplastic providing impact and heat resistance.
Rated IP67, this device withstands dust ingress and water submersion up to one meter for 30 minutes, making it suitable for harsh and wet conditions. It complies with the IEC 60947-5-3 low-voltage switchgear standards along with TÜV, BG, cULus, and EAC approvals.
The switch's switching current is 0.01A with switching voltages up to 24V DC and 100V AC. Its operating temperature range covers -25°C to +70°C, enabling deployment in various sectors including food packaging, beverage manufacturing, biotechnology, pharmaceutical production, and chemical processing plants.
Weighing only 38 grams, the switch exerts minimal load on the equipment. Note that the actuating magnet is not included and should be ordered separately from accessories. This safety switch is an essential component for reliable personnel protection and machine safety in industrial automation systems.
Non-contact magnetic sensor technology for enhanced durability and performance. Glass fibre-reinforced thermoplastic housing for robust protection. IP67 ingress protection for dust-tight and waterproof operation. Complies with IEC 60947-5-3 and other international safety standards.
Compact cylindrical design with M12 connection for easy installation. Wide operating temperature range from -25°C to +70°C. Lightweight design reduces mechanical strain on machines. Versatile use in food, beverage, pharmaceutical, chemical, and biotech industries.
Includes 1 NO and 2 NC safety contacts for diverse control functions. Explore the comprehensive range of Schmersal Safety Switches and components at EnvMart for reliable industrial automation and machine safeguarding solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The BNS303 safety switch has a cylindrical design with a length of 44mm and a diameter of 30mm.
It features a coded actuator type, which ensures safe and precise actuation.
The operating temperature range for the BNS303 is from -25°C to +70°C, making it suitable for various environments.
This model includes 1 normally open (NO) contact and 2 normally closed (NC) contacts.
The housing is made from glass fibre-reinforced thermoplastic, providing impact and heat resistance.
The BNS303 complies with IEC 60947-5-3 standards, along with TÜV, BG, cULus, and EAC approvals.
The switching current for this model is 0.01A.
Yes, the BNS303 is suitable for applications in food, beverage, pharmaceutical, chemical, and biotechnology industries.
This safety switch uses an M12 connection type for easy installation.
The switch weighs only 38 grams, which minimizes the load on the equipment.
