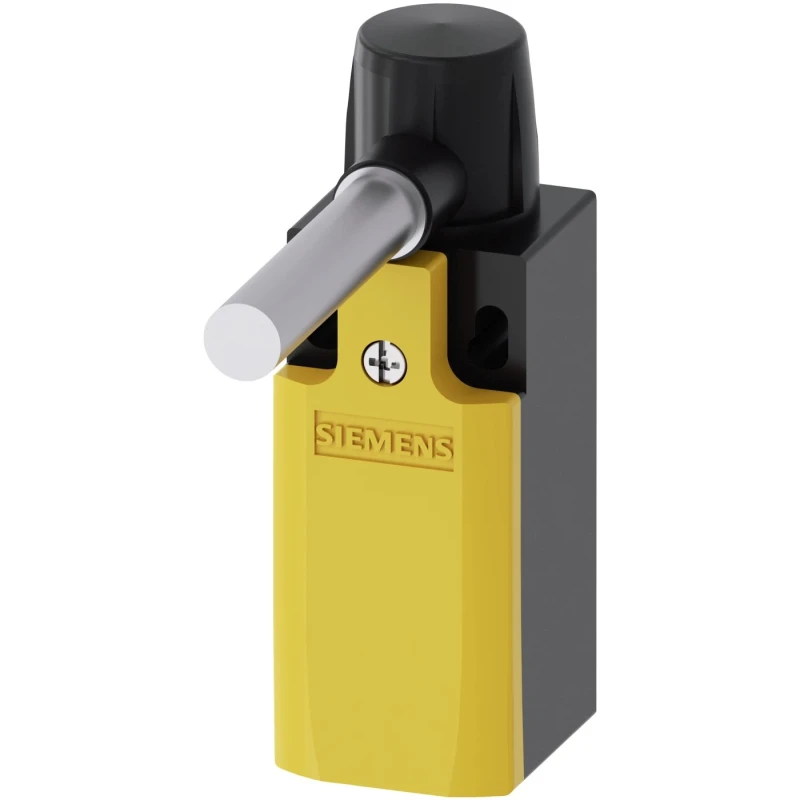

Siemens 3SE5 Safety Hinge Switch 1 NO/1 NC Plastic Housing IP65 24V DC 10A 240V AC 3SE5232-0HU22
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Length | 92mm |
| Model | 3SE5232-0HU22 |
| IP Rating | IP65 |
| Width | 31mm |
| Housing Material | Plastic |
| Series | 3SE5 |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | 1 NO/1 NC |
| Cable Entry Size | M20 x 1.5 |
| Minimum Operating Temperature | -25°C |
| Shaft Length | 52.8mm |
| Terminal type | Screw |
| Contact DC Voltage | 24V dc |
| Mechanical Life | 1000000Cycles |
| Contact AC Voltage | 240V ac |
| Contact Current | 10A |
| Number of Cable Entries | 2 |
| Trigger Angle Range | 10 ° |
| SIRIUS 3SE5 Safety Hinge Switch, NO/NC, M20 x 1.5Brand | Siemens |
Key Features
- The switch features a plastic housing with an IP65 rating for dust and water protection.
- Contact configuration includes 1 Normally Open (NO) and 1 Normally Closed (NC) contact.
- Operates at 24V DC and 240V AC with a maximum current rating of 10A.
- Designed for a mechanical life of 1,000,000 cycles ensuring long durability.
- Includes M20 x 1.5 cable entry size with two cable entries and screw terminal type for secure wiring.
- Shaft length measures 52.8 mm and trigger angle range is 10 degrees for precise actuation.
- Operating temperature range extends from -25°C to 65°C suitable for harsh environments.
Product Description
Siemens 3SE5232-0HU22 Safety Hinge Switch 1 NO/1 NC is a precision mechanical position switch from the SIRIUS 3SE5 Series, ideal for monitoring the status of hinged doors and flaps in industrial automation and safety applications.
The switch's robust plastic housing and IP65 ingress protection rating provide reliable operation in demanding environments, protecting against dust and water ingress. It features one normally open and one normally closed contact, allowing simultaneous shutdown and signaling functions.
Designed for an extended mechanical life of one million cycles, this safety hinge switch supports protection levels up to Category 4 (EN 954-1) and SIL 3 according to IEC 62061 standards. The cable entry of size M20 x 1.5 with two entries and screw terminals simplifies installation and wiring processes, reducing connection time by approximately 20-25%.
The compact size and precise trigger angle range of 10 degrees enhance its suitability for controlling protective doors and flaps, with an actuator head rotatable in 22.5° increments for flexible mounting. It operates efficiently within temperatures ranging from -25°C to 65°C, making it suitable for various industrial, manufacturing, and automation applications.
The Siemens 3SE5232-0HU22 safety hinge switch originates from Germany, ensuring high-quality manufacturing standards. It is commonly used in industrial automation systems, electrical safety circuits, HVAC installations, and machinery safety mechanisms to prevent unauthorized access or unsafe operation.
The switch is constructed with a durable plastic housing rated IP65 for environmental protection. Contacts are configured as 1 NO (Normally Open) and 1 NC (Normally Closed) for versatile functionality. Electrical ratings include 24V DC and 240V AC at 10A current capacity.
Two cable entries with M20 x 1.5 size and screw type terminals enhance wiring convenience. Long mechanical life rated at 1,000,000 cycles ensures reliability. Operating temperature range from -25°C to 65°C for wide environmental adaptability.
Shaft length of 52.8 mm and precise 10° trigger angle range for accurate door monitoring. Compact dimensions measuring 92 mm in length and 31 mm in width. Explore Siemens Safety Switches and other industrial controls on EnvMart for trusted quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Siemens 3SE5232-0HU22 has an IP65 rating, providing protection against dust and water ingress.
This safety hinge switch is designed for a mechanical life of 1,000,000 cycles, ensuring long-term reliability in operation.
It operates at 24V DC and 240V AC with a maximum current rating of 10A.
The trigger angle range for the Siemens 3SE5232-0HU22 is 10 degrees, allowing for precise actuation.
This model measures 92 mm in length and 31 mm in width, with a shaft length of 52.8 mm.
The switch includes two cable entries with a size of M20 x 1.5, facilitating easier wiring.
It operates effectively within a temperature range of -25°C to 65°C, suitable for various environmental conditions.
The contact configuration includes 1 Normally Open (NO) and 1 Normally Closed (NC) contact, allowing for versatile functionality.
It features screw terminals for secure wiring connections, enhancing installation convenience.
The housing of the Siemens 3SE5232-0HU22 is made from plastic, providing durability and environmental protection.
This safety hinge switch originates from Germany, ensuring adherence to high manufacturing standards.
It is commonly used in industrial automation systems, electrical safety circuits, HVAC installations, and machinery safety mechanisms.
