Schmersal Non-Contact Safety Switch RSS 36 Series RFID, Fibreglass Reinforced Thermoplastic Housing, 26.4V RSS 36-I2-D-R-ST

Free Delivery in India | Lowest Global Shipping Charges

Schmersal Non-Contact Safety Switch RSS 36 Series RFID, Fibreglass Reinforced Thermoplastic Housing, 26.4V RSS 36-I2-D-R-ST

Name: Schmersal Non-Contact Safety Switch RSS 36 Series RFID, Fibreglass Reinforced Thermoplastic Housing, 26.4V RSS 36-I2-D-R-ST
Brand: SCHMERSAL
SKU: 135443
Price: 321.66 USD
Availability: InStock



Category Safety Switch Brand SCHMERSAL Condition New

Specifications

Country of Origin	Germany
Brand	Schmersal
Dimensions	27 x 108.2 x 35 mm
Length	106.3mm
Model	RSS 36-I2-D-R-ST
Connection Type	M12
Depth	25mm
IP Rating	IP67, IP65, IP69K
Width	22mm
Housing Material	Fibreglass Reinforced Thermoplastic
Series	RSS 36
Actuator Type	Unique Coded
Safety Category	3
Switching Current	0.6A
Terminal type	M12
Sensor Principle	RFID
Body Style	Rectangular
Switching DC Voltage	26.4V dc
Housing Colour	Black, Blue
Safety Contacts	PNP
Switching Distance	10 (On) mm, 12 mm, 20 (Off) mm
Schmersal Actuator for Use with Safety SwitchBrand	Schmersal

Key Features

Fibreglass reinforced thermoplastic housing ensures durability and fire safety.
Operates at 26.4 V DC with low 0.6 A switching current for energy efficiency.
Unique coded actuator type enhances safety and prevents tampering.
IP67, IP65, and IP69K rated for high protection against dust and water ingress.
Complies with EN ISO 13849-1, IEC 61508, IEC 60947-5-3, and other important standards.
Compact rectangular design with M12 connection for easy integration.
Operating temperature range from -25°C to +70°C supports harsh industrial environments.
LED indicators provide clear operating status feedback.

Product Description

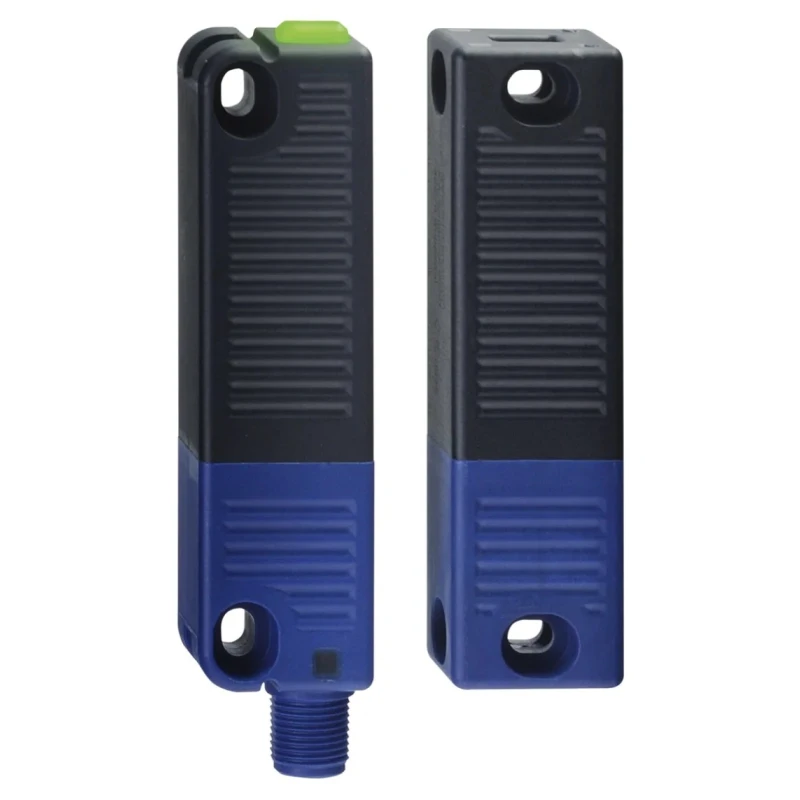

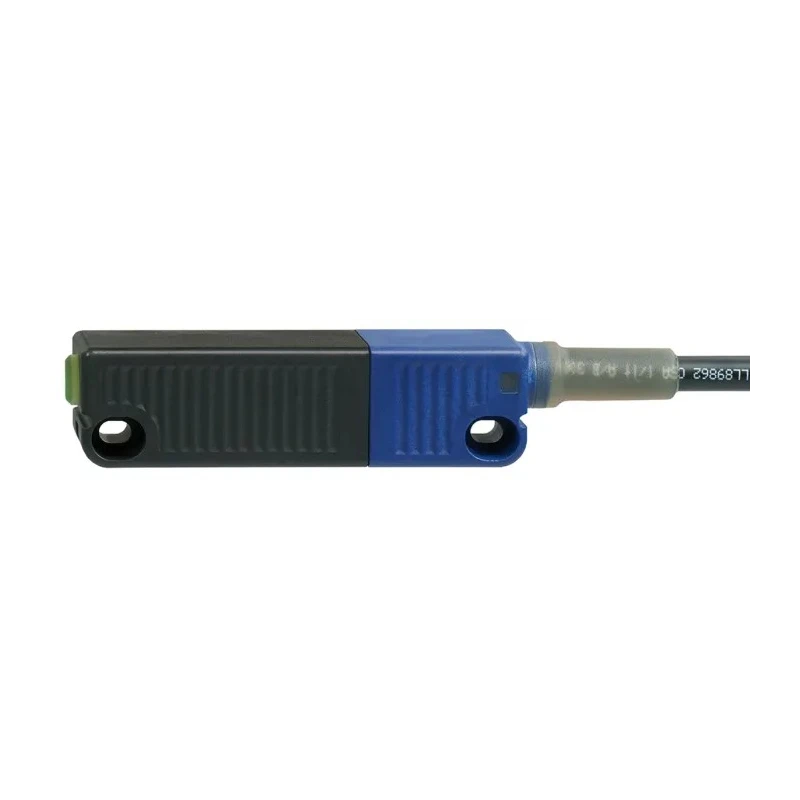

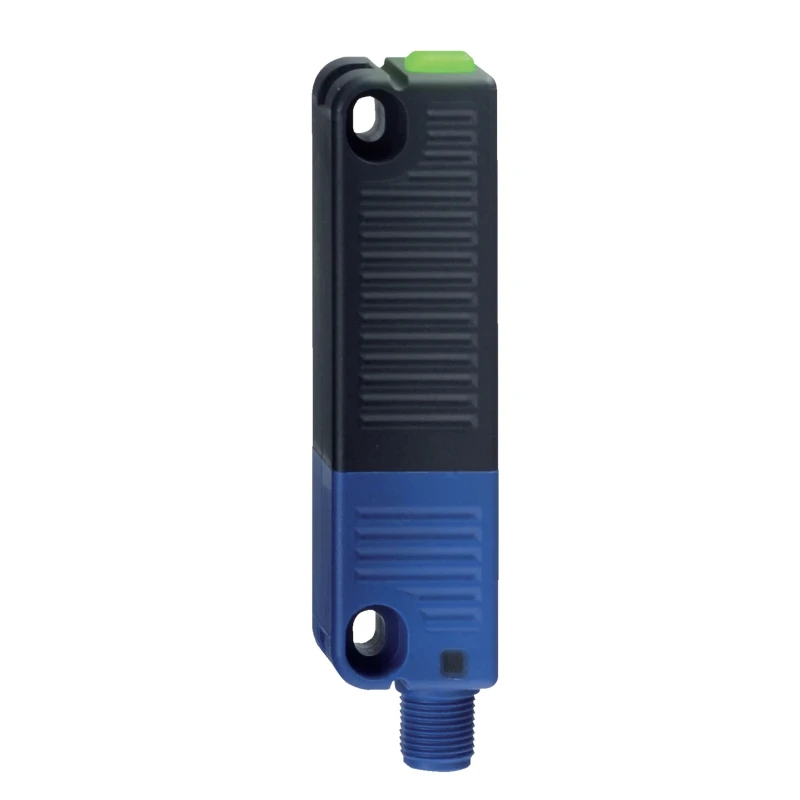

Schmersal RSS 36-I2-D-R-ST non-contact safety switch features RFID sensor principle within a fibreglass reinforced thermoplastic rectangular housing. Rated for 26.4 V DC operation and a low switching current of 0.6 A, this PNP safety switch ensures energy-efficient and reliable machine guard monitoring.

The compact unit measures 106.3 mm in length, 22 mm in width, and 25 mm in depth, incorporating an M12 connection type and unique coded actuator for enhanced security and fault prevention. It supports safety category 3 and offers switching distances of 10 mm (On), 12 mm, and 20 mm (Off), allowing for initial misalignment during installation.

Designed for tough industrial settings, the switch withstands operating temperatures from -25°C to +70°C and carries IP67, IP65, and IP69K ingress protection ratings, safeguarding against dust and immersion in water. It complies with multiple international standards including EN ISO 13849-1, IEC 61508, IEC 60947-5-3, and is CE and cULus listed.

The device’s LED indicators allow easy monitoring of operational status, increasing maintenance efficiency. Schmersal’s RSS 36 series safety switches are ideal for applications in pharmaceutical industries, conveyor systems, robotics, and factory automation where non-contact safety monitoring is paramount.

This product originates from Germany and is supplied new, maintaining the highest quality standards. The robust housing material is self-extinguishing glass fibre reinforced thermoplastic, designed for long service life with a mission time of around 20 years.

Fibreglass reinforced thermoplastic housing for high durability and safety. Low 0.6 A switching current enhances energy efficiency. Unique coded actuator type prevents tampering. M12 connection type for secure and standard interfacing.

Wide operating temperature from -25°C to +70°C for harsh environments. IP67, IP65, and IP69K ingress protection ratings. Complies with EN ISO 13849-1, IEC 61508, IEC 60947-5-3, CE, and cULus standards. LED indicators for clear status monitoring.

Compact size: 106.3 x 22 x 25 mm. Explore our extensive collection of Schmersal Safety Switches and industrial automation products on EnvMart to enhance machine safety and operational reliability.
