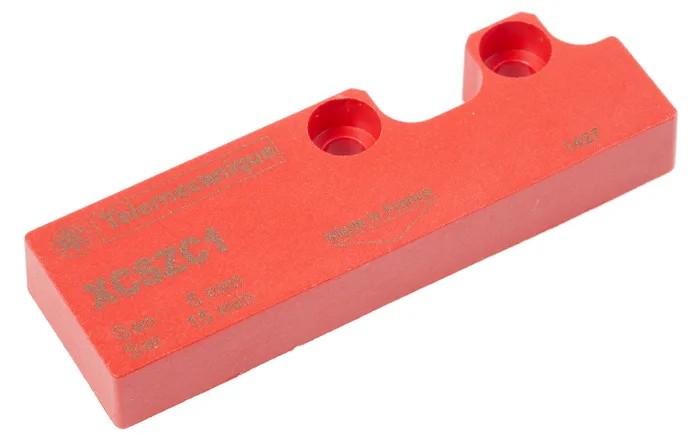

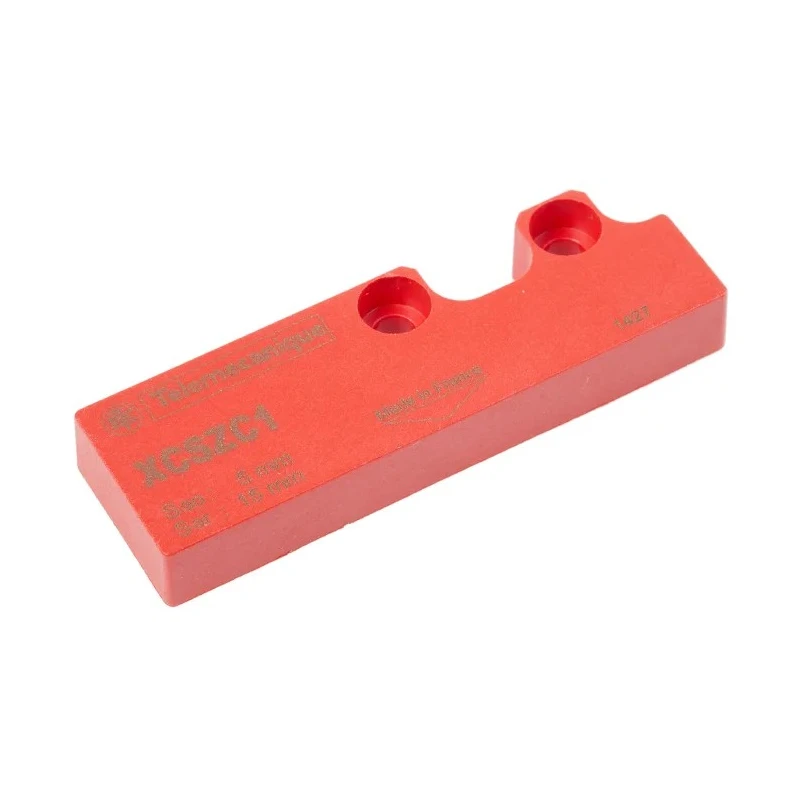

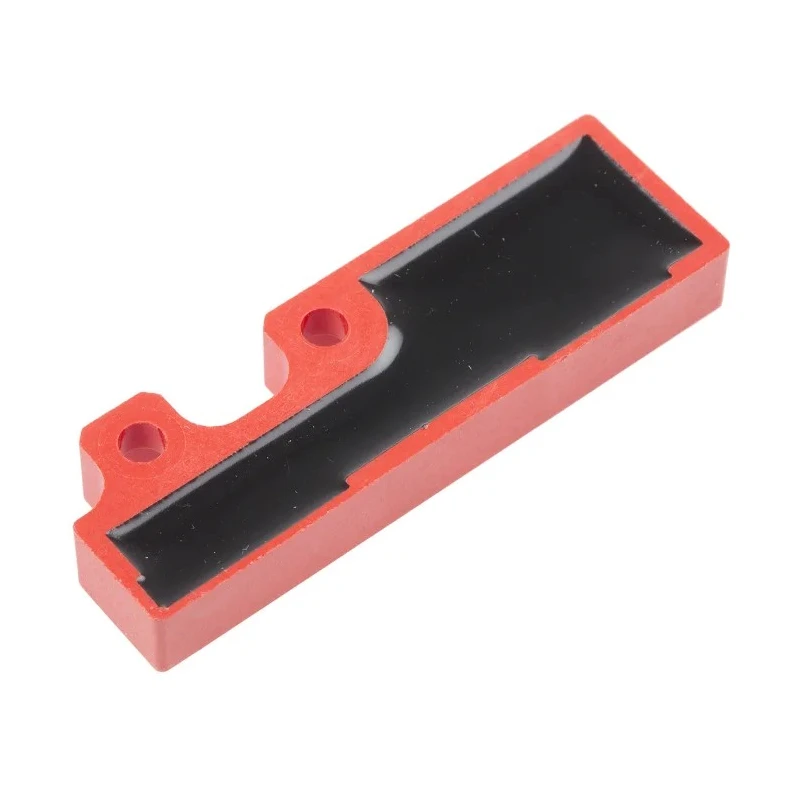

Telemecanique Sensors Magnetic Non-Contact Safety Switch Thermoplastic Housing 24V dc 1 NC 1 NO Screw XCSZC1
Specifications
| Country of Origin | France |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 37mm |
| Model | XCSZC1 |
| Connection Type | Screw |
| Depth | 7mm |
| IP Rating | IP67 |
| Width | 15mm |
| Housing Material | Thermoplastic |
| Actuator Type | Coded |
| Safety Category | 4 |
| Switching Current | 100mA |
| Sensor Principle | Magnetic |
| Body Style | Rectangular |
| Standards/Approvals | REACH, RoHS |
| Switching DC Voltage | 24V dc |
| Housing Colour | Red |
| Safety Contacts | 1 NC, 1 NO |
| Actuation on 3 sides | face to face and face to side |
Key Features
- The device operates at 24V dc with a switching current of 100mA.
- Features 1 Normally Closed (NC) and 1 Normally Open (NO) safety contacts for reliable switching.
- Equipped with a coded actuator for enhanced security and prevention of bypass.
- Offers IP67 protection rating, ensuring resistance to dust and water immersion.
- The compact design includes red-colored housing with screw-type connections for secure mounting.
- Safety category 4 certified for high safety integrity in industrial use.
- Actuator included and supports actuation on three sides (face to face and face to side) allowing flexible installation.
Product Description
Telemecanique Sensors XCSZC1 is a magnetic non-contact safety switch engineered with a thermoplastic rectangular housing measuring 37mm length, 15mm width, and 7mm depth. This safety switch operates at 24V dc with a switching current of 100mA, featuring one normally closed (NC) and one normally open (NO) contact. It is designed specifically for monitoring industrial machine guards, doors, and covers, assisting in instantaneous shutdown of hazardous machine movements to protect operators effectively.
Constructed from durable thermoplastic material and finished with a red color housing, the switch ensures robust protection against adverse conditions and is rated IP67 for dust tightness and immersion protection. The device’s coded actuator technology prevents disabling by simple magnets and supports actuation on three sides, including face to face and face to side, allowing versatile installation aligned with machine specifications.
With safety category 4 rating, the XCSZC1 adheres to industry safety standards including REACH and RoHS regulations, making it suitable for automation, manufacturing, and machine safety applications. The connection type uses secure screws, and the actuator is included for immediate use.
This switch is ideal for industrial environments requiring high safety integrity protection, including applications where frequent machine washing or liquid sprays occur, ensuring reliable operation under challenging conditions.
The device operates at 24V dc with a switching current of 100mA. Features 1 Normally Closed (NC) and 1 Normally Open (NO) safety contacts for reliable switching. Equipped with a coded actuator for enhanced security and prevention of bypass.
Offers IP67 protection rating, ensuring resistance to dust and water immersion. The compact design includes red-colored housing with screw-type connections for secure mounting. Safety category 4 certified for high safety integrity in industrial use.
Actuator included and supports actuation on three sides (face to face and face to side) allowing flexible installation.
The XCSZC1 magnetic non-contact safety switch enables compliance with EN/ISO 13849-1 and IEC 61508 safety standards when integrated into appropriate safety monitoring systems, providing Safety Integrity Level (SIL 3) and Performance Level (PL e) capabilities.
Browse related Telemecanique Sensors products in the Safety Switch category at EnvMart for compatible safety modules and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at 24V dc with a switching current of 100mA.
It features one Normally Closed (NC) contact and one Normally Open (NO) contact for reliable switching.
The switch has an IP67 protection rating, ensuring it is dust-tight and protected against immersion in water.
It is equipped with a coded actuator that prevents bypass and supports actuation on three sides: face to face and face to side.
The dimensions are 37mm in length, 15mm in width, and 7mm in depth.
The housing is made of thermoplastic material, finished in a red color for visibility.
It is certified with a safety category 4 rating, indicating high safety integrity for industrial applications.
It complies with REACH and RoHS regulations, ensuring environmental safety standards are met.
The switch utilizes a screw-type connection for secure mounting.
This safety switch is suitable for monitoring industrial machine guards, doors, and covers to protect operators.
The coded actuator enhances security by preventing disabling through simple magnets, ensuring reliable operation.
The XCSZC1 is manufactured in France.
