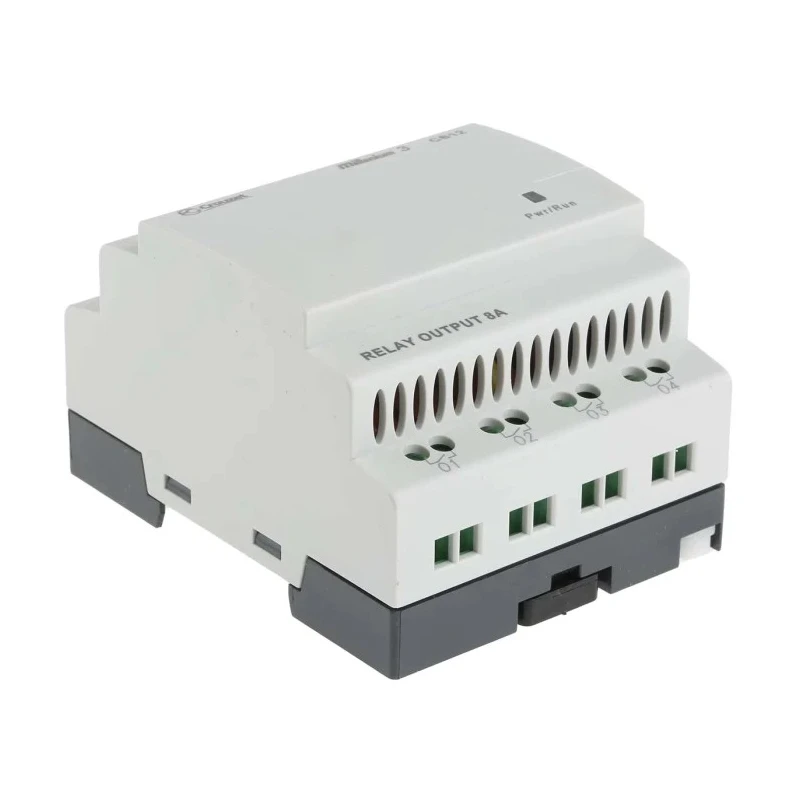

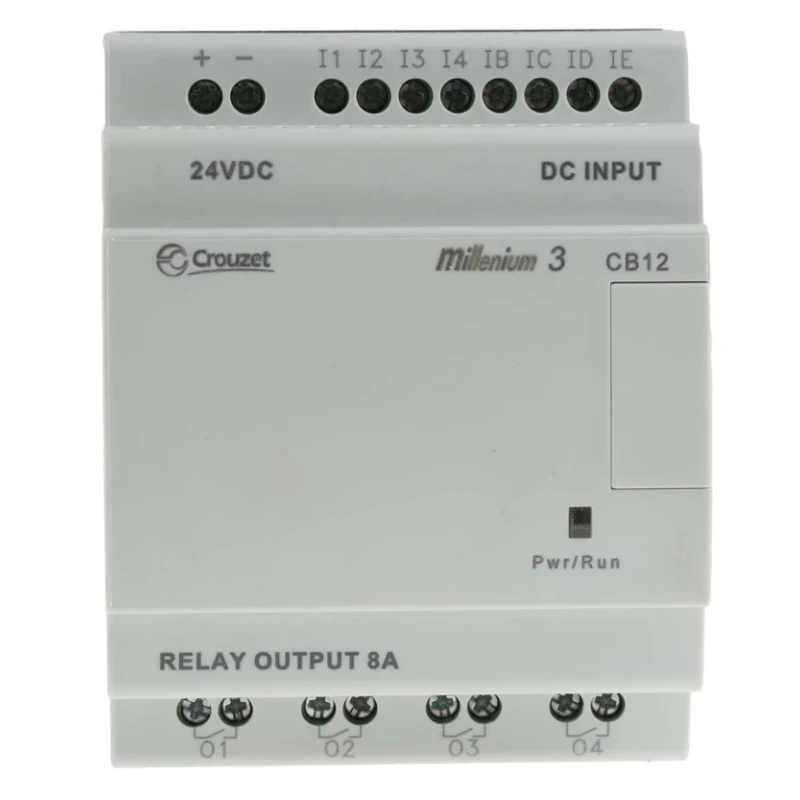

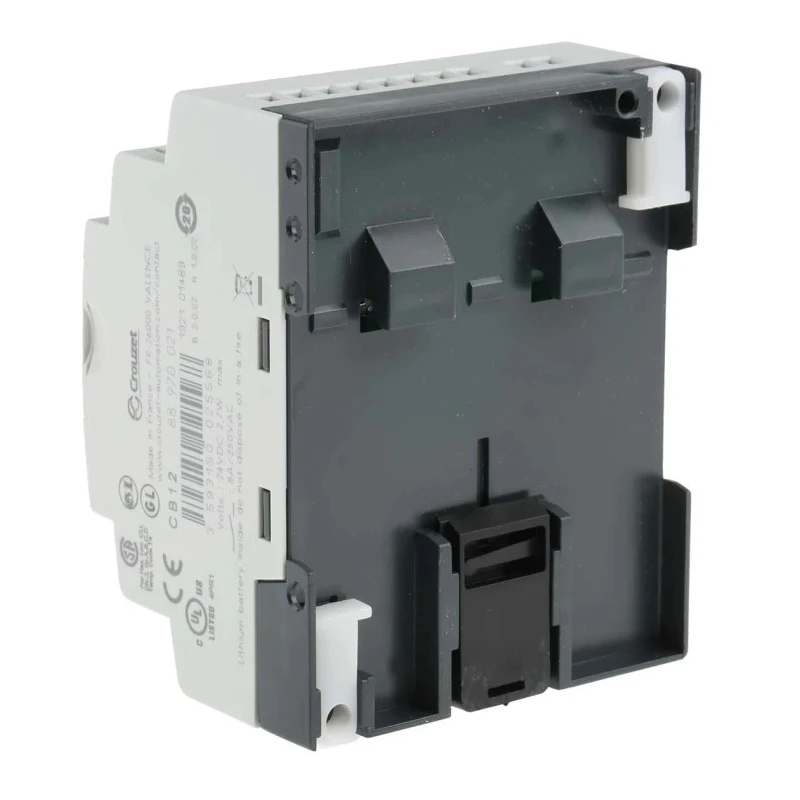

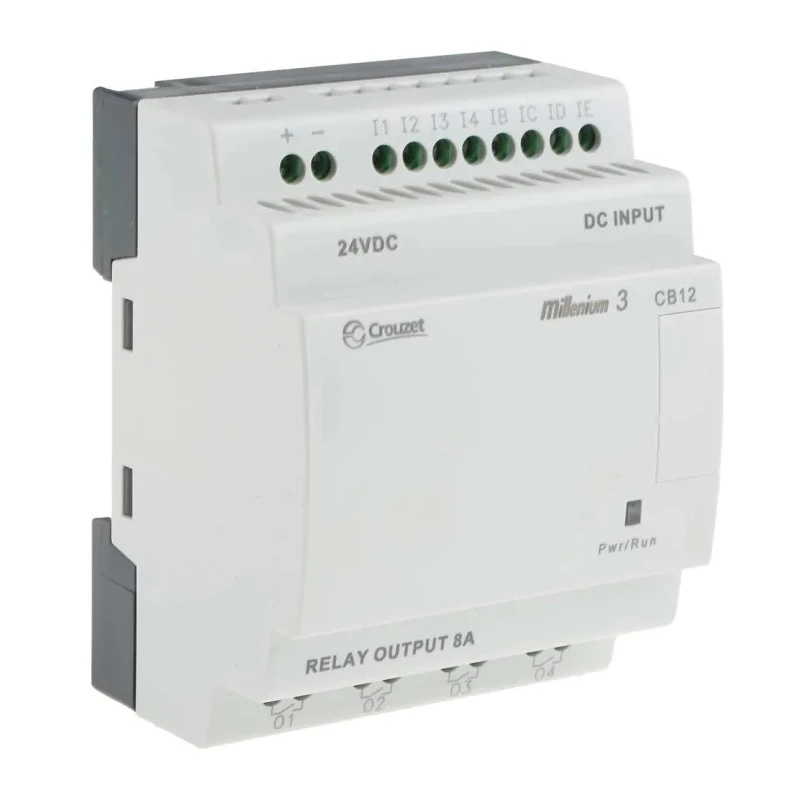

Crouzet Millenium 3 Series Logic Module 8 Input Analogue Digital, 4 Relay Outputs, 24V DC Supply, DIN Rail Mount 88970021
Specifications
| Country of Origin | France |
|---|---|
| Brand | Crouzet |
| Length | 71.2mm |
| Model | 88970021 |
| Depth | 57.5mm |
| Width | 107.6mm |
| Mount Type | DIN Rail |
| Number of inputs | 8 |
| Output type | Relay |
| Series | Millenium 3 |
| Output Current | 8A |
| Input Type | Analogue, Digital |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -20°C |
| Interfaces | USB port communication |
| Number of outputs | 4 |
| Supply Voltage | 24V dc |
| Number of Communication Ports | 2 |
| Communication Port Type | Serial, USB |
| Programming Language Used | FBD, Sequential function chart (SFC), Ladder Logic |
Key Features
- Equipped with 8 inputs suitable for both analogue and digital signals.
- Provides 4 relay outputs with a contact current rating of 8A each.
- Designed for DIN rail mounting with screw termination for secure installation.
- Operating temperature range from -20°C to +55°C for reliable performance.
- Includes battery backup ensuring program protection during power interruptions.
- Supports communication via serial and USB ports.
- Programmed using FBD, Sequential Function Chart (SFC), and Ladder Logic languages.
- Compact dimensions of 107.6mm width, 71.2mm length, and 57.5mm depth.
Product Description
Crouzet 88970021 Millenium 3 Series Logic Module is a compact automation device designed for industrial control applications requiring 8 inputs, including both analogue and digital types, and 4 relay outputs rated at 8A contact current. This Logic Module operates on a 24V DC supply voltage and mounts securely on DIN rails using screw terminations.
The device supports multiple programming languages including Function Block Diagram (FBD), Sequential Function Chart (SFC), and Ladder Logic, enabling versatile control program development. Connectivity is facilitated through built-in serial and USB communication ports to interface with industrial systems.
Operating reliably within a temperature range of -20°C to +55°C, the module features battery backup for memory retention and program protection against power interruptions. It includes a substantial memory size optimized for larger application requirements and an efficient design without a display or keys, offering an economical solution.
Equipped with 8 inputs suitable for both analogue and digital signals. Provides 4 relay outputs with a contact current rating of 8A each. Designed for DIN rail mounting with screw termination for secure installation. Operating temperature range from -20°C to +55°C for reliable performance.
Includes battery backup ensuring program protection during power interruptions. Supports communication via serial and USB ports. Programmed using FBD, Sequential Function Chart (SFC), and Ladder Logic languages. Compact dimensions of 107.6mm width, 71.2mm length, and 57.5mm depth.
Manufactured in France maintaining high quality standards.
Commonly applied in industrial automation, HVAC management, agricultural machinery control, and automatic washing equipment, this module provides efficient logic control. Suitable for environments requiring robust programmable logic controllers with analogue and digital interfacing capabilities.
Discover more industrial-grade electronic modules and automation solutions within the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features 8 inputs that can handle both analogue and digital signals.
It provides 4 relay outputs, each with a contact current rating of 8A.
The logic module operates on a 24V DC supply voltage.
The dimensions are 107.6mm in width, 71.2mm in length, and 57.5mm in depth.
It operates reliably within a temperature range of -20°C to +55°C.
It can be programmed using Function Block Diagram (FBD), Sequential Function Chart (SFC), and Ladder Logic languages.
It includes serial and USB communication ports for connectivity.
Yes, it includes battery backup to ensure program protection during power interruptions.
This unit is designed for DIN rail mounting with screw terminations for secure installation.
It is commonly applied in industrial automation, HVAC management, agricultural machinery control, and automatic washing equipment.
The logic module is manufactured in France.
It has a total of 2 communication ports.
