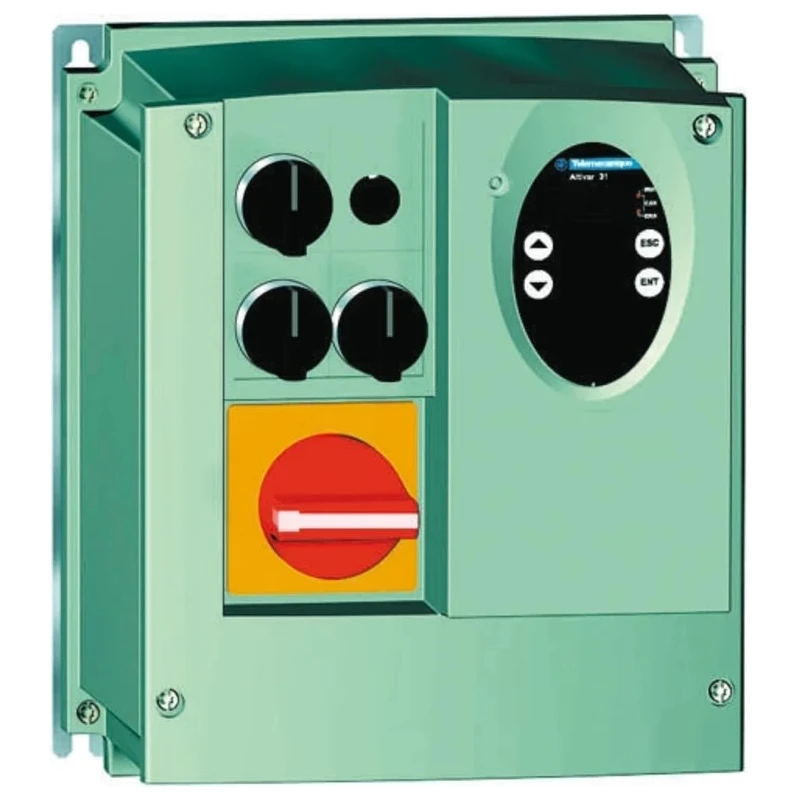

Schneider Electric Inverter Drive Wall Mount, 180 W, 1 Phase, 230V AC, 16 A, ATV31 Series ATV31C018M2ZH28

Schneider Electric ATV31C018M2ZH28 inverter drive delivers 180 W power with a robust design suitable for single-phase motors running on 230V AC with a maximum output current of 16 A. It is part of the ATV31 series designed for compact and user-friendly operation in industrial environments.

The wall-mount drive features an IP55 enclosure providing protection against dust and water ingress.Capable of operating from -10°C to 50°C without derating, it ensures reliable performance even in demanding ambient conditions. The drive supports asynchronous and AC motor types with variable speed functionality for precise control and energy efficiency.

High levels of torque at low speeds are maintained through sensorless Flux Vector control technology. The drive is equipped with six logic inputs, three analogue inputs, one logic/analogue output, and two relay outputs for versatile control and monitoring.

Communication is facilitated via built-in Modbus and CANopen industrial buses, enabling seamless integration with industrial control systems. The product complies with multiple international standards including UL, C-Tick, NOM, and CSA ensuring safety and reliability.

Its compact dimensions (281mm L x 258mm W x 320mm D) make it easy to install in space-constrained panels or enclosures. This inverter drive is ideal for applications in material handling such as conveyors and hoists, packaging machinery, mixers, kneaders, textile machines, as well as pumps, compressors, and fans.

Additional accessories are available including braking resistors, line chokes, EMC filters, mounting plates, and adapters for replacing older Altivar 28 drives. This drive is wall mountable with an IP55 protection rating for enclosed operation.

Supports asynchronous and AC motors with variable speed drive capability. Operates efficiently up to 50°C ambient temperature and down to -10°C minimum. Includes advanced control features such as sensorless Flux Vector control for high torque at low speeds.

Equipped with multiple inputs and outputs including six logic inputs and two relay outputs. Communication protocols include integrated Modbus and CANopen industrial buses. Compact size with dimensions 281mm length, 258mm width, and 320mm depth.

Complies with UL, C-Tick, NOM, and CSA standards and contributes to energy saving. Designed for applications like small conveyors, packaging machines, mixers, pumps, and fans. Explore more Schneider Electric products and reliable Inverter Drives on EnvMart for your industrial automation needs.
