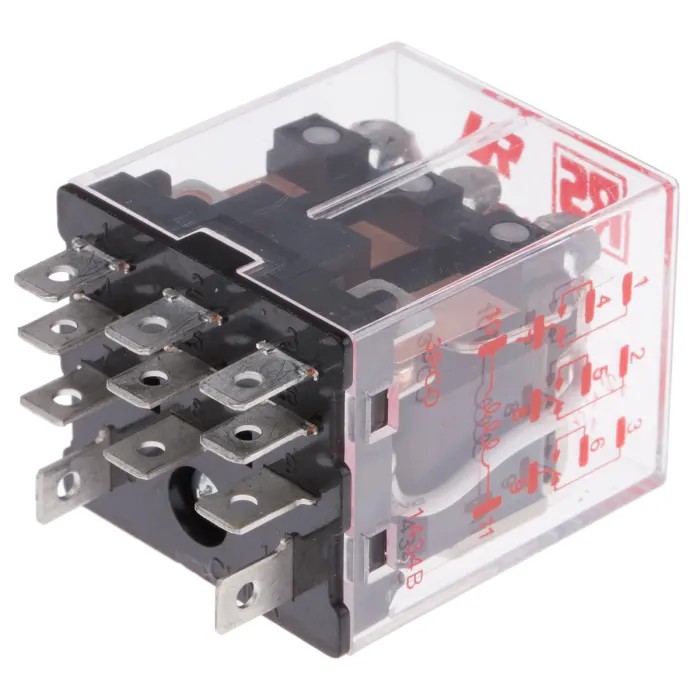

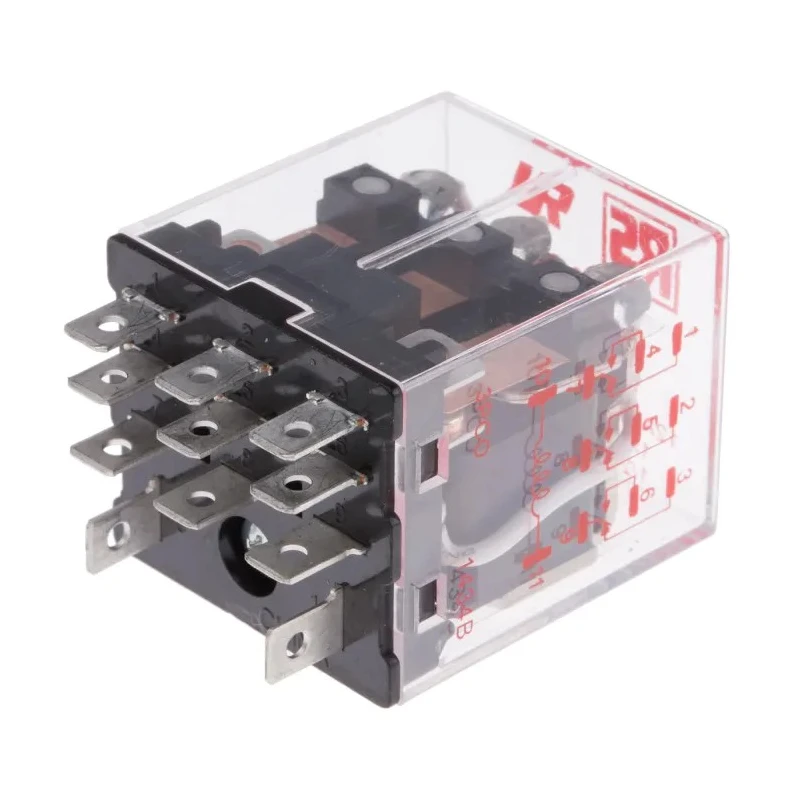

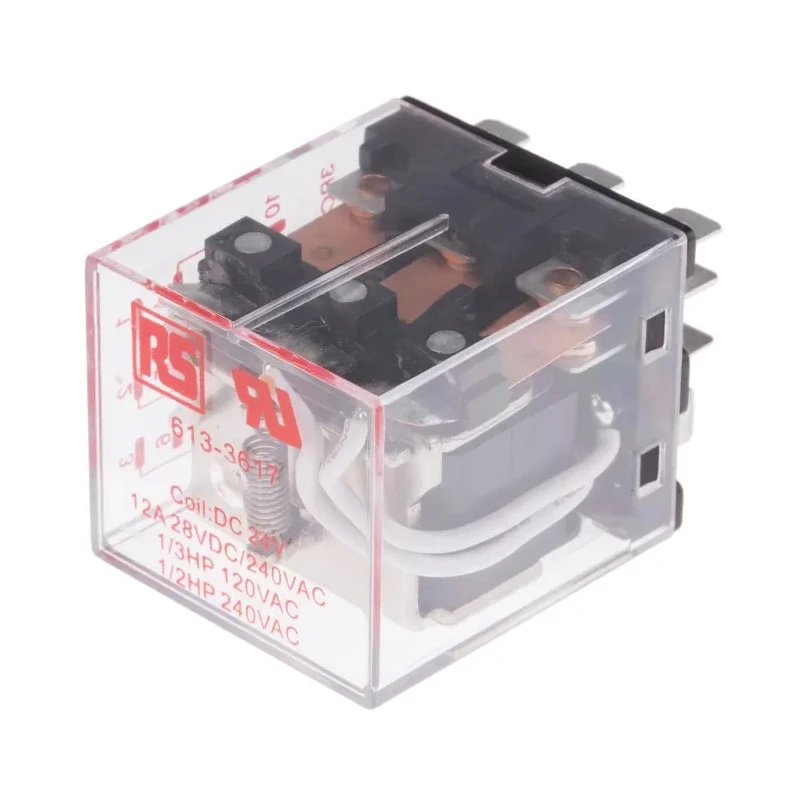

RS PRO Plug-in Power Relay 24V DC Coil 12A Switching Current 3PDT 613-3617
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 35mm |
| Length | 30.8mm |
| Model | 613-3617 |
| Width | 27.4mm |
| Mount Type | Plug-in |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 3PDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 12A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ max |
| Standards/Approvals | CE, EN, UL |
| Mechanical Life | 10 million operations |
| Coil Resistance | 400Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 1.5W |
| Electrical Life | 100000 operations |
| Latching RelayBrand | NEUTRAL |
Key Features
- Designed for industrial and automation electrical applications.
- Features a silver alloy contact material providing reliable conductivity.
- Supports switching of 28V DC and 240V AC voltages.
- Coil resistance of 400 ohms with coil power rating of 1.5 watts.
- Operational temperature range from -45°C to 70°C.
- Mechanical life rated for 10 million operations for lasting durability.
- Electrical life expectancy of 100,000 operations under rated conditions.
- Plug-in mount type with PCB pin terminals for easy installation.
Product Description
RS PRO 613-3617 Plug-in Power Relay is engineered for robust industrial electrical control systems requiring reliable switching capabilities. This power relay features a 24V DC coil voltage and a high switching current capacity of 12A, making it suitable for a variety of electrical automation, signal conditioning, and control applications.
The relay supports a 3PDT (three-pole double-throw) contact configuration, allowing versatile switching options. Its silver alloy contacts ensure low contact resistance and high conductivity. Rated for a maximum switching voltage of 28V DC and 240V AC, this relay accommodates diverse load requirements effectively.
With coil resistance at 400 ohms and coil power consumption at 1.5 watts, the relay is energy efficient while providing robust actuation force. It operates effectively under a broad temperature range from -45°C to a maximum of 70°C, enabling operation in demanding environmental conditions.
The compact form factor measures 30.8mm in length, 27.4mm in width, and 35mm in height. Designed with plug-in mount style and PCB pin terminals, it supports quick and secure installation on printed circuit boards. Mechanical longevity is ensured with a rated 10 million mechanical operations and an electrical life expectancy of 100,000 switching cycles, promoting reliability in continuous industrial use.
Designed for high-reliability industrial and automation electrical applications. Silver alloy contacts for superior conductivity and durability. Supports 3PDT contact configuration for versatile switching. Wide operational temperature range from -45°C to 70°C.
Compact plug-in mount with PCB pin terminals for easy integration. Long mechanical life of 10 million operations and electrical life of 100,000 operations. Efficient coil power consumption with 1.5 watts rating. Suitable for switching DC voltage up to 28V and AC voltage up to 240V.
This RS PRO power relay is ideal for various commercial, industrial, laboratory, and HVAC control systems needing dependable switching performance. It is RoHS compliant and meets CE, EN, and UL safety standards, ensuring compliance with industry regulations and safety.
Explore more Power Relays and electrical components at EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this power relay is 12A.
The coil voltage of this relay is 24V DC.
This model features a 3PDT (three-pole double-throw) contact configuration.
The operational temperature range for this relay is from -45°C to 70°C.
This relay uses a plug-in mount type with PCB pin terminals for installation.
The coil resistance of this relay is 400 ohms.
The dimensions of this power relay are 30.8mm in length, 27.4mm in width, and 35mm in height.
The electrical life expectancy of this relay is 100,000 operations under rated conditions.
The contacts of this relay are made of silver alloy, providing reliable conductivity.
This relay is compliant with CE, EN, and UL safety standards.
The maximum switching voltage for this relay is 28V DC and 240V AC.
The mechanical life rating of this relay is 10 million operations.
