E-TEC BL Series Straight Through Hole PCB Socket, 72-Contact, 2 Row, 2.54 mm Pitch, 12A, 100V, Solder BL2-072-G-700-95

The E-TEC BL Series Straight Through Hole PCB Socket, model BL2-072-G-700-95, is engineered for high reliability in electronic assembly applications requiring secure board-to-board connections. This PCB socket incorporates 72 female contacts arranged in 2 rows with a 2.54 mm pitch, ideal for accommodating connectors with precise spacing and alignment.

Manufactured with a robust plastic housing and featuring beryllium copper alloy contacts plated with gold, the socket ensures excellent electrical conductivity and corrosion resistance. It is designed to handle currents up to 12A and voltages up to 100V, making it suitable for moderate power electronic circuits.

The connector supports through-hole mounting, solder termination, and includes a stacking height of 2.54 mm. Its straight orientation facilitates straightforward PCB design and assembly. Operating temperature range from -55°C to 125°C accommodates demanding environments in industrial, manufacturing, and laboratory settings.

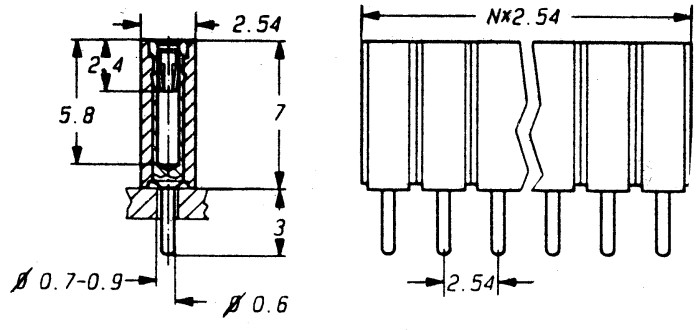

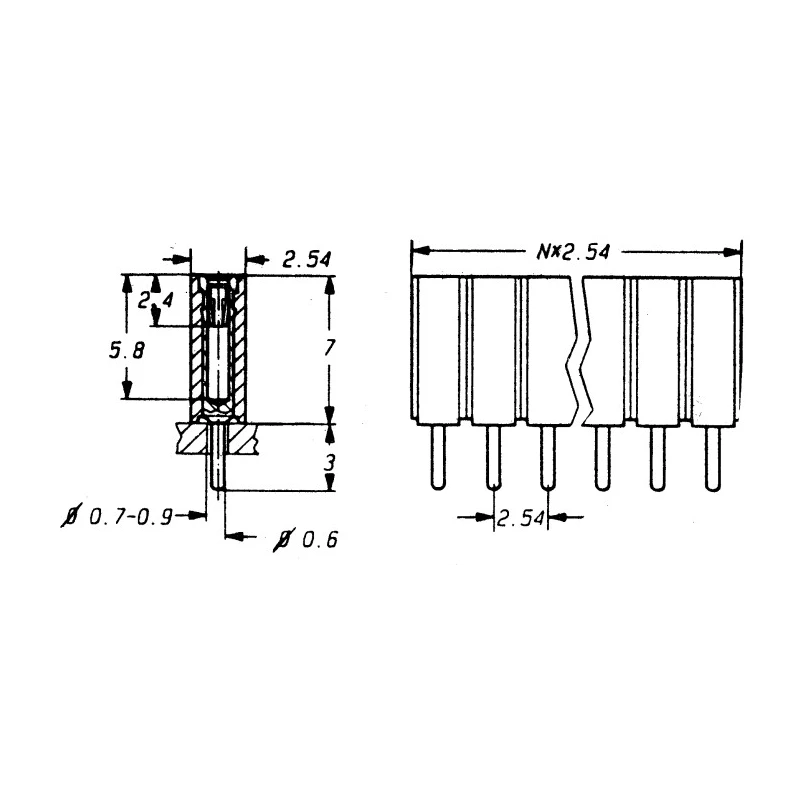

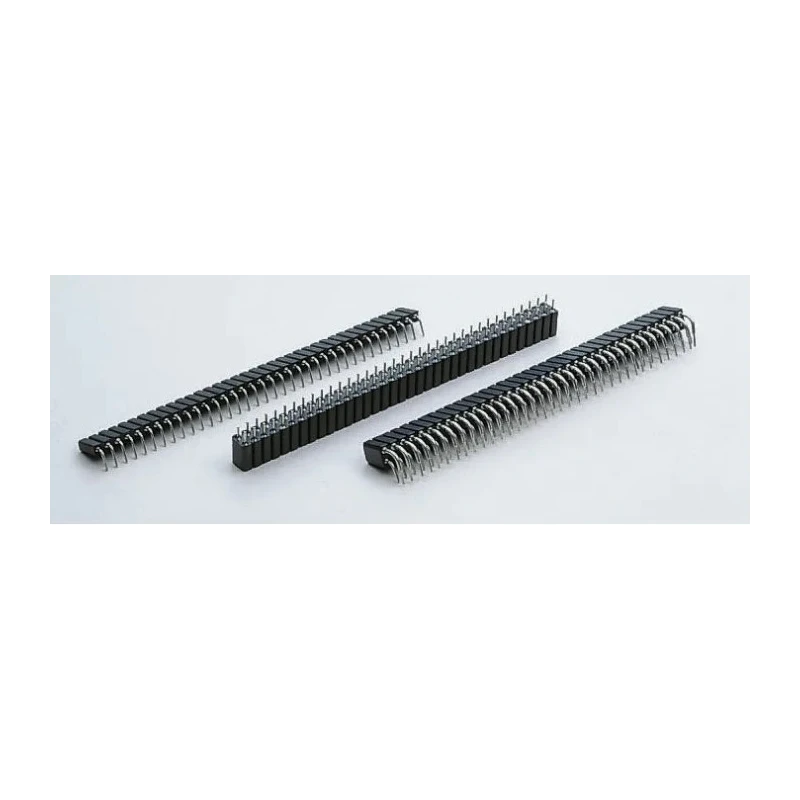

These large-diameter tulip contact strips are divisible and available in high-profile single or double row configurations. The contact design caters to square pins with a diagonal dimension of 0.65 mm or round pins with diameters ranging from 0.65 to 0.85 mm, providing versatile connection options for various pin types.

This socket series supports diverse applications including power connectors, communication equipment, and computer peripherals requiring reliable and precise interconnects. Its compliance with no specific standards or approvals is noted, but its construction and material quality align with industry expectations for PCB sockets in electronic and electrical systems.

Constructed with plastic housing for durability. Contact material is beryllium copper alloy with gold plating for reliable connectivity. Designed for board-to-board connector systems. Supports minimum and maximum operating temperatures of -55°C and 125°C respectively.

Termination type is solder, ensuring secure PCB mounting. Stacking height and row pitch both measure 2.54 mm. High-profile divisible strips available in single or double row versions. Compatible with square pins of diagonal 0.65 mm and round pins from 0.65 to 0.85 mm diameter.

This E-TEC BL Series PCB Socket is an excellent choice for electronic manufacturing industries focused on quality interconnections. Browse EnvMart for a wide selection of connectors to meet your specific engineering requirements.
