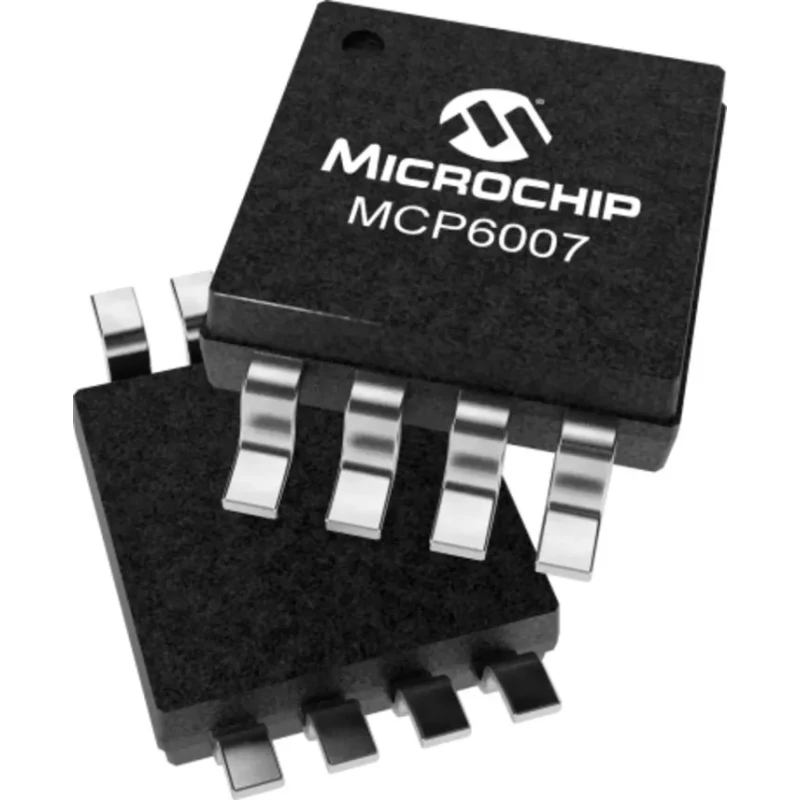

Microchip Operational Amplifier MCP6007-E/SN 1 MHz Gain Bandwidth Product 8-Pin MSOP 5.5V
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.1mm |
| Length | 3mm |
| Model | MCP6007-E/SN |
| Width | 3mm |
| Mount Type | Surface |
| Series | MCP6007 |
| Output Current | 30mA |
| Maximum Operating Temperature | 125°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Supply Voltage | 1.8V to 5.5V |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 5.5V |
| Supply Current | 50 μA (typical) |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | ±1 pA |
| Vos - Input Offset Voltage | 1.6 mV |
| Slew Rate | 1.9V/μs |
| Gain bandwidth product | 1 MHz (typical) |
| Input offset voltage | 1.6 mV (maximum) |
| EMIRR at 1.8 GHz | 95 dB (typical) |
Key Features
- Operates with a supply voltage up to 5.5V ensuring versatility in varied circuits.
- Low input bias current of ±1 pA minimizes signal distortion.
- Input offset voltage is limited to a maximum of 1.6 mV for precision applications.
- Supports wide operating temperature range from -40°C to 125°C for industrial resilience.
- Contains integrated EMI filtering for enhanced noise immunity.
- Roof-to-rail input and output stages provide maximum dynamic range.
- Typical supply current is 50 µA, suitable for low power designs.
- Pin count of 8 and compact MSOP package ensures compatibility with space-constrained boards.
Product Description
Microchip MCP6007-E/SN is a high-performance operational amplifier designed for precision amplification tasks with a typical gain bandwidth product of 1 MHz. It features an 8-pin MSOP surface mount package and operates reliably over a wide supply voltage range up to 5.5V.
This operational amplifier is optimized for low input bias current of ±1 pA and a maximum input offset voltage of 1.6 mV, making it suitable for sensitive analog signal processing in industrial, automotive, and instrumentation applications. The device supports rail-to-rail input and output, ensuring full dynamic range utilization.
With a low quiescent supply current of 50 µA, this amplifier is ideal for battery-powered and low power systems. Its extended temperature operation from -40°C to 125°C ensures functionality in harsh environments. Integrated EMI filtering enhances noise immunity, enabling stable performance across demanding applications.
Its compact MSOP package with 8 pins simplifies PCB integration without compromising on performance. The MCP6007-E/SN also complies with the automotive AEC-Q100 standard, confirming suitability for automotive use cases.
Operates at supply voltage up to 5.5V with low noise and distortion. Input bias current of ±1 pA provides precision input characteristics. High slew rate of 1.9 V/µs allows fast response to signal changes. Gain bandwidth product of 1 MHz ensures wide frequency response.
Rail-to-rail input/output maximizes signal range. Low power consumption with 50 µA typical supply current. Wide operating temperature range (-40°C to 125°C) suits industrial environments. EMI filtering improves operational stability in noisy conditions.
Compliant with automotive standard AEC-Q100. Compact 8-pin MSOP surface mount package for easy PCB design.
This operational amplifier is widely used in industrial control systems, automotive electronics, instrumentation, and general electronic circuits requiring precision low-power amplification. Its combination of reliability, precision, and compact form factor makes it a versatile choice for complex analog designs.
Explore more Operational Amplifiers and semiconductor components from Microchip in EnvMart's Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP6007-E/SN has a typical gain bandwidth product of 1 MHz, which ensures a wide frequency response for various applications.
This model operates with a supply voltage range from 1.8V to 5.5V, providing versatility for different circuit designs.
The input bias current for the MCP6007-E/SN is ±1 pA, which helps minimize signal distortion in sensitive applications.
The maximum input offset voltage for this unit is limited to 1.6 mV, making it suitable for precision applications.
It supports a wide operating temperature range from -40°C to 125°C, ensuring functionality in harsh environments.
The typical supply current for the MCP6007-E/SN is 50 µA, making it suitable for low power designs.
The MCP6007-E/SN comes in an 8-pin MSOP surface mount package, which is compact and ideal for space-constrained boards.
The slew rate for this operational amplifier is 1.9 V/µs, allowing for fast response to signal changes.
Yes, this operational amplifier complies with the automotive AEC-Q100 standard, confirming its suitability for automotive applications.
The MCP6007-E/SN contains integrated EMI filtering, which enhances noise immunity and provides stable performance in demanding applications.
This model has dimensions of 3mm in length, 3mm in width, and a height of 1.1mm, making it compact for integration into PCBs.
This operational amplifier is widely used in industrial control systems, automotive electronics, and instrumentation requiring precision low-power amplification.
