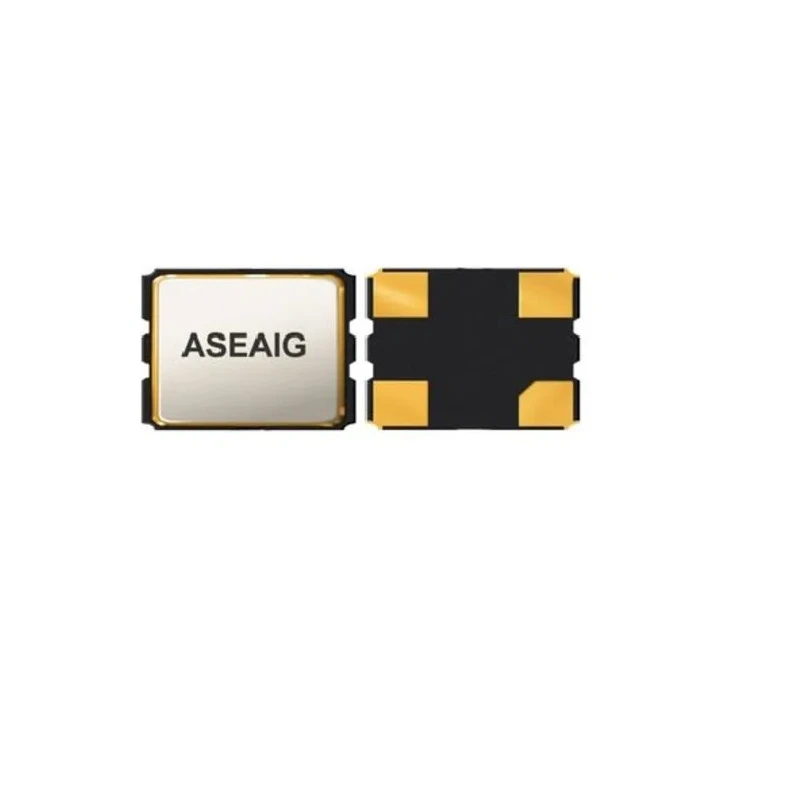

Abracon 40MHz Crystal Oscillator ±50 ppm CMOS 4-Pin Surface Mount ASEAIG-40.000MHZ-C-S-T

The Abracon ASEAIG-40.000MHZ-C-S-T is a high-quality 40MHz crystal oscillator designed for demanding automotive and industrial electronic applications. Featuring a hermetically sealed ceramic package, this device delivers excellent reliability and frequency stability of ±50 ppm over a wide temperature range from -40°C to 125°C, aligning with Automotive Grade 1 standards.

With a 4-pin surface mount design and CMOS output level, it integrates easily into compact PCBs requiring precise timing and low power consumption. The oscillator operates within a supply voltage range of 3.14V to 3.47V, making it suitable for modern electronic circuits requiring low voltage operations.

The device’s robust design includes certification to the AEC-Q200 automotive standard and RoHS compliance, ensuring it meets stringent environmental and performance requirements. Dimensions measuring 3.2mm in length, 2.5mm in width, and 2.1mm in height allow for space-efficient installations.

This ASEAIG series oscillator is ideal for use in advanced automotive systems such as ADAS, LiDAR, GPS navigation, and infotainment systems, as well as various industrial electronic devices demanding stable and precise oscillation under diverse environmental conditions.

This crystal oscillator operates at 40MHz frequency suitable for automotive and industrial applications. It has a frequency stability of ±50 ppm, ensuring accurate signal timing. The device features a hermetically seam-sealed ceramic package for enhanced reliability.

Operating temperature range extends from -40°C to 125°C, meeting Automotive Grade 1 requirements. It features a 4-pin surface mount design with CMOS output level for integrated circuit compatibility. Supply voltage ranges between 3.14V minimum and 3.47V maximum, optimized for low power consumption.

Certified to automotive standard AEC-Q200 and RoHS compliant for environmental safety. This product is supplied on tape and reel packaging for efficient automated assembly. Compact dimensions of 3.2mm length, 2.5mm width, and 2.1mm height support miniaturized circuit designs.

The device is compatible with ADAS, LiDAR, GPS, and infotainment system applications in automotive and industrial sectors.

For engineering teams and procurement professionals, this crystal oscillator offers a high-performance solution meeting industrial and automotive-grade standards, ensuring reliable frequency generation for critical embedded systems. Explore related components in the Crystal Oscillator category and leverage Abracon’s trusted technology for your designs.
