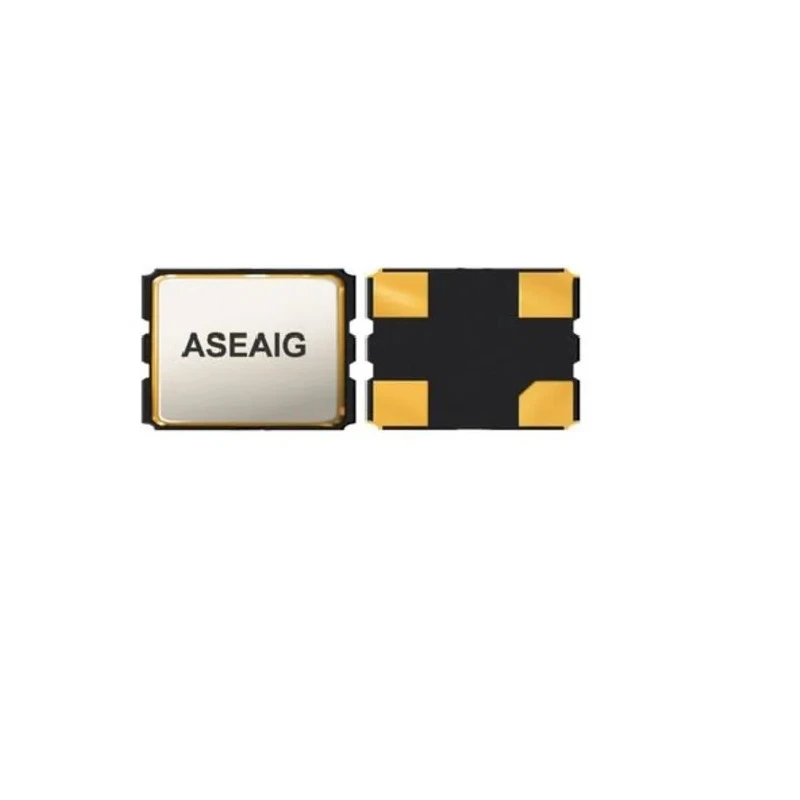

Abracon 24MHz Crystal Oscillator ±50 ppm CMOS 4-Pin Surface Mount ASEAIG-24.000MHZ-C-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 2.1mm |
| Length | 3.2mm |
| Model | ASEAIG-24.000MHZ-C-T |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ASEAIG |
| Maximum Operating Temperature | 125°C |
| Output Frequency | 24MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Automotive Standard | AEC-Q200 |
| Maximum Supply Voltage | 3.47V |
| Minimum Supply Voltage | 3.14V |
| Oscillator Type | Crystal Oscillator |
| Output Level | CMOS |
| Automotive Grade 1 | -40°C to +125°C |
Key Features
- Operates with a minimum supply voltage of 3.14V and maximum of 3.47V.
- Compact hermetically sealed ceramic package measuring 3.2mm x 2.5mm x 2.1mm.
- Automotive Grade 1 rated, compliant with AEC-Q200 standards for reliability.
- Suitable for use in harsh environments from -40°C to +125°C operating temperature range.
- Supplied in tape and reel packaging for automated PCB assembly.
- Output level features CMOS logic compatible signals.
- 4-pin mount type surface mount device for space-saving PCB layouts.
Product Description
Abracon ASEAIG-24.000MHZ-C-T is a 24MHz crystal oscillator featuring ±50 ppm frequency tolerance and CMOS output in a 4-pin surface mount ceramic package. The device is designed to meet automotive and industrial requirements, with a hermetically sealed package ensuring durability and reliability in harsh operating conditions.
This oscillator series is Automotive Grade 1 certified to AEC-Q200 standards, capable of functioning across a wide temperature range from -40°C up to +125°C. It operates at voltages between 3.14V and 3.47V and provides a stable CMOS output level suitable for infotainment systems, GPS navigation, ADAS, and LiDAR applications.
The compact dimensions of 3.2mm length, 2.5mm width, and 2.1mm height allow for efficient PCB space usage. Its tape and reel packaging format supports automated surface mount assembly processes, enhancing manufacturing efficiency.
Frequency stability is ±50 ppm. Operating voltage range from 3.14V to 3.47V. Compact hermetically sealed ceramic package. AEC-Q200 certified automotive grade component. Wide operating temperature of -40°C to +125°C. CMOS output level compatible with logic circuits.
4-pin surface mount configuration. Tape and reel packaging for manufacturing ease.
This crystal oscillator is optimized for industrial-grade applications such as automotive electronics, industrial automation, and advanced sensor systems. It ensures reliable timing for critical systems including infotainment clusters, navigation devices, and driver assistance systems. Abracon products provide quality and endurance required for high-performance industrial environments.
Explore more Crystal Oscillators and related components at EnvMart for your electronics manufacturing and design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this model is 24MHz.
This unit operates within a temperature range of -40°C to +125°C.
The dimensions of this crystal oscillator are 3.2mm in length, 2.5mm in width, and 2.1mm in height.
It operates with a minimum supply voltage of 3.14V and a maximum of 3.47V.
Yes, it is compliant with AEC-Q200 standards, making it an Automotive Grade 1 component.
This model provides a CMOS output level compatible with logic circuits.
It is supplied in tape and reel packaging, which is suitable for automated PCB assembly.
This crystal oscillator has a pin count of 4.
It features a 4-pin surface mount configuration.
It is optimized for automotive electronics, industrial automation, and advanced sensor systems.
The frequency tolerance of this model is ±50 ppm.
The country of origin for this crystal oscillator is India.
