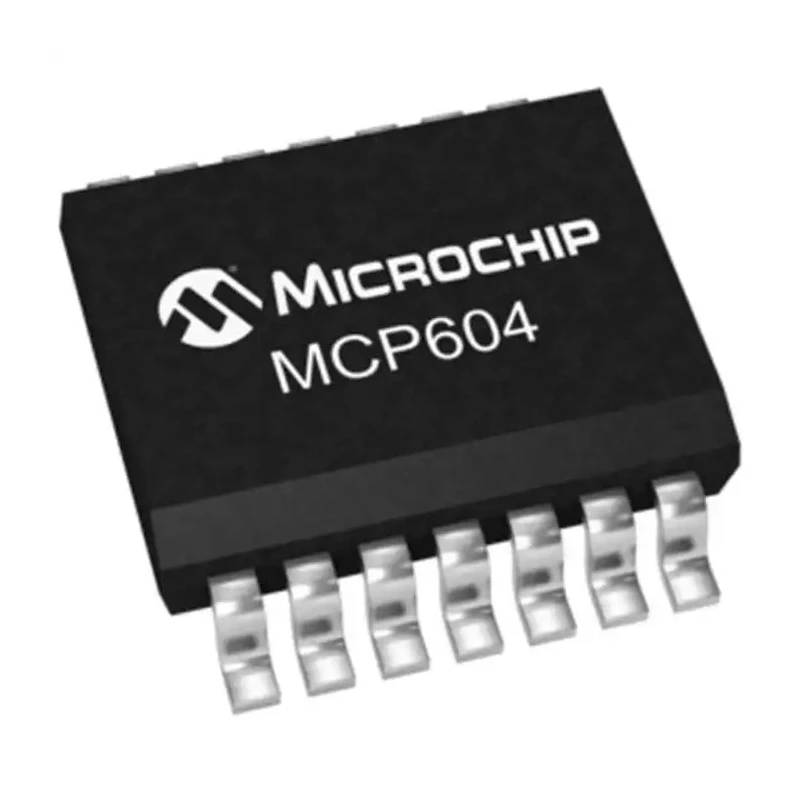

Microchip Operational Amplifier 2.8 MHz 14-Pin SOIC 5V MCP604T-I/SL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.25mm |
| Length | 8.65mm |
| Model | MCP604T-I/SL |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | MCP604 |
| Output Current | 30mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 2.8MHz |
| Input Bias Current | 1 pA |
| Vos - Input Offset Voltage | 2 mV |
| Slew Rate | 2.3V/μs |
Key Features
- Operates on a single supply voltage range from 2.7V to 5V.
- Rail-to-rail output and input voltage range includes ground for versatile signal handling.
- Low quiescent current draw of approximately 230 μA per amplifier enhances battery-powered applications.
- Industrial operating temperature range from -40°C to +85°C ensures reliability in harsh environments.
- Input offset voltage typically 2 mV with low input bias current of 1 pA improves precision in analog circuits.
- Slew rate of 2.3 V/μs supports responsive signal amplification.
- Maximum output current of 30 mA supports driving moderate loads directly.
- Compact dimensions of 8.65 mm length, 3.9 mm width, and 1.25 mm height fit dense PCB layouts.
Product Description
The Microchip MCP604T-I/SL is a low-power single-supply operational amplifier designed for precision analog signal processing in industrial, electronic, and manufacturing applications. It features a gain bandwidth product of 2.8 MHz, enabling wideband amplification in applications such as A/D converter driver circuits and anti-aliasing filters.
This device operates from a single supply voltage range of 2.7V to 5V and supports rail-to-rail output with an input voltage range that extends 0.3 V below ground, making it versatile for single-supply systems. With a typical quiescent current of 230 μA per amplifier, it is suitable for battery-operated and energy-sensitive designs.
Designed for use in harsh environments, it has an industrial temperature rating from -40°C to +85°C. The input offset voltage is low at 2 mV with a minimal input bias current of 1 pA, ensuring high accuracy and minimal signal distortion. Its slew rate of 2.3 V/μs allows for efficient signal handling, and it can deliver an output current up to 30 mA.
Packaged in a compact 14-pin SOIC body measuring 8.65 mm by 3.9 mm by 1.25 mm, the MCP604T-I/SL integrates easily into printed circuit boards where space is critical. It is RoHS compliant, meeting environmental standards for lead-free manufacturing.
Industrial use cases include signal amplification for sensors, data acquisition systems, control systems, and portable electronic devices. Operates with a single supply voltage from 2.7V to 5V. Rail-to-rail output for maximum output swing.
Low input bias current and offset voltage enhance precision. Suitable for A/D converter driver amplification and anti-aliasing filtering. Industrial temperature range ensures reliable operation. Compact SOIC surface mount package for space-saving designs.
Explore more amplifiers and Operational Amplifiers at EnvMart for industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 2.8 MHz, enabling wideband amplification in various applications.
It operates on a single supply voltage range from 2.7V to 5V, making it suitable for various electronic applications.
The MCP604T-I/SL can provide a maximum output current of 30 mA, allowing it to drive moderate loads directly.
This operational amplifier has compact dimensions of 8.65 mm in length, 3.9 mm in width, and 1.25 mm in height, suitable for dense PCB layouts.
It is rated for an industrial operating temperature range from -40°C to +85°C, ensuring reliable performance in harsh environments.
The input offset voltage is typically 2 mV, which helps improve precision in analog circuits.
The slew rate of this model is 2.3 V/μs, supporting responsive signal amplification.
The input bias current is very low at 1 pA, which enhances the precision of the device.
It is packaged in a 14-pin SOIC format, which is suitable for surface mounting on PCBs.
Yes, this operational amplifier is RoHS compliant, meeting environmental standards for lead-free manufacturing.
It is suitable for applications such as A/D converter driver circuits, anti-aliasing filters, and signal amplification for sensors.
This model is designed for surface mounting, which is ideal for space-constrained PCB designs.
