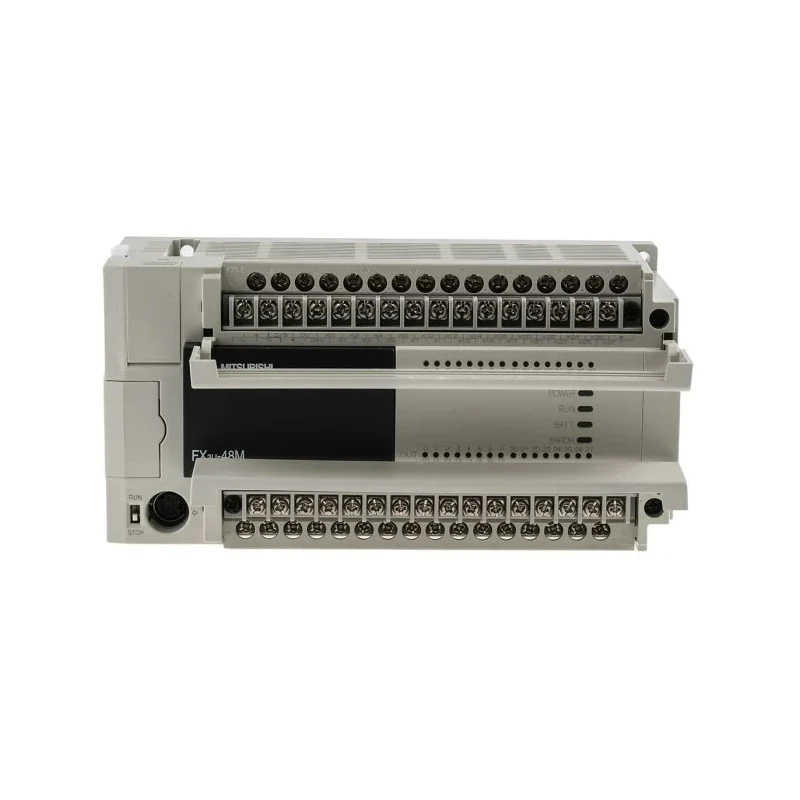

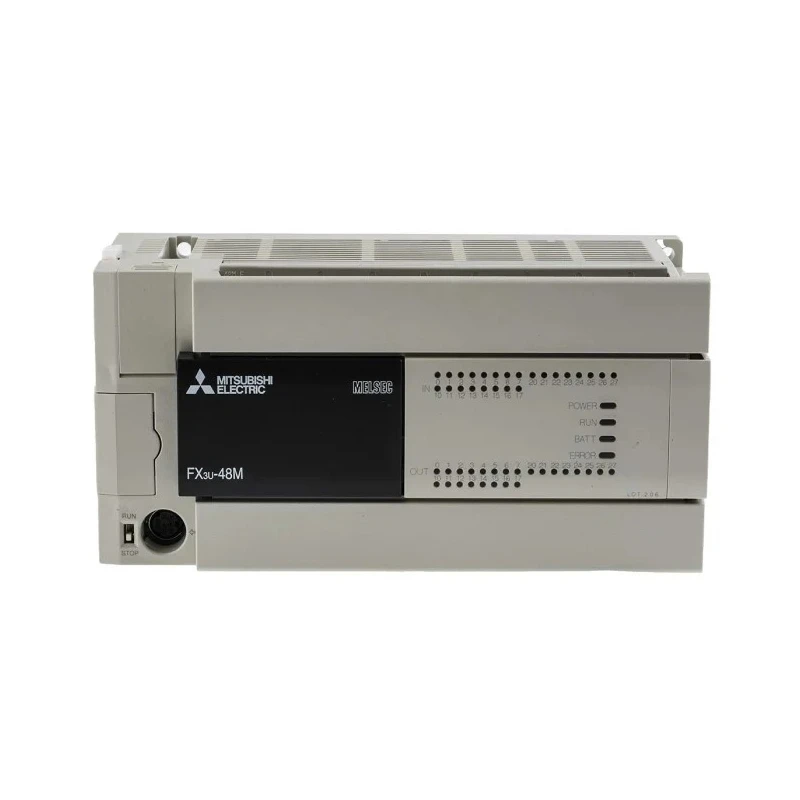

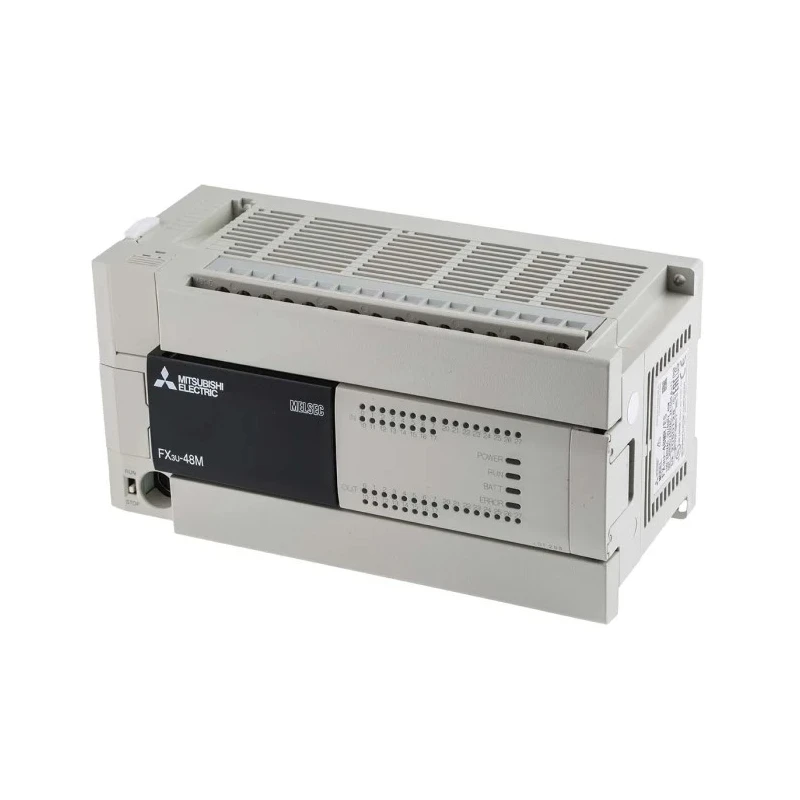

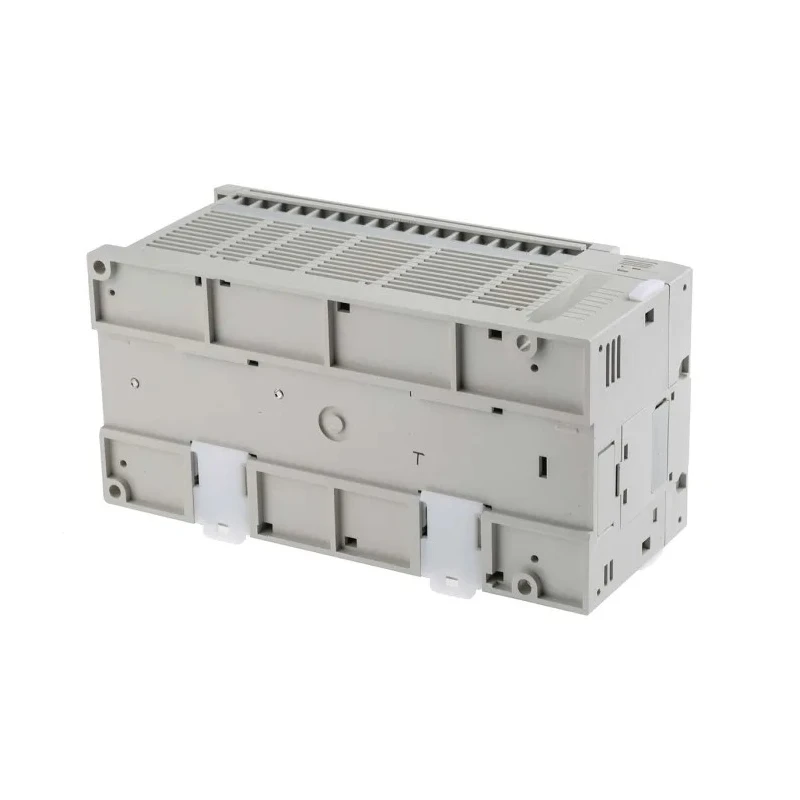

RS PRO FX3U Series Logic Module 24-Input Sink, 24 Relay Outputs, 8A Output Current FX3U-48MR/ES
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | RS PRO |
| Length | 182mm |
| Model | FX3U-48MR/ES |
| Depth | 86mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Number of inputs | 24 |
| Output type | Relay |
| Series | FX3U |
| Output Current | 8A |
| Input Type | Sink |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | 0°C |
| Number of outputs | 24 |
| Program Capacity | 64000Steps |
| Supply Voltage | 100, 240V ac |
| Standards/Approvals | CE, UL |
| Communication Port Type | RS232C, RS422, RS485, USB |
| Programming Language Used | Ladder Logic |
Key Features
- Operates reliably within 0°C to 50°C temperature range.
- Supports DIN rail mounting with screw termination for secure installation.
- Equipped with RS232C, RS422, RS485, and USB communication ports for flexible connectivity.
- Program Capacity of 64000 steps using Ladder Logic programming language.
- Incorporates battery backup for memory retention during power loss.
- Output relay contact rating of 8A ensures robust switching capability.
Product Description
Mitsubishi Electric FX3U-48MR/ES is a high-performance logic module in the FX3U series designed for industrial and factory automation environments. This logic module offers 24 sink-type inputs and 24 relay outputs, providing a versatile solution for complex control tasks that require numerous input/output points.
Constructed to operate reliably within a temperature range of 0°C to 50°C, the unit is engineered for harsh industrial settings. The DIN rail mounting design with screw terminals facilitates secure and easy installation, ensuring the module remains stable during operation.
The logic module supports multiple communication protocols including RS232C, RS422, RS485, and USB ports, catering to diverse integration needs in automation systems. A large program capacity of 64000 steps programmed via Ladder Logic language allows complex program development and control logic implementation.
A built-in battery backup safeguards the memory, ensuring program retention even during power interruptions. The compact dimensions of 182mm length, 90mm width, and 86mm depth allow installation in control cabinets with limited space.
Operating on a supply voltage of 100 to 240V AC, the logic module features relay outputs with an 8A contact rating, enabling reliable switching and control of connected devices and machinery.
Industrial-grade logic module with 24 sink inputs and 24 relay outputs. Supports multiple communication ports including USB and RS485. Robust program capacity suitable for complex automation processes. Includes battery backup for data protection during power loss.
Compliant with CE and UL standards for safety and quality assurance. Compact design with DIN rail mount for flexible installation. Ideal for applications in factory automation, manufacturing, and process control. Discover more Mitsubishi Electric automation components and Logic Modules at EnvMart to enhance your industrial control systems with reliable and advanced technology.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 50°C.
This unit features 24 sink-type inputs and 24 relay outputs.
It has a program capacity of 64000 steps, allowing for complex control logic development.
It supports RS232C, RS422, RS485, and USB communication ports for flexible connectivity.
The relay outputs have an output current rating of 8A.
This model operates on a supply voltage of 100 to 240V AC.
It uses Ladder Logic programming language for program development.
The dimensions are 182mm in length, 90mm in width, and 86mm in depth.
Yes, it is designed for DIN rail mounting with screw termination for secure installation.
It complies with CE and UL standards for safety and quality assurance.
The minimum operating temperature is 0°C.
Yes, it incorporates a battery backup to safeguard memory retention during power loss.
