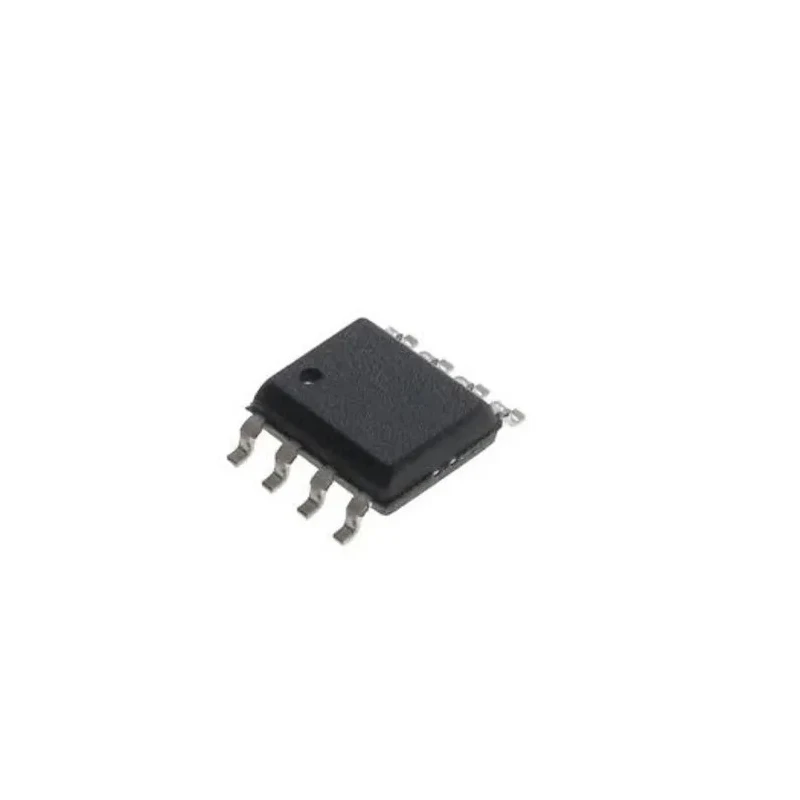

Microchip 4 kB EEPROM 450 ns 8-Pin SOIC I2C AT24C04D-SSHM-B

The Microchip AT24C04D-SSHM-B is a 4 kB electrically erasable programmable read-only memory (EEPROM) device, designed to offer reliable non-volatile memory capabilities in compact 8-Pin SOIC surface mount packaging.

Organized as 512 words of 8 bits each, this EEPROM supports the industry-standard I2C interface with a maximum clock frequency of 1000 kHz, enabling efficient serial data communication in embedded and industrial systems.

Operating at low voltages from 1.7 V up to 3.6 V with a typical supply current of 500 μA, it is highly suitable for low power consumption applications. Its fast maximum random access time of 450 ns allows for quick data read and write cycles.

The device supports cascading of up to four devices on a common 2-wire bus, providing scalability for higher memory requirements.

With an operating temperature range of -40°C to 85°C and compliance to RoHS standards, this EEPROM is ideal for automotive, industrial, and commercial electronic applications where reliability and environmental compliance are critical.

It offers high reliability with endurance rated for 1,000,000 write cycles and guaranteed data retention for 100 years, making it a durable solution for long-term data storage.

Typical uses include industrial control systems, communication devices, consumer electronics, and embedded systems requiring non-volatile memory for program data or parameter storage.

The EEPROM has a memory size of 4 kB organized into 512 words of 8 bits each. Supports I2C interface with a maximum clock frequency of 1000 kHz for efficient data communication. Housed in a compact 8-Pin SOIC surface mount package with a height of 1.5 mm.

Operates over a wide voltage range from 1.7 V to 3.6 V ensuring low power consumption with a supply current of 500 μA. Allows cascading of up to four devices on a common 2-wire bus for extended memory applications. High reliability with endurance up to 1,000,000 write cycles and data retention of 100 years.

Operating temperature range from -40°C to 85°C suitable for harsh industrial environments. Fast random access time of 450 ns enables rapid data read and write operations. Fully compliant with RoHS standards ensuring environmental safety.

Optimized for use in industrial, commercial, and embedded system applications requiring non-volatile memory storage. Explore more EEPROM solutions and semiconductor products at EnvMart for your electronics and electrical component needs.
