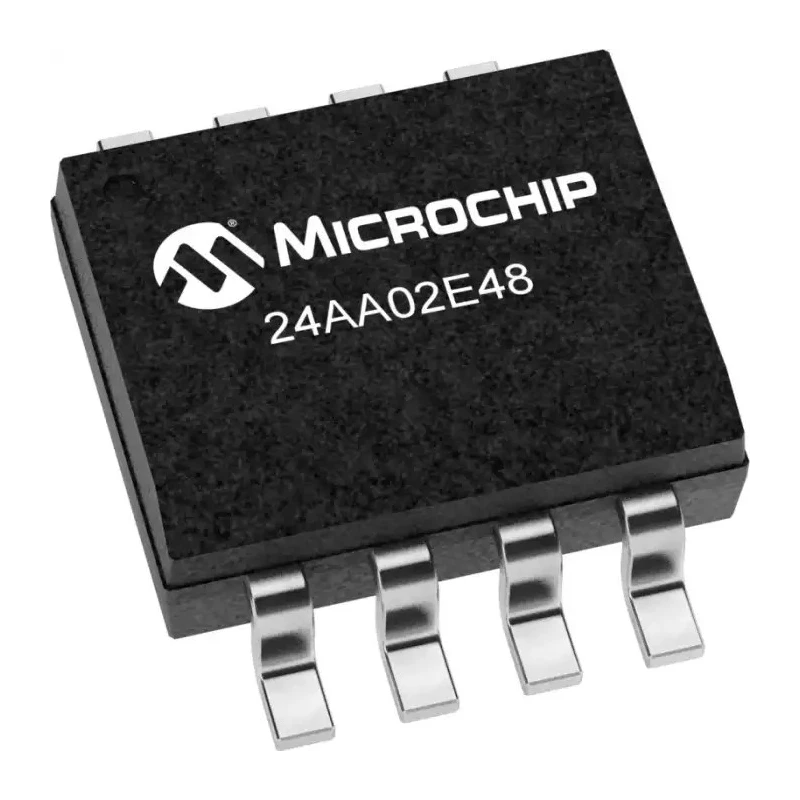

Microchip 2 kB Serial EEPROM 900 ns Maximum Random Access Time 8-Pin SOIC Serial-I2C 24AA02E48T-I/SN

Microchip 24AA02E48T-I/SN is a high-performance serial EEPROM with 2 kB memory capacity designed for industrial and commercial electronic applications. It features a 900 ns maximum random access time and utilizes low-power CMOS technology. This device is packaged in an 8-pin SOIC form factor and supports a 2-wire Serial-I2C interface for seamless system integration.

The memory is organized internally as two blocks of 128 x 8-bit, totaling 256 words. It operates over a wide voltage range from 1.7 V to 5.5 V, making it compatible with various power supply configurations. With a maximum clock frequency of 1000 kHz, it provides fast data communication and access speeds.

Designed for reliability, the 24AA02E48T-I/SN provides data retention of over 200 years and supports more than one million write/erase cycles. It operates within an industrial temperature range from -40°C up to +85°C, making it suitable for a wide range of environments.

The device includes Schmitt trigger inputs that offer enhanced noise immunity, along with ESD protection rating exceeding 4000 V to withstand electrostatic discharges, ensuring stable operation in harsh conditions.

Compactly sized at 4.9 mm length, 3.9 mm width, and 1.75 mm height, this EEPROM is surface mount compatible and ideal for embedded system designs requiring non-volatile memory. Its low power consumption and industrial-grade robustness make it suitable for applications in industrial control, automotive electronics, consumer devices, and data logging equipment.

Low-power CMOS technology with 2-wire I2C compatible serial interface. Memory organized as two blocks of 128 x 8-bit with 256 words total. Operates from 1.7 V to 5.5 V supply voltage range. Maximum clock frequency up to 1000 kHz for fast data access.

Data retention guaranteed for over 200 years with over 1 million write/erase cycles. Operating temperature range from -40°C to +85°C for industrial applications. Schmitt trigger inputs for robust noise suppression. ESD protection exceeding 4000 V to ensure reliability.

Compact dimensions of 4.9 mm length, 3.9 mm width, and 1.75 mm height.

The 24AA02E48T-I/SN EEPROM is suitable for diverse industrial, automation, embedded systems, and electronics manufacturing environments requiring stable and durable non-volatile memory solutions. For further product options and technical documents, please explore the category on EnvMart.
