ABB xEffect Miniature Circuit Breaker, 2 Poles, 2A Current Rating, Type S, 230V AC, 60V DC, 10 kA Breaking 278806 FAZ-S2/2

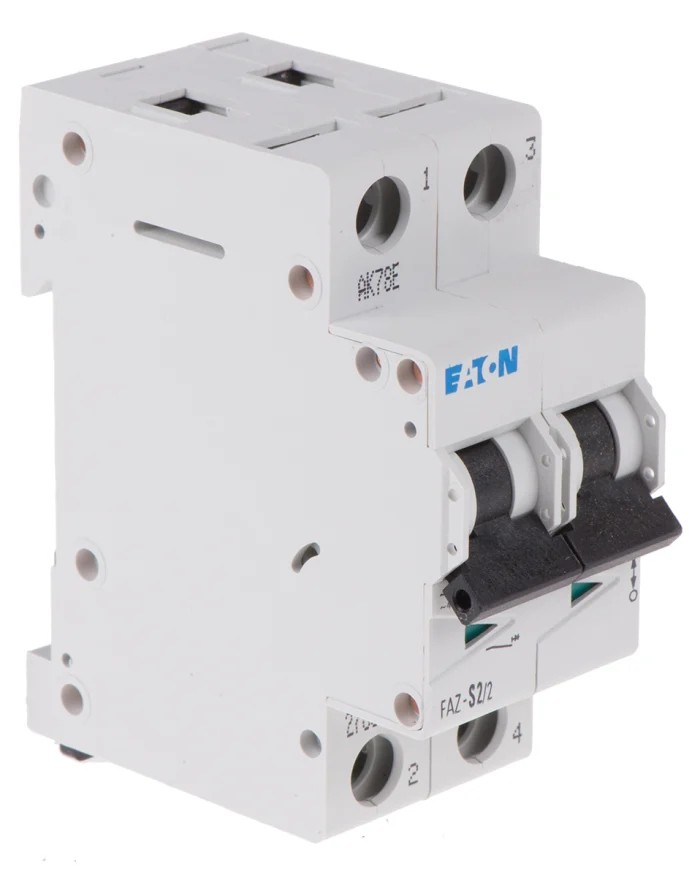

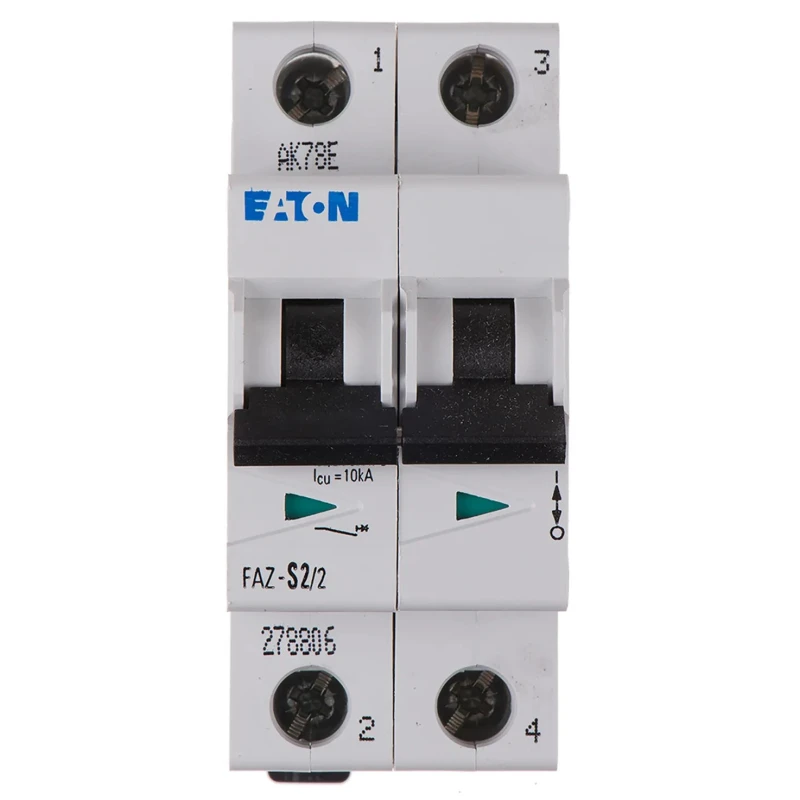

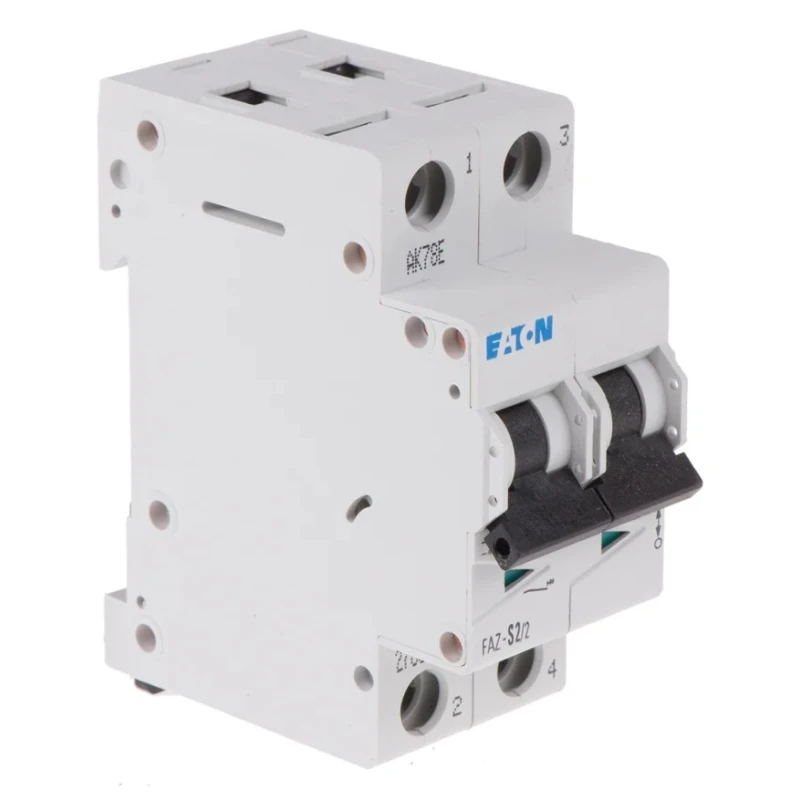

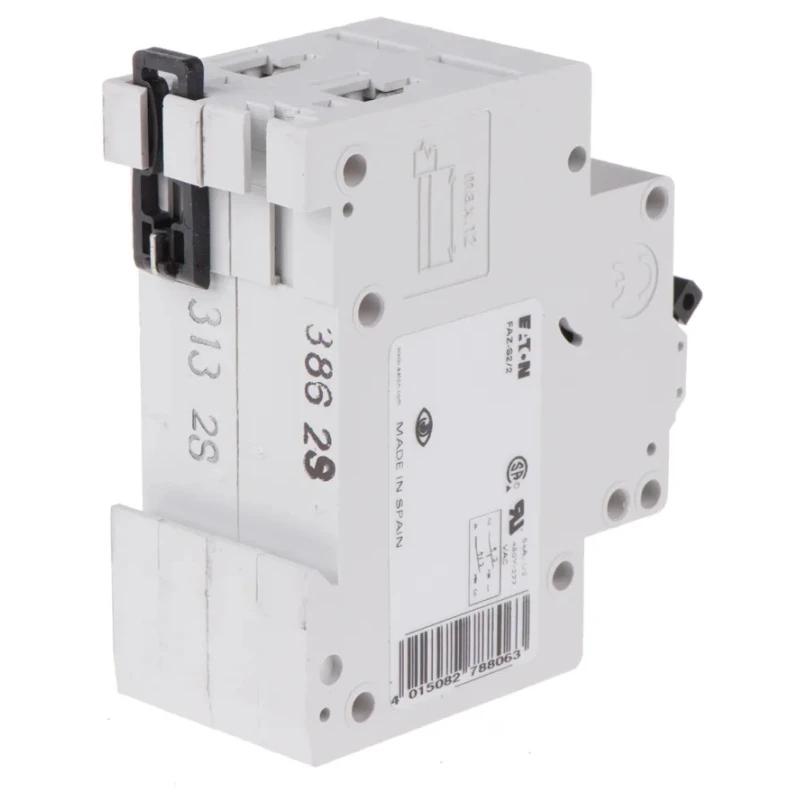

Eaton 278806 FAZ-S2/2 Miniature Circuit Breaker is a reliable electrical protection device designed for safeguarding domestic and commercial electrical panels against overcurrents and short circuits. Featuring 2 poles and a 2 amp current rating, this robust MCB belongs to the xEffect series and is engineered to handle AC voltages up to 230V and DC voltages up to 60V.

Equipped with Type S tripping characteristics, the breaker provides a time-delayed trip response to avoid nuisance tripping while ensuring safety against hazardous faults. The thermal magnetic tripping mechanism offers both overload and short circuit protection, triggered instantaneously when needed, to prevent damage to connected equipment.

Its compact form factor, measuring 35mm wide and 74mm deep, allows easy clip-on mounting on DIN rails without requiring special tools. The toggle switch reset actuator enables quick manual reset after fault clearance. Twin-purpose screw terminals facilitate wiring flexibility with cable entry from either the top or bottom.

This MCB delivers a breaking capacity of 10 kA, capable of safely interrupting intense fault currents. The IP20 rated enclosure protects against contact with objects larger than 1mm, suitable for use in controlled electrical enclosures. The device’s operational lifespan exceeds 10,000 cycles, ensuring long-term reliability in various industrial, commercial, and residential electrical installations.

Instantaneous break time for rapid protection against short circuits. Toggle switch reset actuator provides easy manual operation. Thermal magnetic tripping mechanism combines overload and short circuit protection. Compact dimensions with 35mm width and 74mm depth for DIN rail mounting.

Supports AC voltage of 230V and DC voltage of 60V for versatile applications. IP20 rated enclosure ensures basic protection against solid objects. Wide operating temperature range suitable for demanding electrical environments.

Twin-purpose screw terminals allow flexible cable connections from top or bottom. Robust design with over 10,000 operating cycles for long service life.

Ideal for electrical, automation, and control systems in residential, commercial, and light industrial environments. Eaton’s xEffect Miniature Circuit Breakers combine durability and performance for circuit protection needs.
