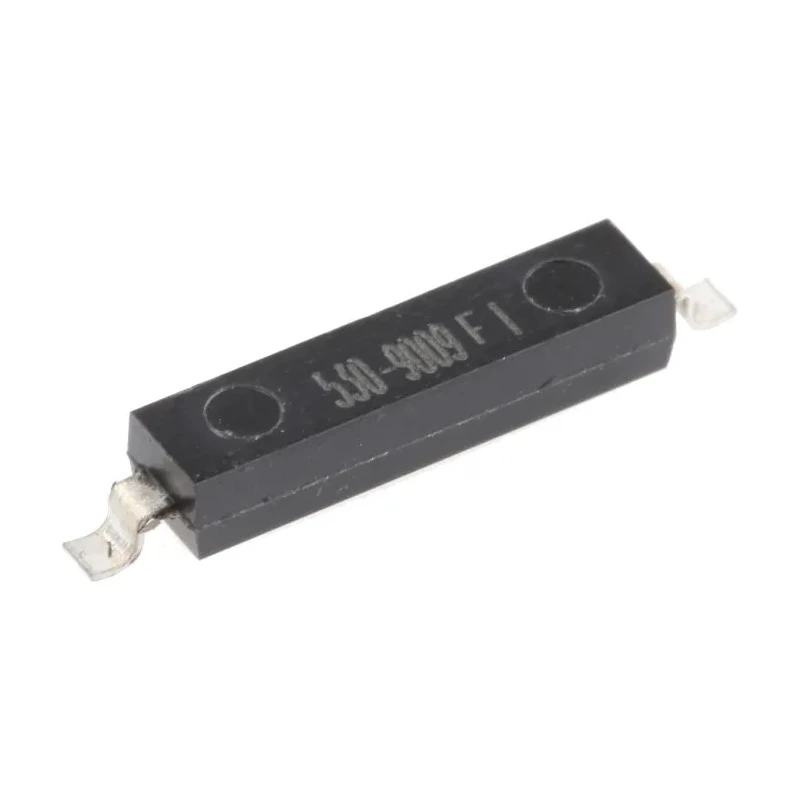

RS PRO Reed Switch Rectangular Body Epoxy Resin Housing 200V AC, 1A 530-9009

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Reed Switch Rectangular Body Epoxy Resin Housing 200V AC, 1A 530-9009

Name: RS PRO Reed Switch Rectangular Body Epoxy Resin Housing 200V AC, 1A 530-9009
Brand: RS PRO
SKU: 338983
Price: 302.91 INR
Availability: InStock



Category Reed Switch Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Length	11.6mm
Model	530-9009
Depth	2.3mm
Width	2.95mm
Housing Material	Epoxy Resin
Series	RS PRO
Maximum Operating Temperature	130°C
Minimum Operating Temperature	-40°C
Switching Current	1A
Body Style	Rectangular
Standards/Approvals	RoHS
Switching DC Voltage	200V dc
Switching AC Voltage	200V ac

Key Features

This reed switch features a compact design with dimensions of 11.6mm length, 2.95mm width, and 2.3mm depth.
It has a normally open (NO) output function providing reliable switching performance.
The housing material is epoxy resin offering durability and electrical insulation.
Operating temperature ranges from -40°C to 130°C, suitable for demanding industrial environments.
The switch supports both AC and DC voltages up to 200V.
Complies with RoHS standards ensuring restricted hazardous substances compliance.
Ideal for use as a switching element in microphones, telecommunications, and electronic circuits.
Small dimension and surface mount design facilitates easy PCB integration.

Product Description

RS PRO 530-9009 Reed Switch is a small, surface mount magnetic proximity sensor designed for electronic printed circuit boards (PCBs) and low power applications. It features a rectangular epoxy resin housing that ensures both durability and electrical safety. This switch operates with a normally open (NO) function, switching currents up to 1A, and is rated for voltages of 200V AC and DC.

The compact dimensions of 11.6mm in length, 2.95mm in width, and 2.3mm in depth make it suitable for tight spaces on PCB assemblies. It is capable of operating reliably in temperature environments ranging from -40°C to 130°C, making it applicable for demanding industrial, telecommunications, and electronic manufacturing uses.

Certified to comply with RoHS standards, this reed switch is environmentally friendly and safe for electronic equipment production. It is particularly used as a switching element for microphones and other low power switching needs in electronic circuits. The RS PRO 530-9009 is part of the trusted RS PRO series delivering quality and reliability.

This Reed Switch features a compact design with dimensions of 11.6mm length, 2.95mm width, and 2.3mm depth. It has a normally open (NO) output function providing reliable switching performance. The housing material is epoxy resin offering durability and electrical insulation.

Operating temperature ranges from -40°C to 130°C, suitable for demanding industrial environments. The switch supports both AC and DC voltages up to 200V. Complies with RoHS standards ensuring restricted hazardous substances compliance.

Ideal for use as a switching element in microphones, telecommunications, and electronic circuits. Small dimension and surface mount design facilitates easy PCB integration. Part of the RS PRO series for consistent quality and performance.

Suitable for industrial, electronic manufacturing, telecommunications, and laboratory applications requiring precise and reliable low power switching solutions. Explore more RS PRO magnetic proximity switches and related products at EnvMart for your automation and electrical projects.
