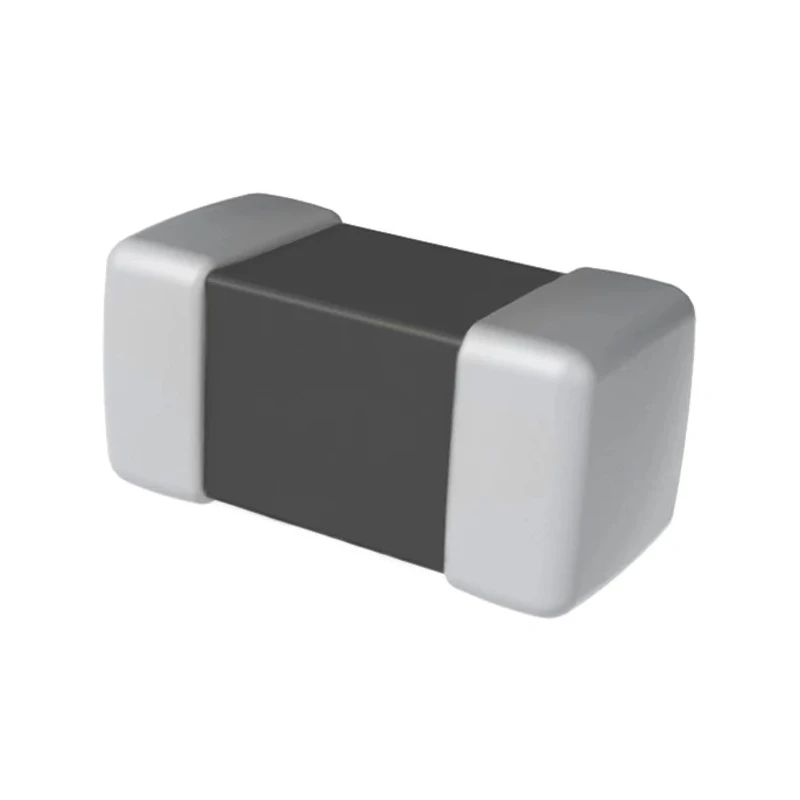

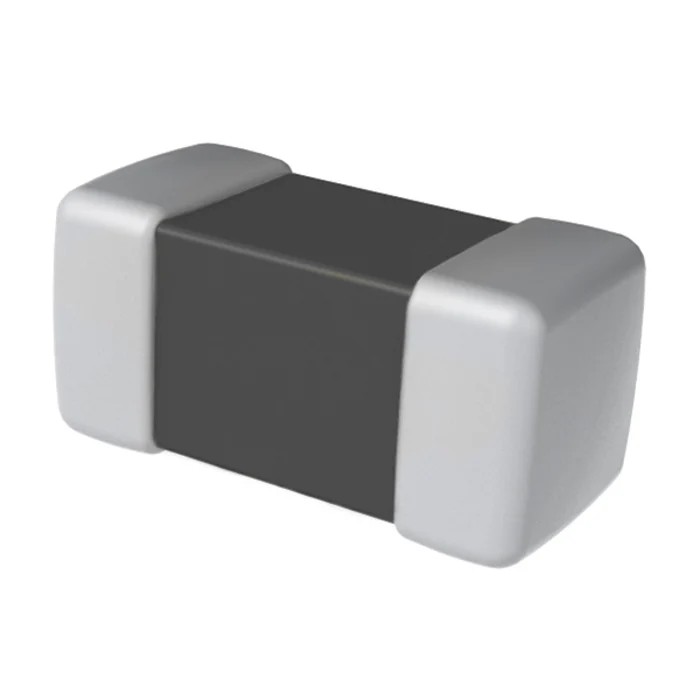

KEMET Ferrite Bead Tape & Reel 0.031 mm Chip Bead 39.4 Ω Impedance at 25 MHz 100 Ω at 100 MHz Z0603C101BPWZT

Free Delivery in India | Lowest Global Shipping Charges

KEMET Ferrite Bead Tape & Reel 0.031 mm Chip Bead 39.4 Ω Impedance at 25 MHz 100 Ω at 100 MHz Z0603C101BPWZT

Name: KEMET Ferrite Bead Tape & Reel 0.031 mm Chip Bead 39.4 Ω Impedance at 25 MHz 100 Ω at 100 MHz Z0603C101BPWZT
Brand: KEMET
SKU: 338874
Price: 0.08 USD
Availability: InStock



Category Ferrite Bead Brand KEMET Condition New

Specifications

Country of Origin	Philippines
Brand	KEMET
Material	Ferrite
Height	0.031mm
Length	0.063mm
Model	Z0603C101BPWZT
Depth	0.031mm
Packaging	Tape & Reel
Current Rating	1.2A
Series	Z-PWZ
Maximum Operating Temperature	125°C
Package Type	Tape & Reel
Sub Type	Chip Bead
Minimum Operating Temperature	40°C
Standards/Approvals	RoHS and REACH compliant
Maximum DC Resistance	0.45Ω
Impedance at 100 MHz	100Ω
Impedance at 25 MHz	39.4Ω
Impedance at 300 MHz	146.5Ω
Impedance at 50 MHz	67.1Ω
Impedance at 1 GHz	170Ω

Key Features

High impedance values of 39.4 Ω at 25 MHz and 100 Ω at 100 MHz ensure effective EMI filtering.
Tape & reel packaging supports automated PCB assembly processes.
Compact chip bead design with dimensions 0.063 mm length and 0.031 mm height and depth.
Supports a high current rating of 1.2 A for robust power line noise suppression.
Operates reliably from -40°C to +125°C for use in demanding environments.
Constructed from ferrite material offering high reliability and waveform correction.
RoHS and REACH compliant ensuring adherence to environmental standards.
Suitable for high frequency digital equipment requiring low power consumption noise suppression.

Product Description

KEMET Z0603C101BPWZT Ferrite Bead is a high-impedance chip bead designed for power line noise suppression in electronic circuits. Packaged in a tape & reel form factor with extremely small dimensions of 0.063 mm length and 0.031 mm height and depth, it supports automated assembly and compact PCB designs.

This ferrite bead offers impedance values of 39.4 Ω at 25 MHz, 67.1 Ω at 50 MHz, 100 Ω at 100 MHz, 146.5 Ω at 300 MHz, and 170 Ω at 1 GHz, making it highly effective in filtering EMI across a wide frequency range. It supports a current rating of 1.2 A, enabling it to handle substantial current noise on power lines.

Its robust operating temperature range from -40°C to +125°C ensures reliable performance in automotive and industrial applications. Made from ferrite material, it delivers high reliability and excellent waveform correction for digital signals. The low stray capacitance due to its wire-wound structure further enhances its performance.

The product is RoHS and REACH compliant, meeting modern environmental regulations. Ideal for use in industrial, automotive, telecommunications, and other high-frequency digital mobile equipment environments that require efficient EMI filtering and low power consumption.

High impedance values for effective EMI noise suppression. Tape & reel packaging for efficient manufacturing automation. Compact chip bead design conserves PCB space. Wide operating temperature range for versatile applications.

Ferrite material ensures durability and performance. RoHS and REACH compliant for environmental safety. Suitable for power line high impedance applications. Optimized for digital and automotive system noise suppression.
