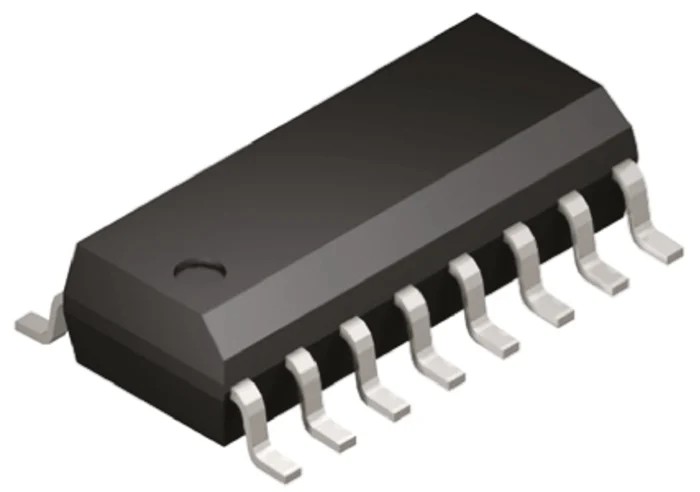

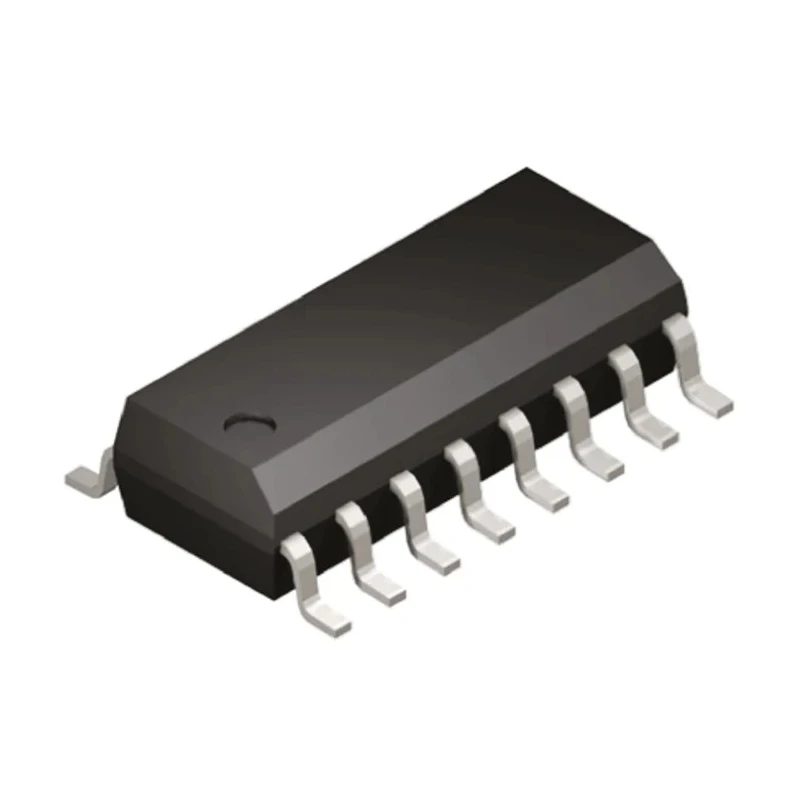

Analog Devices Digital to Analogue Converter Resistor String R-2R Architecture 8 bit Resolution Parallel Interface AD7524JRZ
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 8 bit |
| Brand | Analog Devices |
| Height | 1.75mm |
| Length | 10mm |
| Model | AD7524JRZ |
| Width | 4mm |
| Mount Type | Surface |
| Settling Time | 0.5μs |
| Sampling rate | 4Msps |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Interface Type | Parallel |
| Architecture | Resistor String, R-2R |
| Pin Count | 16 |
| Minimum Supply Voltage | 9V |
Key Features
- Supports a sampling rate of 4 Msps for rapid data conversion.
- Designed with a 16-pin Small Outline Integrated Circuit (SOIC) package.
- Operates within a supply voltage minimum of 9V for stable performance.
- Has a settling time of 0.5 microseconds ensuring quick signal stabilization.
- Supports an operating temperature range from -40°C to 85°C for versatility.
- External voltage reference is used for accurate output signal control.
- Compact dimensions of 10mm length, 4mm width, and 1.75mm height.
- Single channel design optimized for precision analogue output.
Product Description
Analog Devices AD7524JRZ is a digital to analogue converter featuring an 8 bit resolution and a resistor string (R-2R) architecture, delivered in a compact 16-pin SOIC package. It is engineered for industrial and laboratory applications requiring precise analogue signal generation from digital data inputs.
This device supports a high sampling rate of 4 Msps, enabling rapid processing suitable for instrumentation, signal processing, and control systems. It operates with a minimum supply voltage of 9V and exhibits a fast settling time of 0.5 microseconds to ensure quick and stable analog output responses.
The converter operates reliably across a temperature range of -40°C to 85°C, making it suitable for harsh industrial environments and automotive use (non-automotive standard). The external voltage reference input provides flexibility in output signal scaling and precision.
Physical attributes include a length of 10mm, width of 4mm, and height of 1.75mm, optimized for surface mounting on PCBs, supporting modern manufacturing processes. This device features a single channel and a parallel interface type that facilitates easy integration in embedded systems and digital control circuits.
This DAC is an essential component for electronic design in manufacturing, testing equipment, telecommunications, industrial automation, and instrumentation. Supports a sampling rate up to 4 Msps for high-speed data signal conversion.
Compact 16-pin SOIC surface mount package for efficient PCB integration. Wide operating temperature range suitable for industrial and laboratory environments. Fast settling time of 0.5 microseconds for quick response analog output.
External voltage reference allows customizable output accuracy. Single channel 8-bit resolution ideal for precise digital-to-analog conversion. Reliable operation with a minimum supply voltage of 9V. Parallel interface for straightforward signal interfacing.
Robust design to meet demanding semiconductor component standards. Suitable for use in signal processing, instrumentation, automotive electronics, and control systems. Explore more semiconductor components and Digital to Analogue Converters at EnvMart to enhance your electronic projects and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The AD7524JRZ has an 8-bit resolution, allowing for precise digital-to-analog conversion.
It supports a maximum sampling rate of 4 Msps, enabling rapid data conversion.
The settling time of this model is 0.5 microseconds, ensuring quick signal stabilization after a change in input.
The AD7524JRZ operates within a temperature range of -40°C to 85°C, making it suitable for various environments.
This digital to analogue converter is housed in a 16-pin Small Outline Integrated Circuit (SOIC) package.
It requires a minimum supply voltage of 9V for stable performance during operation.
It features a parallel interface, which facilitates straightforward integration into digital control circuits.
The dimensions of this model are 10mm in length, 4mm in width, and 1.75mm in height.
This device supports a single channel design optimized for analog output.
It employs a resistor string (R-2R) architecture for its digital to analog conversion process.
Yes, it utilizes an external voltage reference for accurate output signal control.
This model is suitable for applications in instrumentation, signal processing, and control systems.
