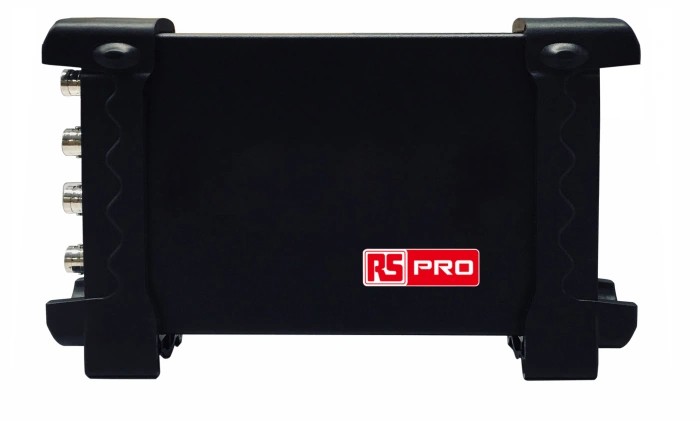

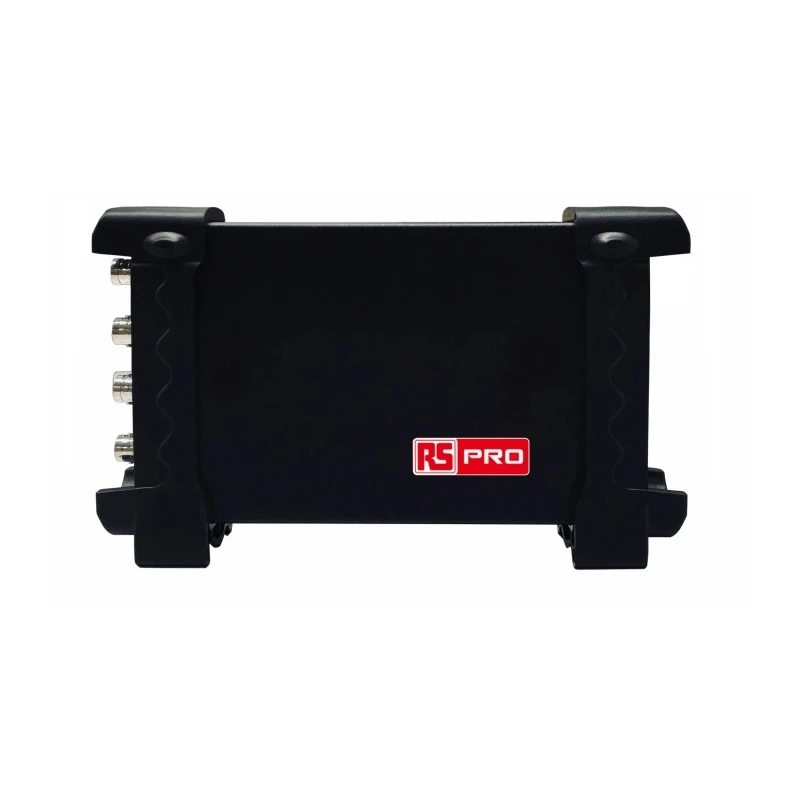

RS PRO 200 MHz PC Based PC Oscilloscope, 4 Channels 220-5866
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 220-5866 |
| Depth | 35mm |
| Operating System | Windows 7, Windows 8, Windows 10 |
| Bandwidth | 200MHz |
| Series | RS PRO |
| Plug Type | USB |
| Interfaces | USB oscilloscopes is the perfect plug and play solution to applications where mobility and flexibility for measurement is required |

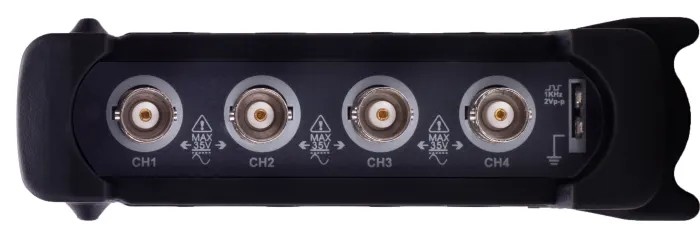

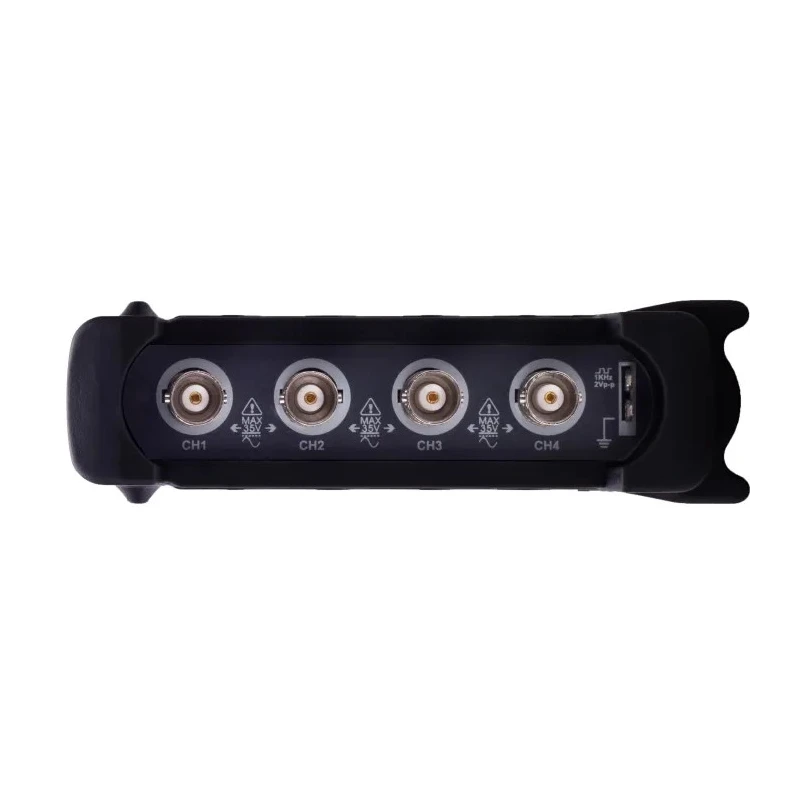

| Number Of Channels | 4 |
| Vertical Resolution | 8 bit |
| Rise Time | 1.8ns |
| Oscilloscope Type | PC Based |
| Minimum Vertical Sensitivity | 10V/div |
| Oscilloscope Form | Pc Based |
| Minimum Time Base | 2ns/div |
| Maximum Vertical Sensitivity | 2mV/div |
| Maximum Time Base | 100s/div |
| Bandwidth options available | 70 MHz to 250 MHz with 4 channels |
Key Features
- The device offers a real-time sampling rate of 1 GSa/s for accurate signal capture.
- Compact and portable design with anodised aluminium enclosure ensures durability and heat resistance.
- Features up to 20 automatic measurement functions including Pass/Fail checks and engineering fit functions.

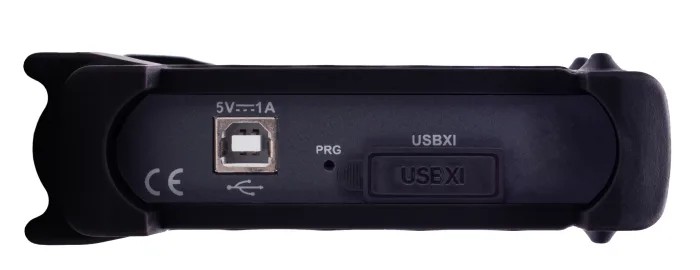

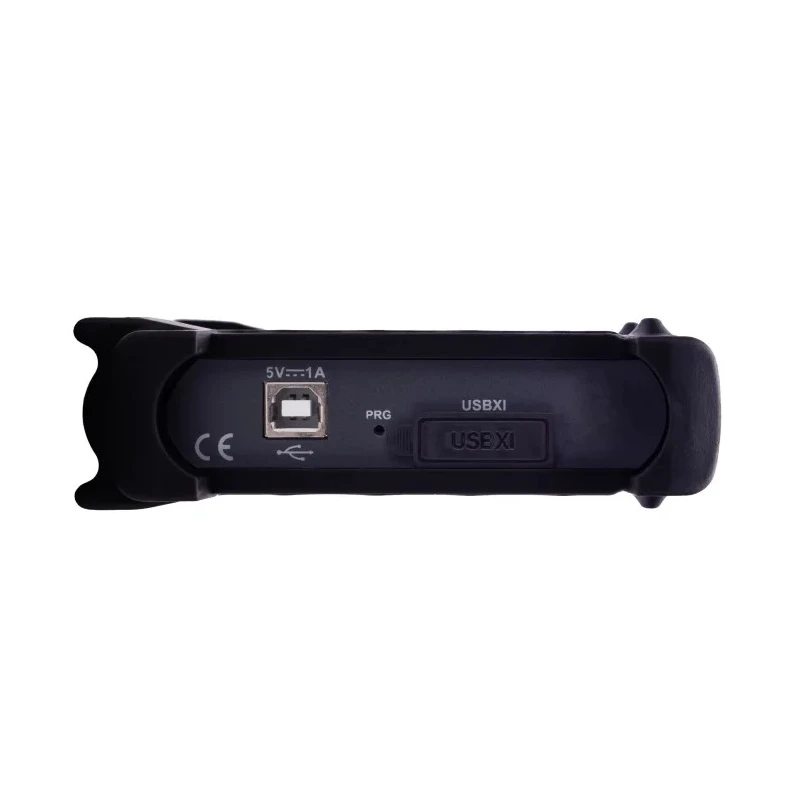

- Includes USB 2.0 interface allowing easy connection without external power supply.
- Compatible with Windows 7, 8, and 10 operating systems for flexible use.
- Active bandwidth options range from 70 MHz to 250 MHz across 4 channels for varied applications.
- Equipped with FFT spectrum analyser and waveform averaging for enhanced signal analysis.
- Supplied with USB cable, 60 MHz passive probe, Alligator Clip Cable, and installation CD with user manual.
Product Description
RS PRO 220-5866 PC Oscilloscope is a 200 MHz bandwidth, 4 channel PC-based oscilloscope designed for professional and industrial use. Powered via USB, this compact device replaces traditional benchtop oscilloscopes by offering ultimate portability combined with high performance. The anodised aluminium chassis provides excellent heat and abrasion resistance to withstand demanding environments.
This oscilloscope offers 1 GSa/s real-time sampling rate and features over 20 automatic measurement functions, including Pass/Fail and engineering specific checks, facilitating precise and reliable waveform analysis. Its FFT spectrum analyser and waveform averaging functions enhance signal clarity and measurement accuracy.
Equipped with USB 2.0 interface, RS PRO 220-5866 requires no external power and can be easily connected to a PC or laptop running Windows 7, 8, or 10, making it ideal for flexible testing setups in various industrial, laboratory, automotive, and electronic applications.
Applications include circuit measurement, wind and photovoltaic power testing, automotive electronics diagnostics, and power system analysis. Multiple units can be connected simultaneously to expand total available channels for complex testing scenarios.
The oscilloscope features a compact and lightweight design that enhances portability without compromising measurement quality. The anodised aluminium case offers durability and professional aesthetics. Wide bandwidth range and 4 digital channels provide versatile testing capabilities.
Automatic measurement functions simplify complex analyses for efficient workflow. USB connection eliminates the need for additional power sources, improving convenience. The supplied accessories enable immediate deployment and ease of use.
Compatibility with common Windows operating systems ensures broad user accessibility.
The RS PRO 220-5866 oscilloscope is suitable for professionals in electronics manufacturing, R&D laboratories, HVAC testing, automotive diagnostics, and other industrial measurement tasks. Explore the full RS PRO Oscilloscope range and accessories on EnvMart to find the perfect solution for your testing requirements.
