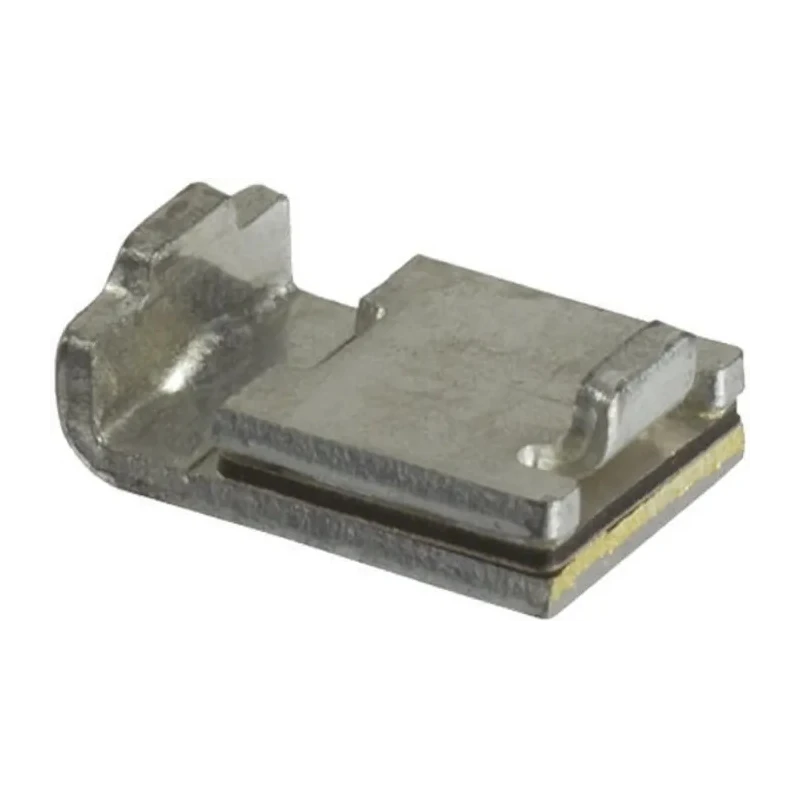

Littelfuse 0.75 A Resettable Fuse 30V Surface Mount Technology SMD075F-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | Littelfuse |
| Height | 3.18mm |
| Length | 7.98mm |
| Model | SMD075F-2 |
| Width | 5.44mm |
| Maximum Operating Temperature | 85°C |
| Trip Current | 1.5A |
| Power Dissipation | 1.7W |
| Terminal Material | Tin Plated |
| Time to Trip | 0.3s |
| Hold Current | 0.75A |
| Minimum Resistance | 0.35Ω |
| Maximum Resistance | 1Ω |
| • SMD - Hold current 0.3 - 1.25A | 7555 (metric) 2920 (Imperial) |
| • SMD2 - Hold current 1.5 - 2.5A | 8763 (metric) 3425 (Imperial) |
| SMD polyswitch resettable fuse,0.75ABrand | TE Connectivity |
Key Features
- Designed for automatic reset after fault conditions cease.
- Compact size suitable for various electronic applications.
- High reliability with maintenance-free operation for thousands of cycles.
- Tin-plated terminal material ensures good conductivity and corrosion resistance.
- Withstands maximum operating temperature of 85°C for durability.
- Power dissipation rating of 1.7W optimizes performance in compact form factor.
- Ideal for protecting security systems, power supplies, automotive, and medical equipment.
- Features rapid switching from low to high resistance under overload conditions.
Product Description
Littelfuse SMD075F-2 is a 0.75 A resettable fuse designed for protecting electrical and electronic circuits against excessive currents. The 30V rated fuse uses surface mount technology (SMT) ensuring compactness and suitability for high-density electronic boards.
This fusible device switches quickly from a low resistance state to a high resistance state during overload or short circuit conditions, automatically resetting once the fault condition is removed and power is restored. This maintenance-free design enables thousands of reset cycles, making it highly reliable for long-term applications.
With dimensions of 7.98 mm length, 5.44 mm width, and 3.18 mm height, it is suitable for use in various electronic configurations. Tin-plated terminals provide excellent conductivity and corrosion resistance. It has a power dissipation rating of 1.7W and can operate safely at temperatures up to 85°C.
Common industrial applications include security systems, power supplies and transformers, automotive and medical equipment, instrumentation and control systems, computers, peripherals, audio-visual, and telecommunications equipment.
Automatic reset ensuring protection without fuse replacement. Compact surface mount footprint suitable for modern electronics. High hold current reliability and rapid trip time of 0.3 seconds. Tin-plated terminals for durability and conductivity.
Power dissipation of 1.7W supports efficient circuit operation. This Littelfuse resettable fuse is an essential component in industrial, commercial, and consumer electronic circuit protection. Explore more products in the Resettable Fuse category for reliable circuit protection solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this model is 0.75 A, which indicates the maximum current it can continuously carry without tripping.
This resettable fuse can operate safely at a maximum temperature of 85°C.
The trip current for the SMD075F-2 is 1.5 A, which is the current level that will cause the fuse to switch to a high resistance state.

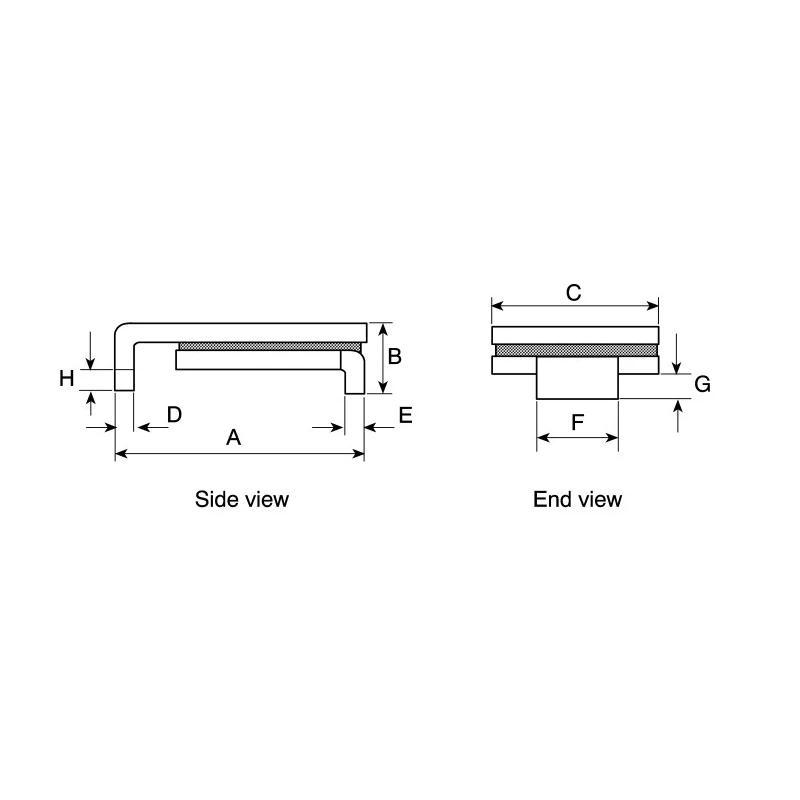

The dimensions of this model are 7.98 mm in length, 5.44 mm in width, and 3.18 mm in height.
The power dissipation rating of the Littelfuse SMD075F-2 is 1.7 W, optimizing its performance in a compact form factor.
This model has a rapid trip time of 0.3 seconds when an overload condition occurs.
It features tin-plated terminals, which ensure good conductivity and corrosion resistance.
Common applications include security systems, power supplies, automotive, medical equipment, and telecommunications equipment.
The minimum resistance is 0.35 Ω and the maximum resistance is 1 Ω when in the tripped state.
The automatic reset feature allows the fuse to reset itself after the fault condition is removed, eliminating the need for manual replacement.
This resettable fuse is manufactured in India.
The voltage rating for this resettable fuse is 30 V, making it suitable for various electronic applications.
