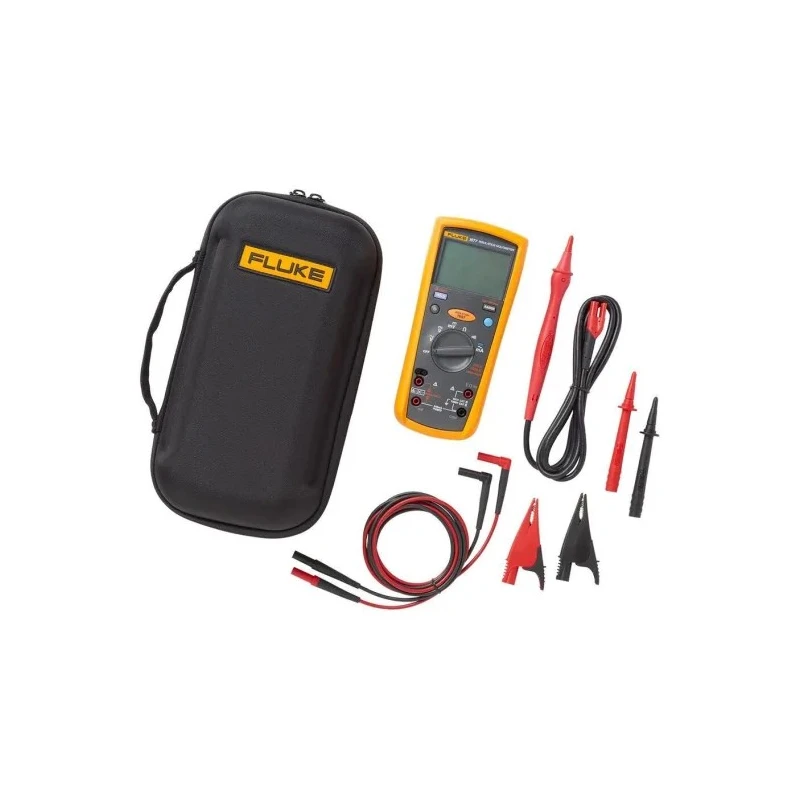

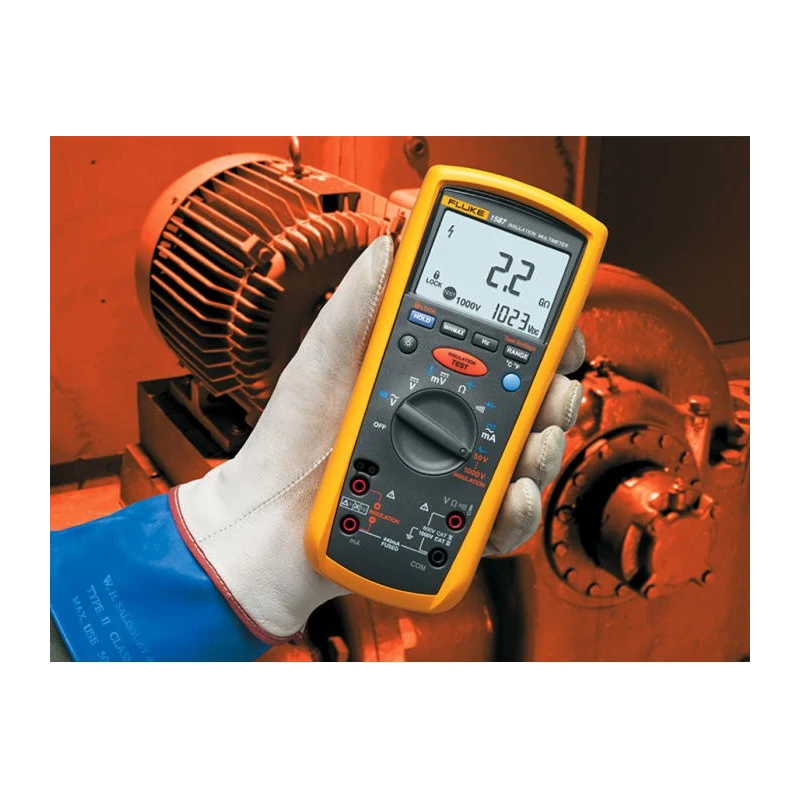

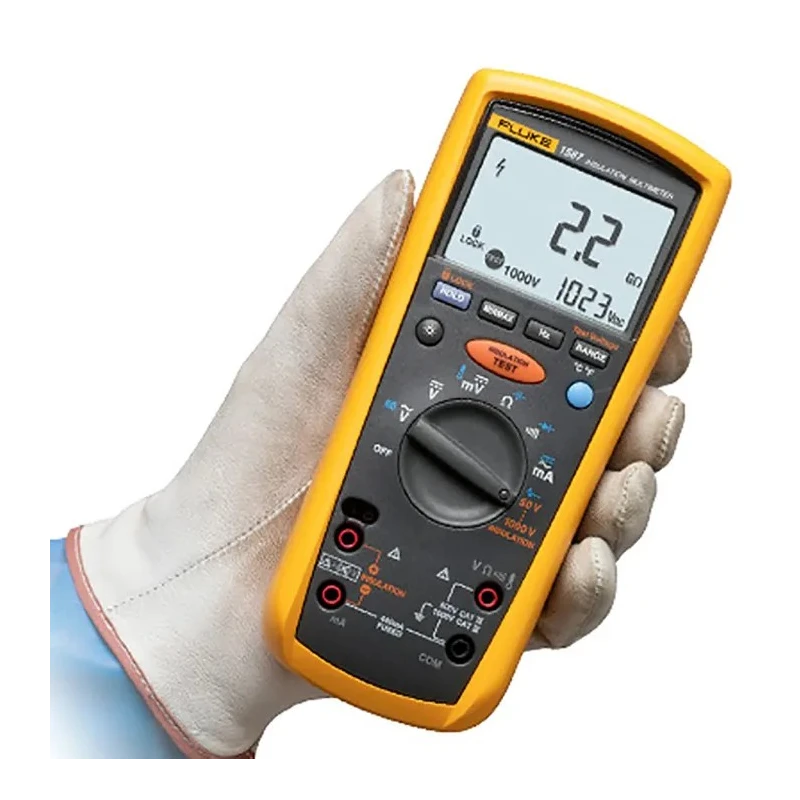

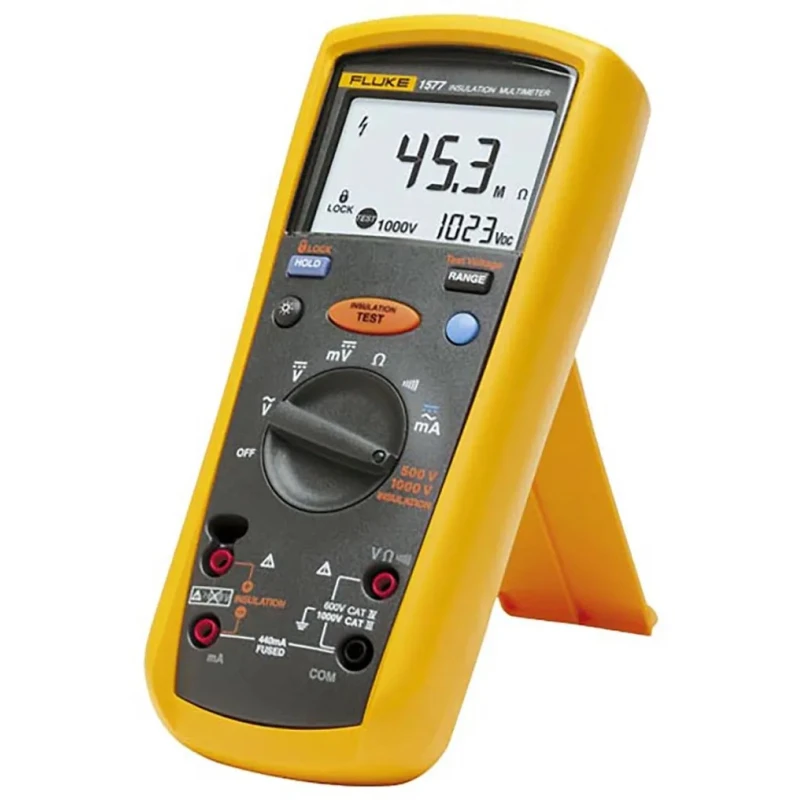

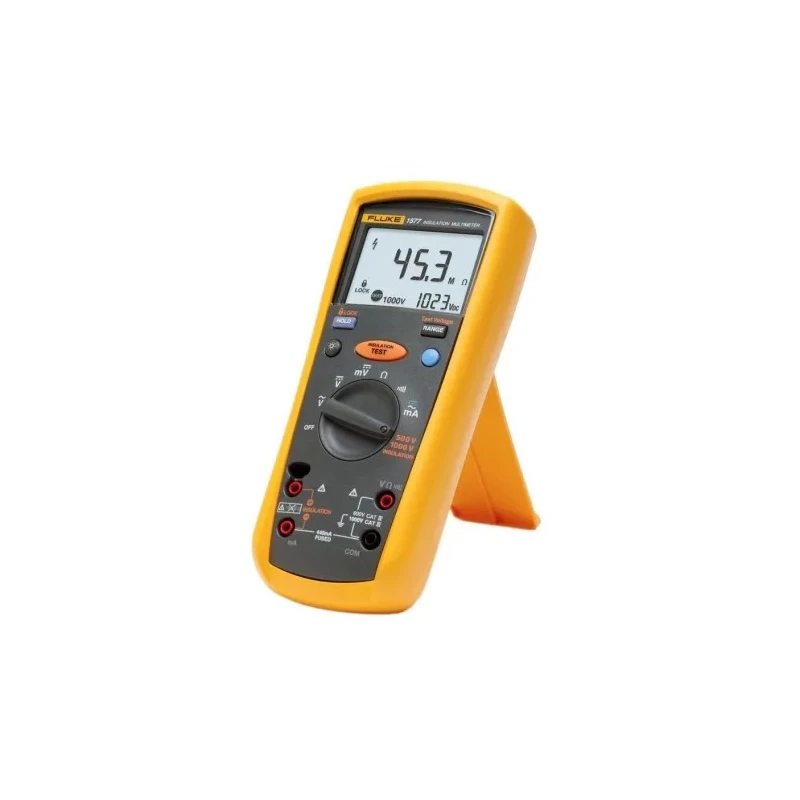

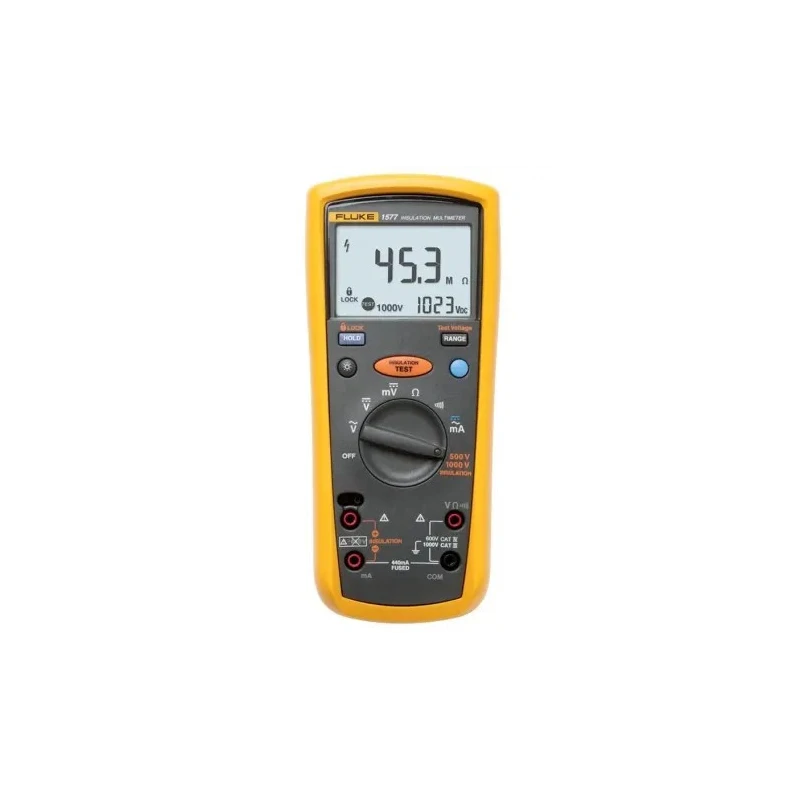

Fluke Insulation Multimeter 500 V Min, 1 kV Max, 2 GΩ, CAT III CAT IV FLUKE-1577

Free Delivery in India | Lowest Global Shipping Charges

Fluke Insulation Multimeter 500 V Min, 1 kV Max, 2 GΩ, CAT III CAT IV FLUKE-1577

Name: Fluke Insulation Multimeter 500 V Min, 1 kV Max, 2 GΩ, CAT III CAT IV FLUKE-1577
Brand: FLUKE
SKU: 337733
Price: 1457.27 USD
Availability: InStock



Category Insulation Tester Brand FLUKE Condition New

Specifications

Country of Origin	United States
Display Type	LCD
Brand	Fluke
Battery Life	1000h
Battery type	Alkaline
Height	50mm
Length	203mm
Model	FLUKE-1577
Gross Weight	550g
Width	100mm
Maximum Operating Temperature	55°C
Tester Type	Insulation Multimeter
Minimum Operating Temperature	-20°C
Test Current	1mA
Minimum test Voltage	500V
Standards/Approvals	IEC 61010-1
Safety Category Level	CAT III, CAT IV
Safety Category Voltage	1, 600kV
Maximum Test Voltage	1kV
Insulation Testing Resistance	2GΩ
Fluke 1503 Insulation Tester, 500 V Min, 1 kV Max, 2000 mΩ CAT IV, CAT IIIBrand	Fluke

Key Features

Offers high maximum test voltage of 1 kV for rigorous insulation testing.
Measures insulation resistance up to 2 GΩ with 1 mA test current to minimize circuit loading.
Equipped with clear LCD for accurate readings in diverse lighting conditions.
Battery powered by alkaline cells enabling up to 1000 hours of operation.
Complies with IEC 61010-1 safety standard ensuring reliable use in industrial environments.
Rated for CAT III at 1 kV and CAT IV at 600 V safety categories for live-system testing.
Compact dimensions and lightweight design (203 mm x 100 mm x 50 mm; 550 g) for easy portability.
Operates reliably in temperatures from -20°C to 55°C suited for outdoor and indoor applications.

Product Description

Fluke FLUKE-1577 Insulation Multimeter is a precision battery-powered insulation tester designed for electrical systems testing. It offers selectable test voltages from 500 V minimum to a maximum of 1 kV and insulation resistance measurement up to 2 GΩ. The unit features an easy-to-read LCD display and provides a test current of 1 mA to reduce circuit loading during measurement.

Built for professional use in industrial, laboratory, and site diagnostics, this device conforms to IEC 61010-1 safety standards and is rated for CAT III at 1 kV and CAT IV at 600 V, enabling safe operation on live electrical installations within these categories.

The Fluke 1577 is compact and lightweight, measuring 203 mm in length, 100 mm in width, and 50 mm in height, weighing 550 grams. It is powered by alkaline batteries providing up to 1000 hours of continuous use, operating reliably in temperature ranges between -20°C and 55°C.

This instrument is ideally suited for maintenance on low-voltage distribution networks, commissioning high-voltage insulation systems, on-site electrical equipment verification, and troubleshooting insulation degradation in motors. It is also compatible with portable test kits for comprehensive industrial safety inspections.

High test voltage capacity up to 1 kV for thorough insulation stress testing. Low 1 mA test current minimizes interference to circuits during insulation resistance checks. Clear LCD display ensures accurate readings in diverse environmental conditions.

Long-lasting alkaline battery power with 1000 hours operational life. IEC 61010-1 safety compliant, with CAT III 1 kV and CAT IV 600 V safety ratings. Lightweight and portable design supports mobility for field technicians.

Wide operating temperature range suitable for indoor and outdoor applications. Multi-purpose insulation tester for electrical maintenance, commissioning, verification, and troubleshooting. Discover more top-quality electrical testing instruments under the Insulation Tester category on EnvMart for your industrial and laboratory needs.
