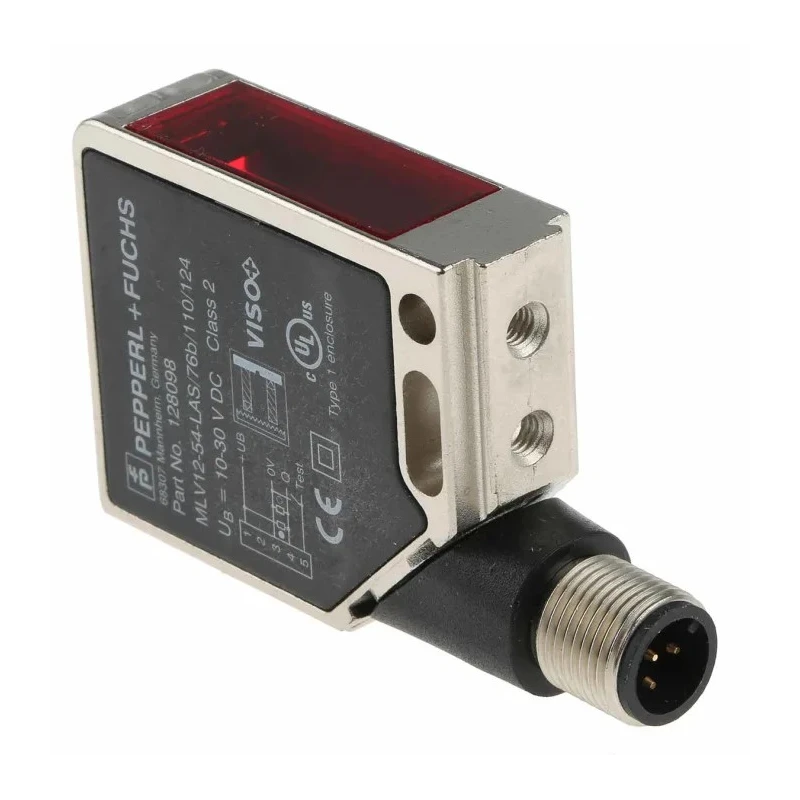

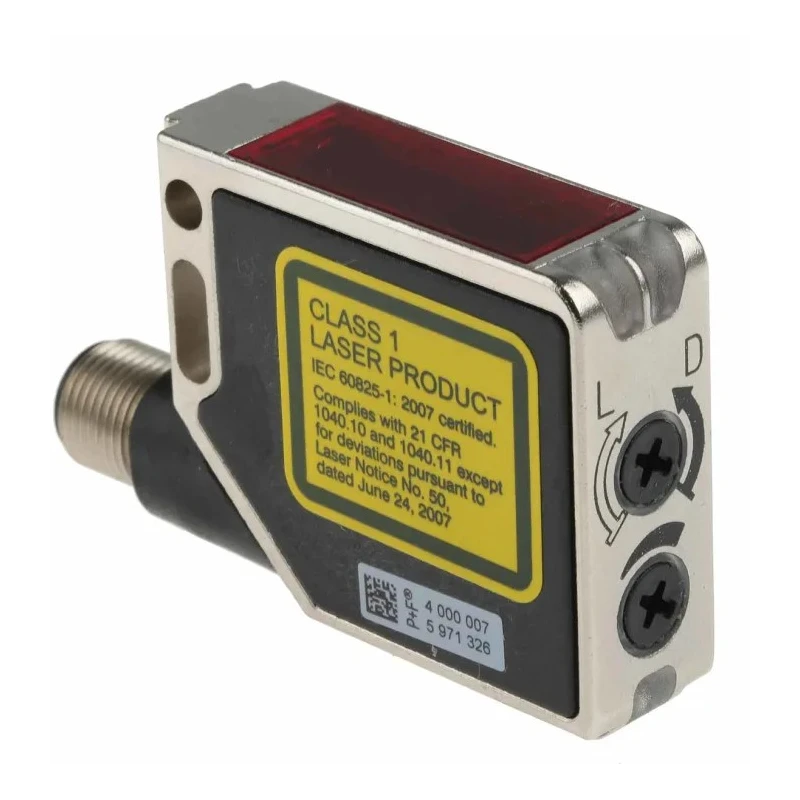

Pepperl + Fuchs Retroreflective Photoelectric Sensor Block Style 15 m Detection Range Push Pull MLV12-54-LAS/76B/110/124

Pepperl + Fuchs MLV12-54-LAS/76B/110/124 is a high-precision retroreflective Photoelectric Sensor designed for industrial automation applications. It provides reliable metal detection with a 15-meter sensing range using laser light, ensuring accuracy even in challenging environments.

The sensor features a block-style form factor with a robust nickel plated zinc die cast housing rated to IP67, protecting it from dust and water ingress. It supports push-pull output capable of 200 mA current, which enhances noise immunity during switching operations. The interface employs an M12, 5-pin connector for straightforward integration into control systems.

Designed for industrial use, the sensor operates within ambient temperatures from -10°C to +50°C and incorporates an automatic sensitivity adjustment through a convenient 'TEACH IN' mechanism to set optimal detection points. Multifunction inputs and control test options enable flexible configuration and maintenance monitoring.

This model includes failure warning outputs that provide static or dynamic signals for enhanced safety and system diagnostics. The sensor incorporates visible red pulsed laser light at 650 nm for precise alignment and monitoring during installation and operation. Multiple devices can be installed without mutual interference due to advanced design features.

The Pepperl + Fuchs MLV12-54-LAS/76B/110/124 complies with UL, CCC, and EAC certifications, ensuring it meets international safety and quality standards. It is suitable for a wide range of industrial sectors including manufacturing, material handling, automation, and process control where accurate metal detection is required.

The sensor uses laser light for precise detection of metal materials up to 15 meters. Equipped with push-pull output type for robust switching performance and noise immunity. Rated IP67 for high protection against dust and water, suitable for harsh environments.

M12, 5-pin connector ensures secure and efficient connectivity in control setups. Operates reliably in temperatures ranging from -10°C to +50°C. Automatic sensitivity adjustment via 'TEACH IN' for easy setup and accuracy.

Offers multifunction input and control test capabilities for flexible functionality. Failure warning output enhances system reliability with static and dynamic indications. Durable nickel plated zinc die cast housing for industrial robustness and longevity.

Certified with UL, CCC, and EAC standards ensuring safety and compliance. Explore the comprehensive line of Pepperl + Fuchs sensors and automation products at EnvMart for precision and reliability in industrial sensing applications.
